Xerox VersaLink B7030

April 2017
5-36
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 12.20
Launch Issue
Parts Lists

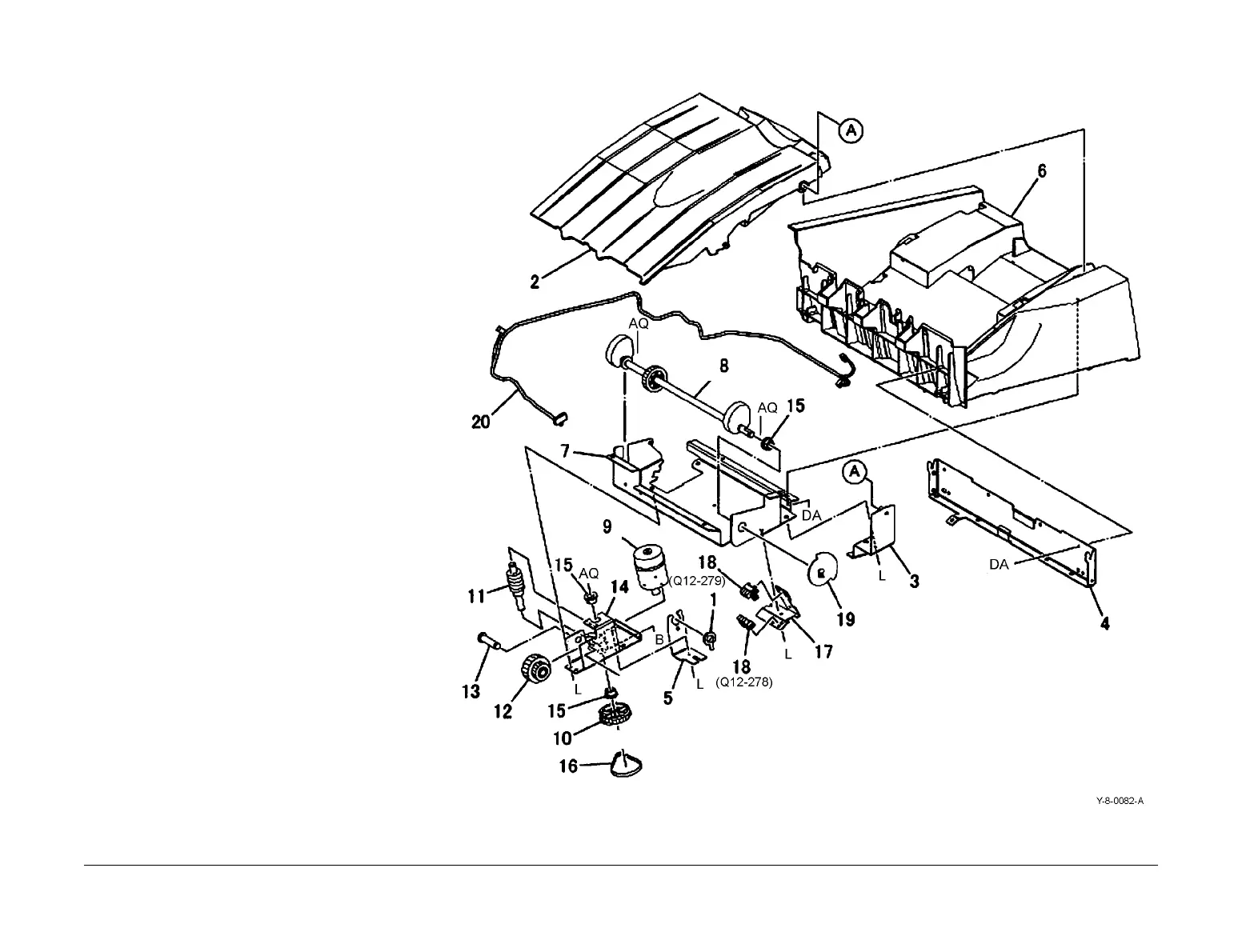

PL 12.20 Integrated Office Finisher
Stacker Tray Assembly
Item Part Description
1 – Bearing (Not Spared)
2 – Top tray (Not Spared)
3 – Bracket (Not Spared)
4 – Plate (Not Spared)
5 – Bracket (Not Spared)
6 – Base tray (Not Spared)
7 – Base bracket (Not Spared)
8 – Stacker shaft assembly (Not
Spared) (REP 12.16)
9 – Stacker motor (MOT12-060) (Not
Spared) (REP 12.17)
10 – Pulley (60T) (Not Spared)
11 – Worm gear (Not Spared)
12 – Gear (16T/32T) (Not Spared)
13 – Stud (Not Spared)
14 – Bracket (Not Spared)
15 – Bearing (Not Spared)
16 – Belt (Not Spared)
17 – Bracket (Not Spared)
18 930W00111 Stack sensor 1 (Q12-278)/stack
sensor 2 (Q12-279) (REP 12.18)
19 – Actuator (Not Spared)
20 – Wire harness (Not Spared)
