Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.1
Repairs and Adjustments
Launch Issue
REP 5.1 DADF Removal
Parts List on PL 5.05
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. If a new DADF is to be installed, if possible, record the current software level by either:
• Printing the configuration report, GP 14.
• From the user interface Home screen, touch Device, then About. Scroll down to view
the Software Version.
2. Remove the upper rear cover, REP 28.5.

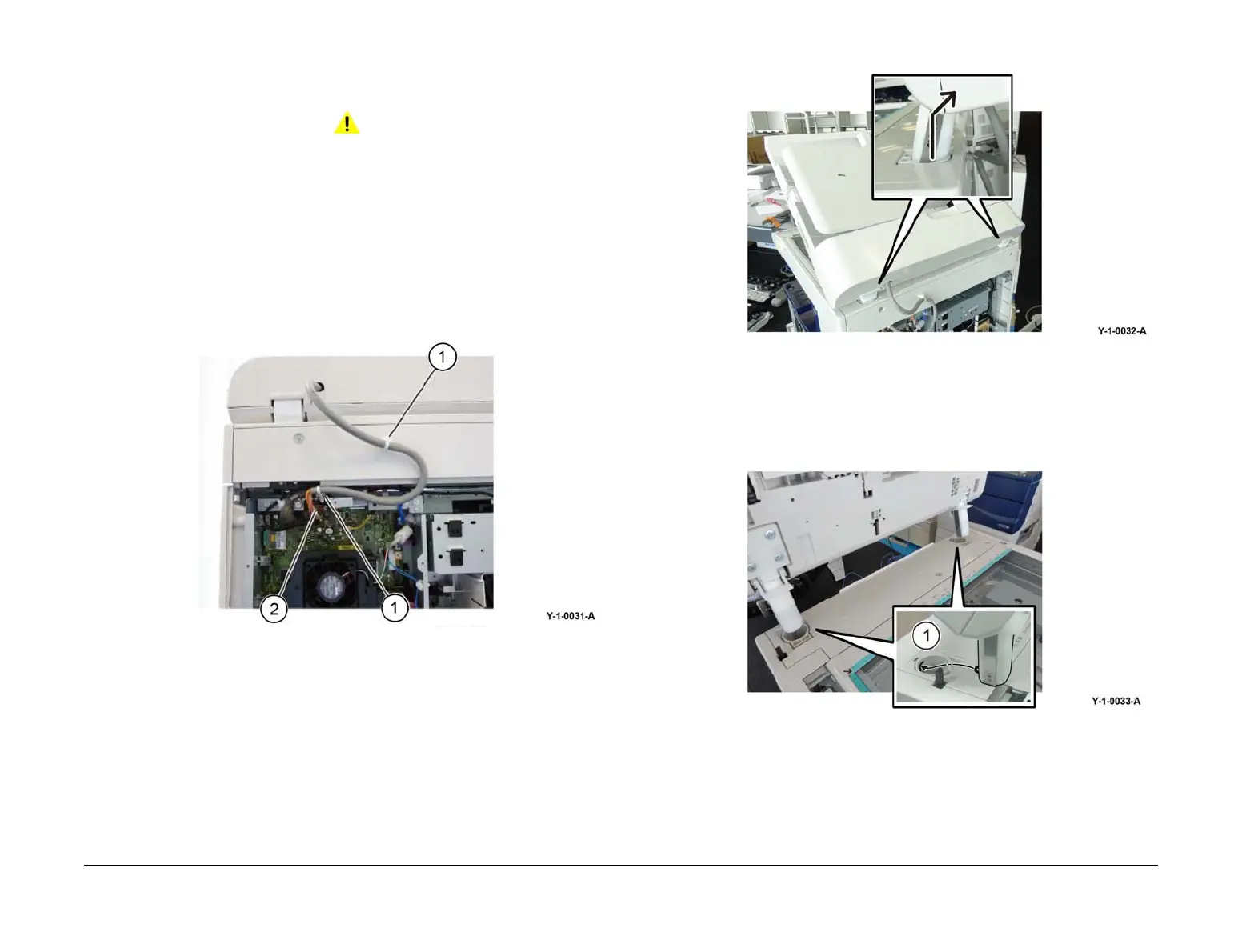

3. Disconnect the cable clamps (1), then the connector (2), Figure 1.
Figure 1 Connector
4. Remove the DADF, Figure 2.
Figure 2 DADF removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Install the DADF by inserting the tabs of the counter balance into the grooves of the instal-
lation holes (1), Figure 3.
Figure 3 DADF replacement
