Xerox VersaLink B7030 Service Manual

April 2017
5-15
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.35
Parts Lists
Launch Issue

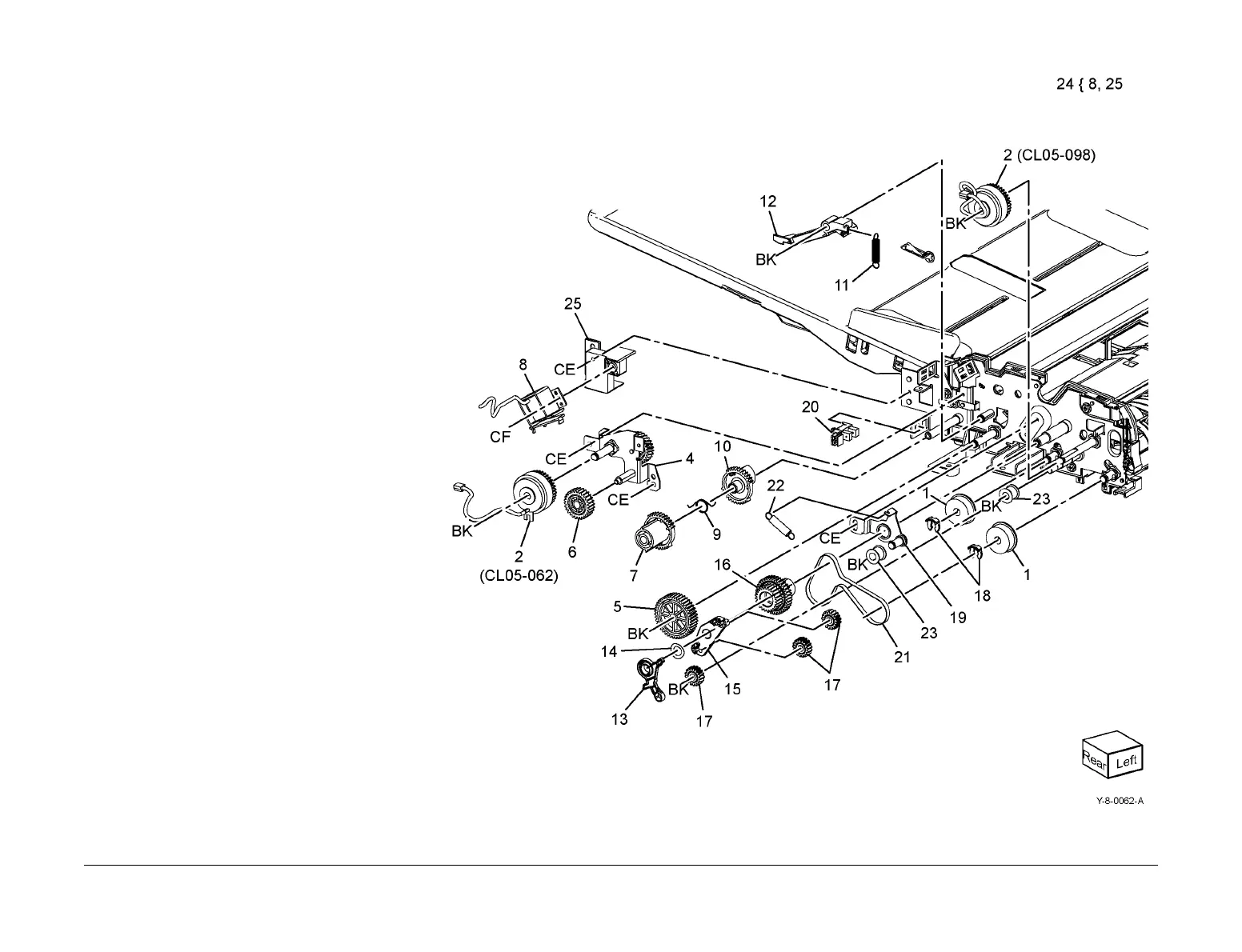

PL 5.35 DADF Feeder Rear Frame
Item Part Description
1 – Registration pulley (Not Spared)
2 121K52310 DADF feed clutch (CL05-062)/
takeaway clutch (CL05-098)
3 – Not used
4 – Clutch gear bracket assembly (Not
Spared)
5 – Exit gear (Not Spared)
6 – Exit gear idler (Not Spared)
7 – Lock gear (Not Spared)
8 – Exit nip release solenoid (SOL05-
072) (P/O PL 5.35 Item 23)
9 – Gear cam spring (Not Spared)
10 – Cam gear (Not Spared)
11 – Link invert spring (Not Spared)
12 – Set link (Not Spared)
13 – Stopper link (Not Spared)
14 – Idler spring (Not Spared)
15 – Idler gear bracket (Not Spared)
16 – Gear pulley (Not Spared)
17 – Gear idler T17 (Not Spared)
18 – KL ring (Not Spared)
19 – Tension bracket assembly (Not
Spared)
20 930W00121 DADF home position sensor (S05-
234)
21 – DADF drive belt (REP 5.13)
22 – Tension spring (Not Spared)
23 – Roller (Not Spared)
24 121K57710 Nip release solenoid assembly
25 – Solenoid bracket (P/O PL 5.35 Item
23)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
