Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.25
Parts Lists
Launch Issue

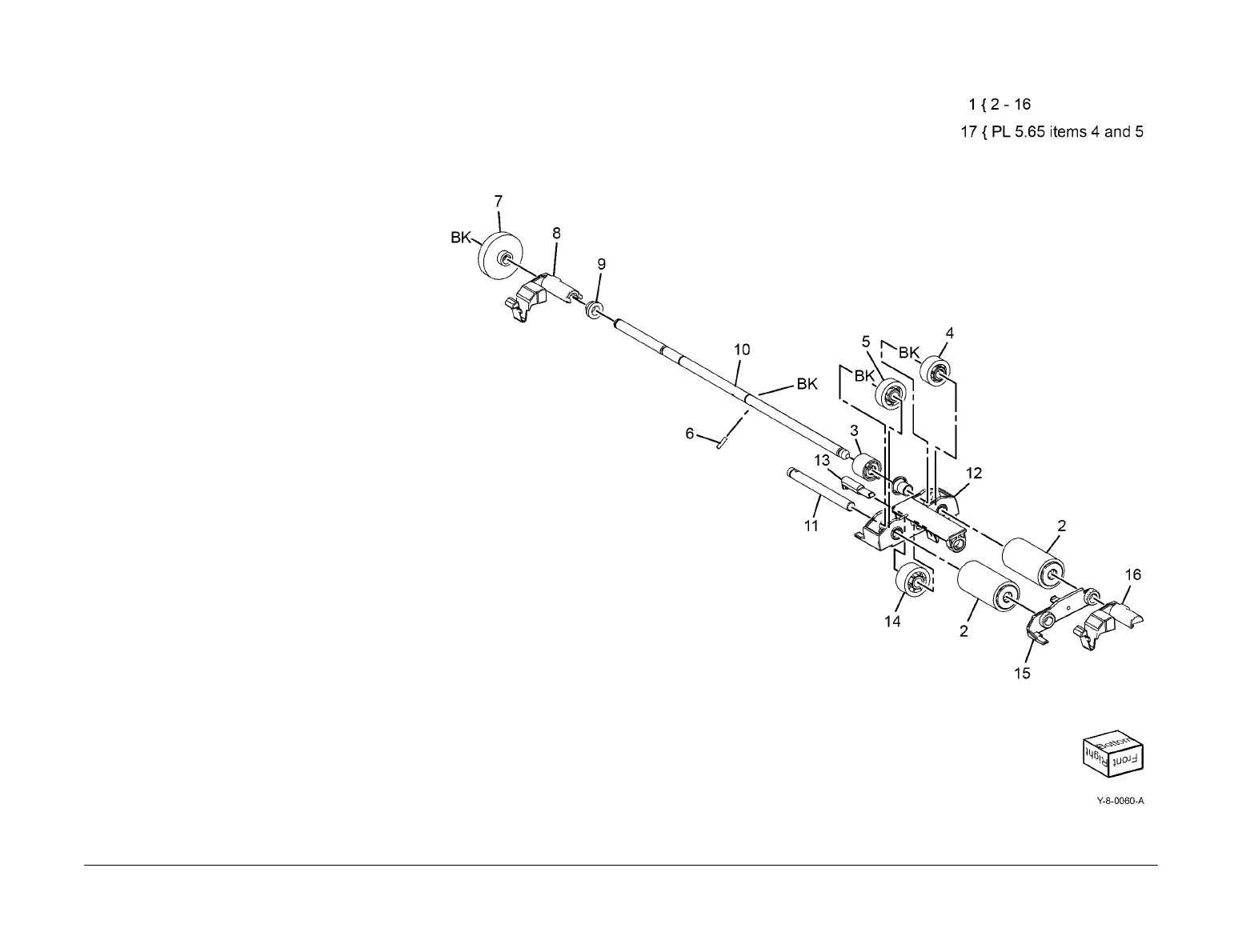

PL 5.25 Feed Roll Nudger Roll
Assembly
Item Part Description
1 – Feed roll nudger roll assembly (Not
Spared)
2 – Feeder roll assembly (P/O PL 5.65
Item 22) (see NOTE) (REP 5.10)
3 – Brake assembly (P/O PL 5.25 Item
1)
4 – Feed gear (P/O PL 5.25 Item 1)
5 – Feed idler gear (P/O PL 5.25 Item
1)
6 – TL pin (P/O PL 5.25 Item 1)
7 – Feed gear (P/O PL 5.25 Item 1)
8 – Feed rear handle (P/O PL 5.25 Item
1)
9 – Bearing (P/O PL 5.25 Item 1)
10 – Feed shaft assembly (P/O PL 5.25
Item 1)
11 – Nudger shaft assembly (P/O PL
5.25 Item 1)
12 – Nudger housing (P/O PL 5.25 Item
1)
13 – Idler pin (P/O PL 5.25 Item 1)
14 – Nudger gear (P/O PL 5.25 Item 1)
15 – Nudger CRU housing (P/O PL 5.25
Item 1)
16 – Feed front handle (P/O PL 5.25
Item 1)
17 – DADF feeder kit (Not Spared)
NOTE: HFSI. To reset the HFSI counter, refer to dC135.
