April 2017
5-116
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.35
Launch Issue
Parts Lists

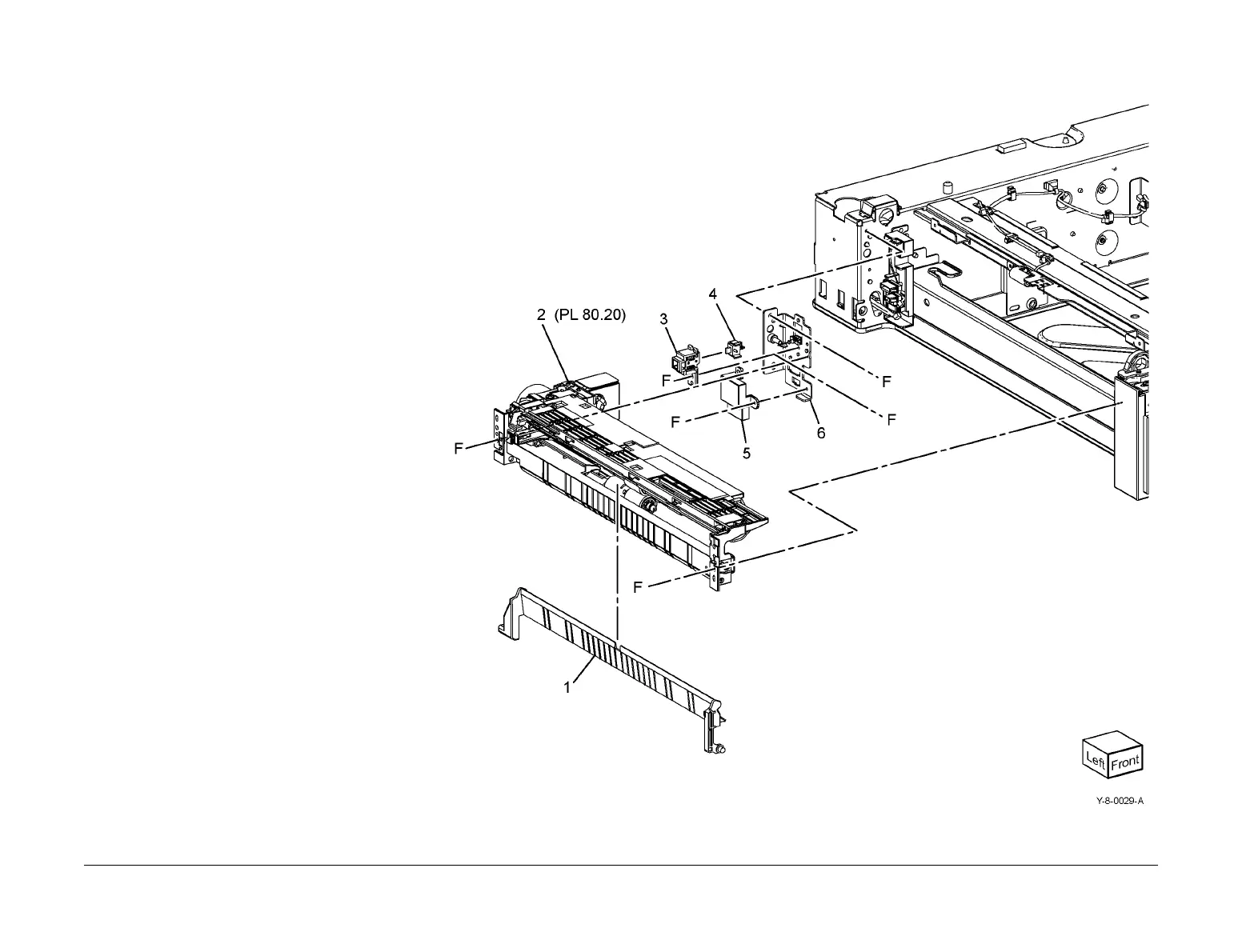

PL 80.35 STM Feeder
Item Part Description
1 054E33803 Feed chute
2 859K09730 Tray 2 feeder assembly (See
NOTE)
3 – IL cover (Not Spared)
4 110E12220 TM left hand interlock switch (S77-
306)
5 – ESD STM cover (Not Spared)
6 – Latch bracket assembly (Not
Spared)
NOTE: HFSI. To reset the HFSI count, refer to dC135.
