Xerox VersaLink B7030 Service Manual

April 2017
4-96
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.2, REP 13.3
Launch Issue
Repairs and Adjustments
Replacement
1. Insert the hole punch assembly rear locating pin into the H-transport frame.
2. The replacement is the reverse of the removal procedure.
3. Perform ADJ 13.1 Finisher LX Hole Punch Position.
REP 13.3 H-Transport Belt
Parts List on PL 13.08
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the H-transport assembly, REP 13.1.
2. Remove the H-transport rear cover, PL 13.06 Item 9.
3. Remove the H-transport belt, Figure 1:
a. Loosen two screws to release the belt tension (1).
b. Remove the belt (2).

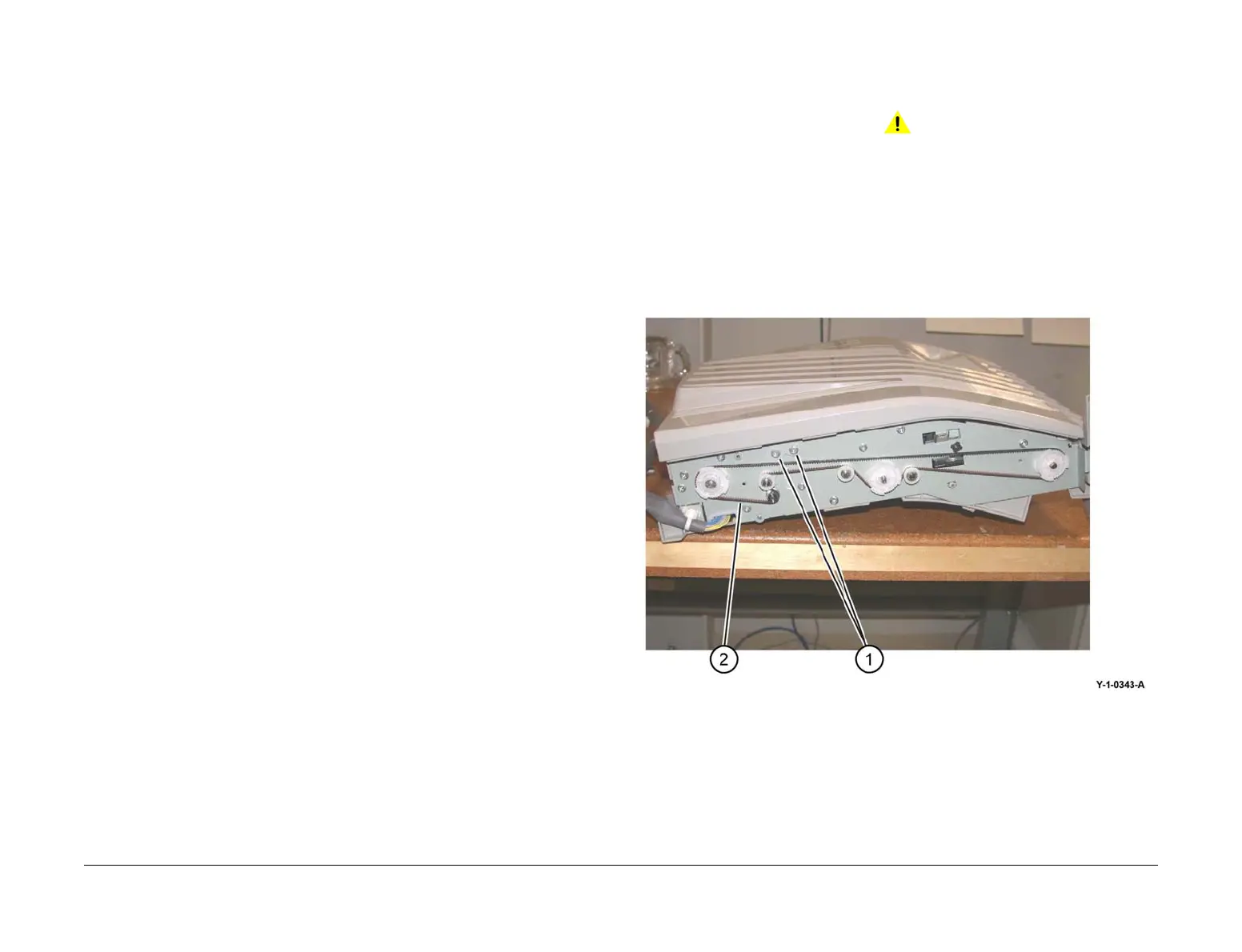

Figure 1 H-transport belt removal
Replacement
The replacement is the reverse of the removal procedure.

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
