Xerox VersaLink B7030

April 2017
5-69
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 40.10
Parts Lists
Launch Issue

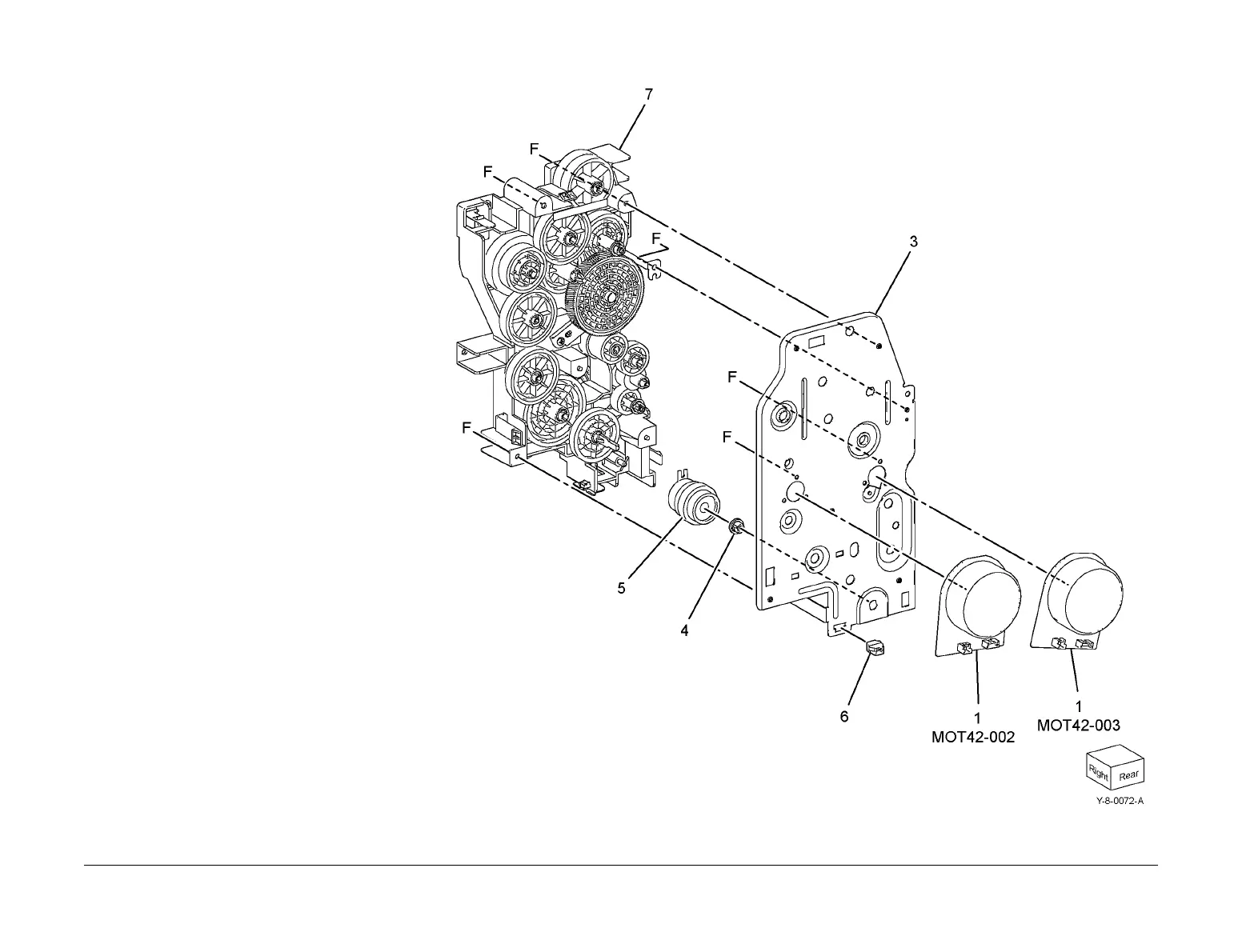

PL 40.10 Drive Component
Item Part Description
1 127K73052 Main motor (MOT42-003), drum
motor (MOT42-002)
2 – Not used
3 – Motor plate assembly (Not Spared)
4 413W11660 Lock bearing (REP 70.12)
5 121K56550 Takeaway clutch (CL77-001) (REP
70.12)
6 – Connector (Not Spared)
7 – Drive assembly (REF: PL 40.05
Item 1)
