April 2017
4-130
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.36, REP 13.37
Launch Issue
Repairs and Adjustments
REP 13.36 Booklet Left Cover
Parts List on PL 13.50
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the booklet maker from the finisher, REP 13.31.
2. Remove the booklet maker left cover:
a. Align the slots at the front and rear of the booklet maker left cover with the flats on
the mounting pins.
b. Move the booklet maker left cover by allowing the flats on the mounting pins to slide
through the slots in the cover.
Replacement
The replacement is the reverse of the removal procedure.
REP 13.37 Booklet Front/Rear Stapler
Parts List on PL 13.60 and PL 13.65
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the booklet maker from the finisher, REP 13.31.

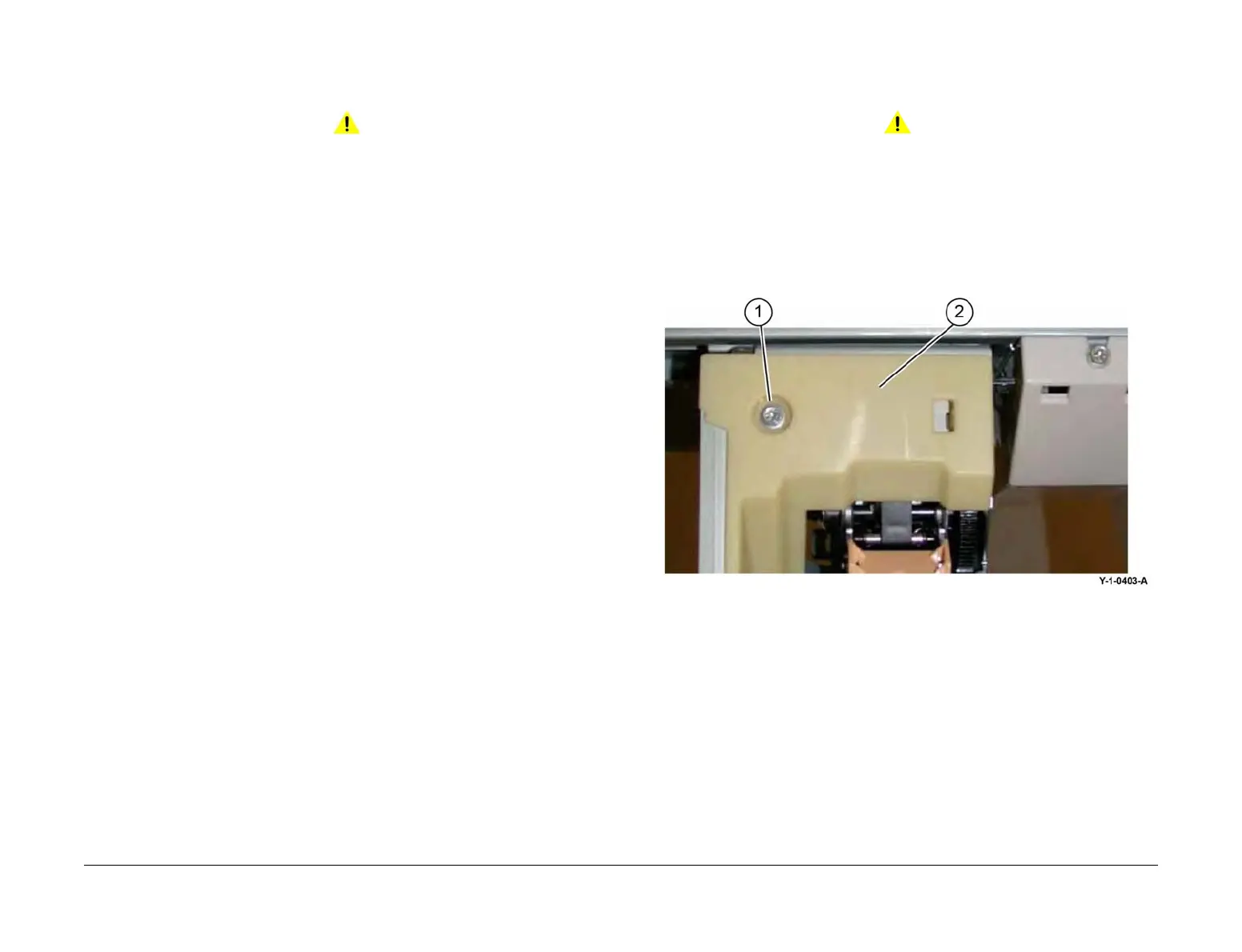

2. Remove the stapler guide, Figure 1:
a. Remove the screw (1).
b. Remove the stapler guide (2).
Figure 1 Stapler guide removal
To Next Page
