Xerox VersaLink B7030 Service Manual

April 2017
4-131
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.37
Repairs and Adjustments
Launch Issue
3. Remove the stapler lower cover, Figure 2:
a. Remove the screw (1).
b. Remove the stapler lower cover (2).

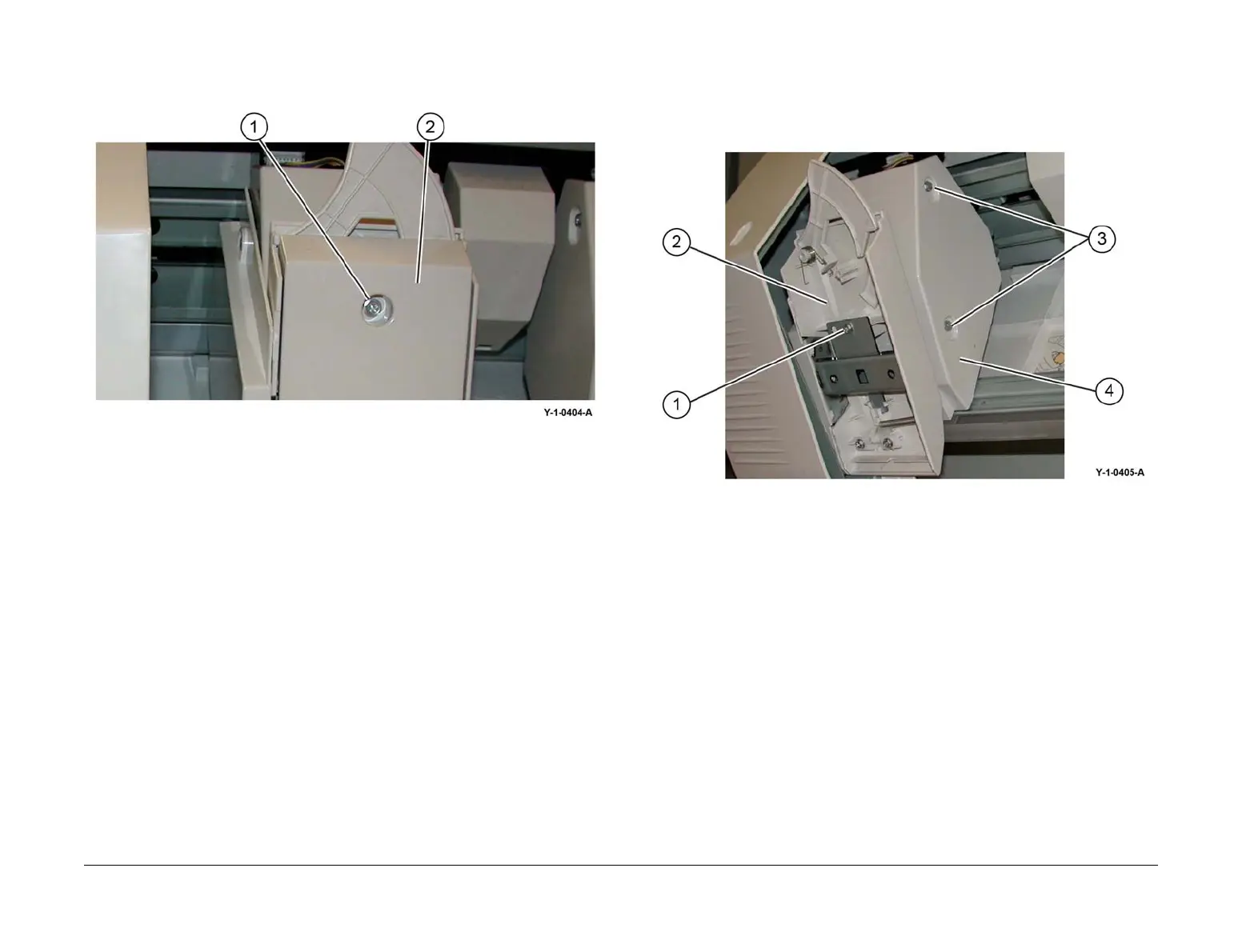

Figure 2 Stapler lower cover removal
4. Prepare to remove the stapler, Figure 3:
a. Remove the screw (1).
b. Remove the chute (2).
c. Remove both screws (3).
d. Remove the stapler rear cover (4).
Figure 3 Preparation
