Xerox VersaLink B7030 Service Manual

April 2017
5-107
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.95
Parts Lists
Launch Issue

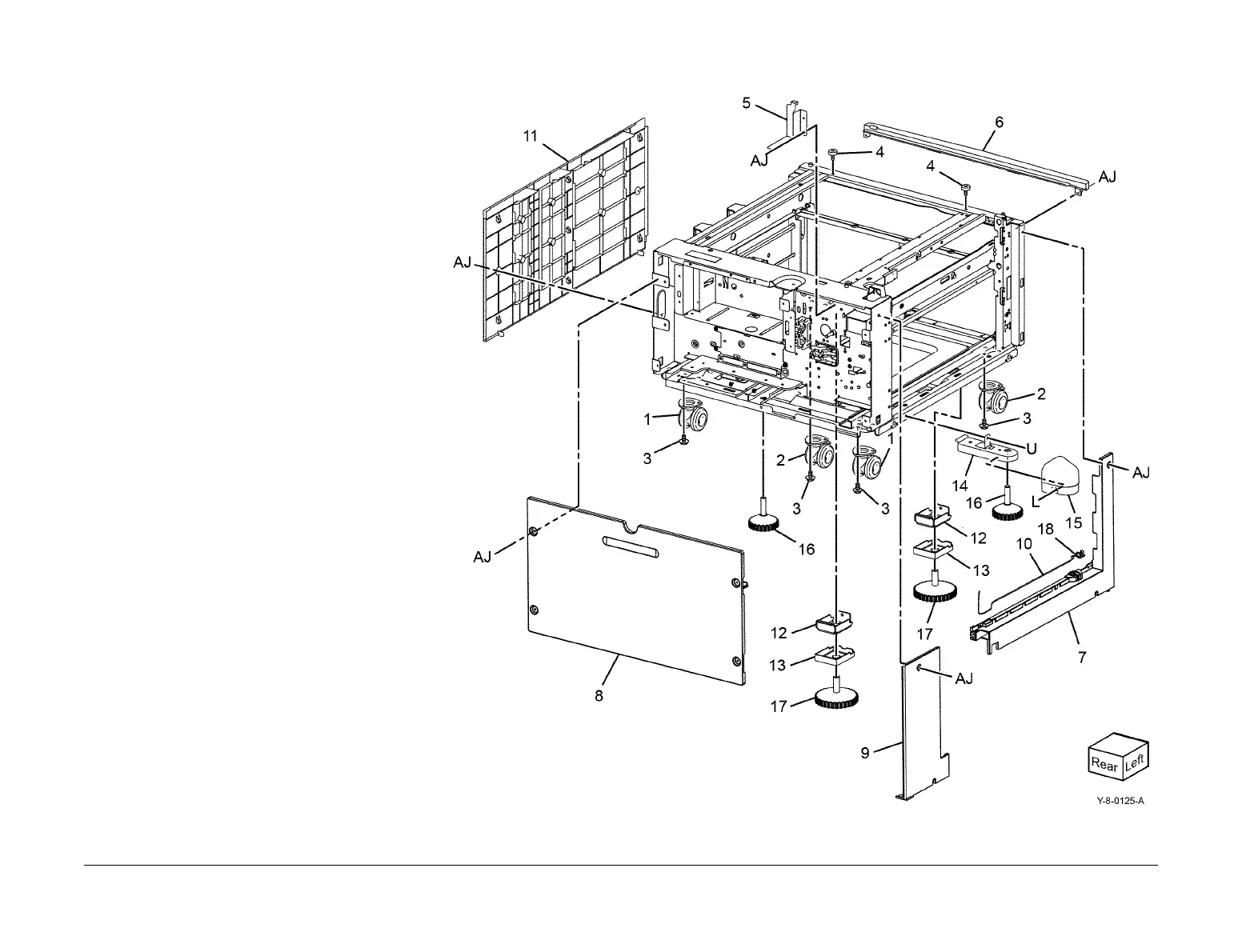

PL 70.95 TTM Castors
Item Part Description
1 417W41449 Caster
2 417W41349 Locking caster
3 – Screw (Not Spared)
4 – Docking screw (Not Spared)
5 – Docking bracket (Not Spared)
6 – Top cover (Not Spared)
7 – Left front cover (Not Spared)
8 – Rear cover (Not Spared)
9 – Left rear cover (Not Spared)
10 – Harness (Not Spared)
11 – Right cover (Not Spared)
12 – Front foot bracket (Not Spared)
13 – Front foot cover (Not Spared)
14 – Left foot bracket (Not Spared)
15 – Foot cover (Not Spared)
16 017K94910 Foot assembly adjuster
17 017K96680 Front foot assembly adjuster
18 110E11580 TM left hand interlock switch (77-
306)

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
