April 2017
4-53
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 10.4
Repairs and Adjustments
Launch Issue
REP 10.4 Fuser Fan Duct Assembly
Parts List on PL 40.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the upper rear cover, REP 28.5.
2. Remove the fuser rear duct A, Figure 1:
a. Disconnect the connector (1).
b. Remove the screw (2).
c. Disengage the right and left hooks (3), then remove the fuser rear duct A (4).

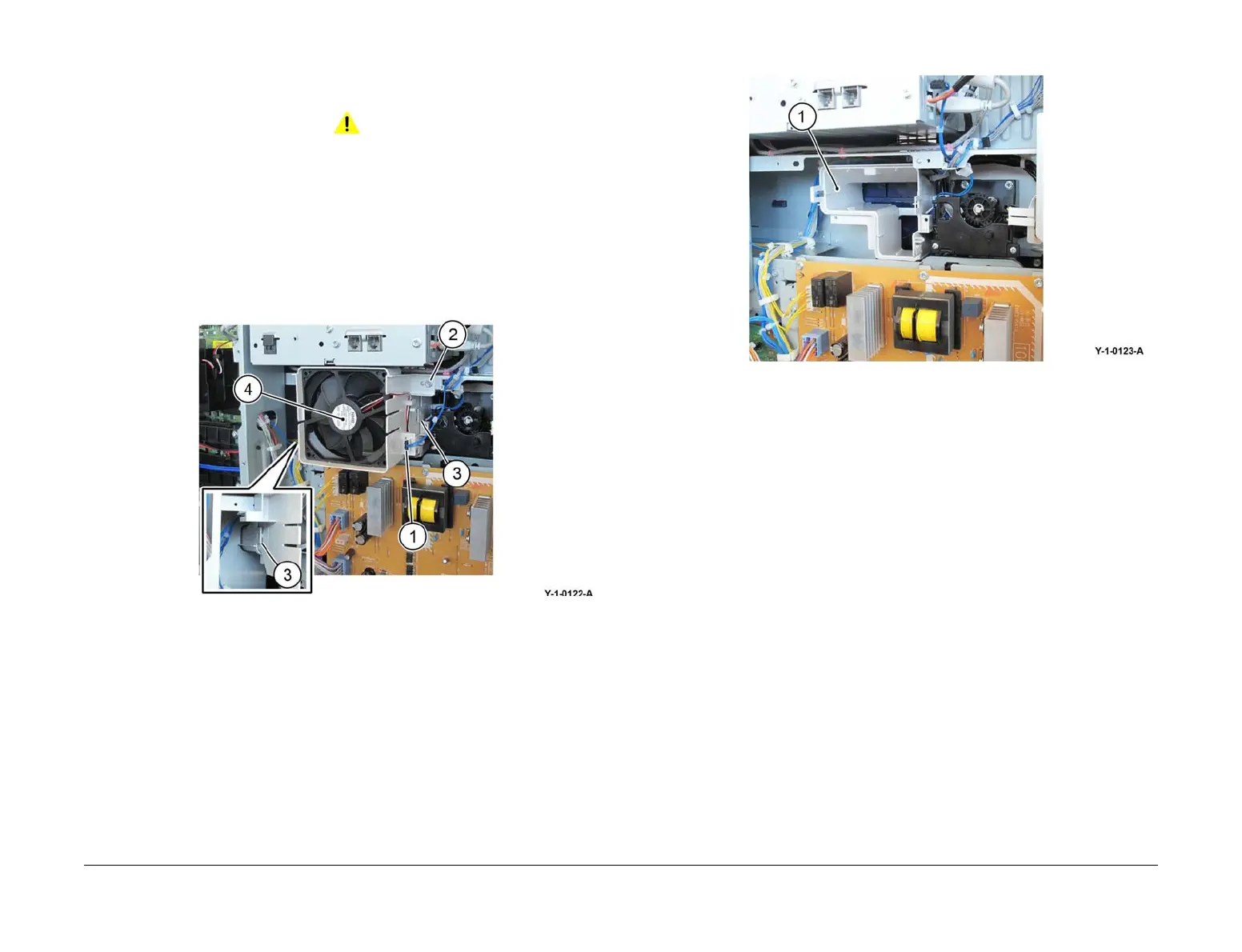

Figure 1 Fuser rear duct A removal
3. Remove the fuser rear duct B (1), Figure 2.
Figure 2 Fuser rear duct B removal
Replacement
The replacement is the reverse of the removal procedure.
