Xerox VersaLink B7030 Service Manual

April 2017
4-164
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 70.4, REP 70.5
Launch Issue
Repairs and Adjustments
Replacement
1. Align the holes in the HCF docking base (3) with the docking points (2) on the left side of
the machine. Refer to Figure 1.
NOTE: It may be necessary to rotate the machine caster so that it does not interfere with
docking.
2. Push the HCF into place.
3. Reconnect the HCF power cable.
REP 70.5 HCF Tray Rear Cables
Parts List on PL 70.51
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the HCF tray, REP 70.3.
2. Remove the gear bracket assembly, Figure 1:
a. Remove the oval shaped plate (1).
b. Remove two gears (2).
c. Remove three screws (3).
d. Remove the gear bracket assembly (4).

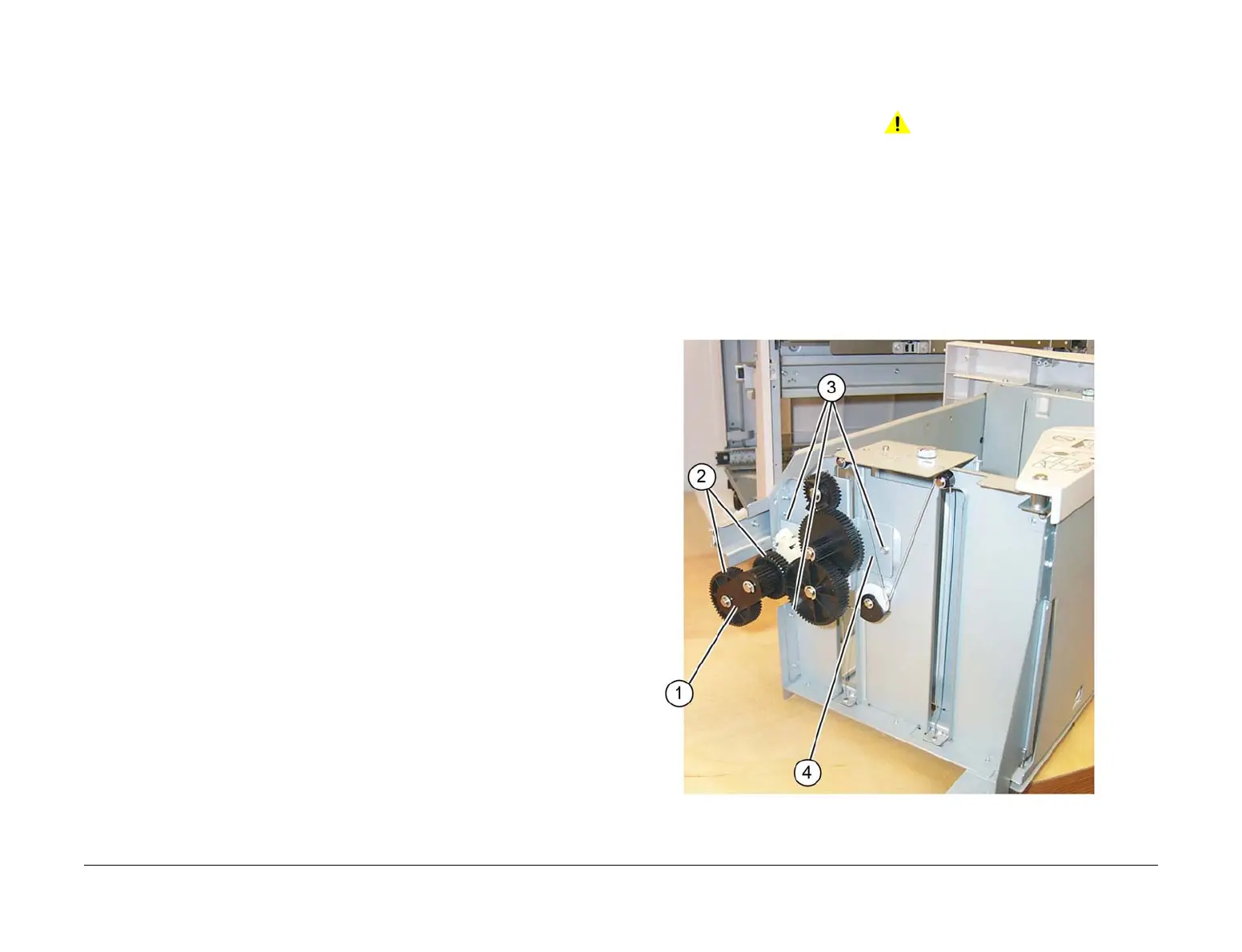

Figure 1 Gear bracket assembly

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
