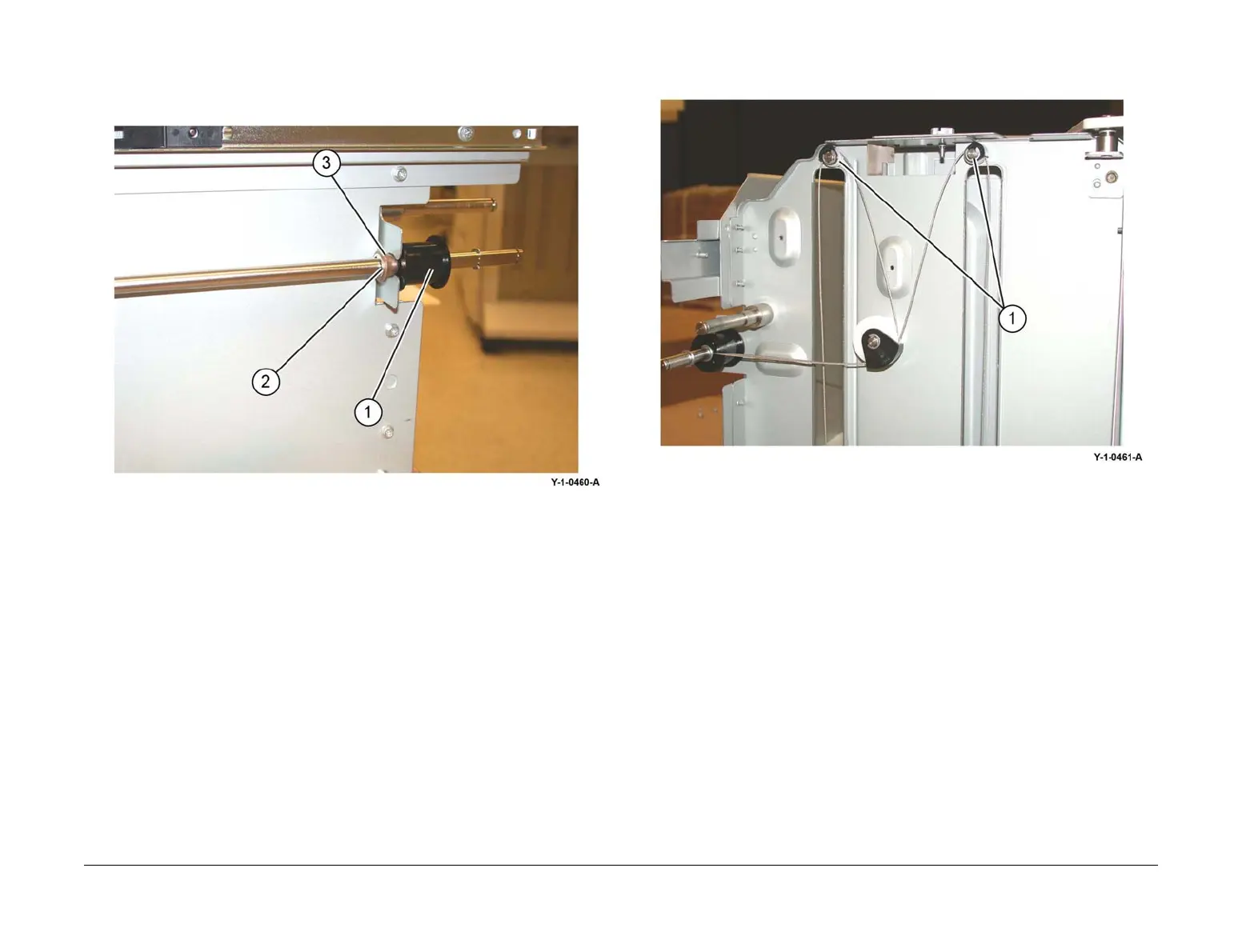

3. Free movement of the tray cable pulley (1), Figure 2:
a. Remove the E-ring (2).
b. Slide the bushing (3) away from the frame.
Figure 2 Tray cable pulley
4. Prepare to remove the tray rear cables. Remove two E-rings, wire guides and pulleys (1),
Figure 3.
Figure 3 Preparation
