Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
ADJ 60.3
Launch Issue
Repairs and Adjustments
ADJ 60.3 IIT Side Edge Registration
Purpose
To adjust the IIT scan timing in the cross process direction and to correct the copy position.
Check
CAUTION
Only perform this procedure if absolutely necessary. IIT side registration affects the precision
of document size detection.
NOTE: For a description of the print/copy orientation definitions, refer to GP 31 Print/Copy Ori-
entation Definitions.
1. Ensure that the IOT side registration is correct. Refer to dC126 System Registration.
2. Make two, 100% copies of test pattern 82E8220 from the document glass.
3. On the 2nd copy, check that the distance from the lead edge to the top of Step 3 on the
SE2 and SE3 scales is 10mm +/- 1.6mm (0.4 inch +/- 0.06 inch), Figure 1.

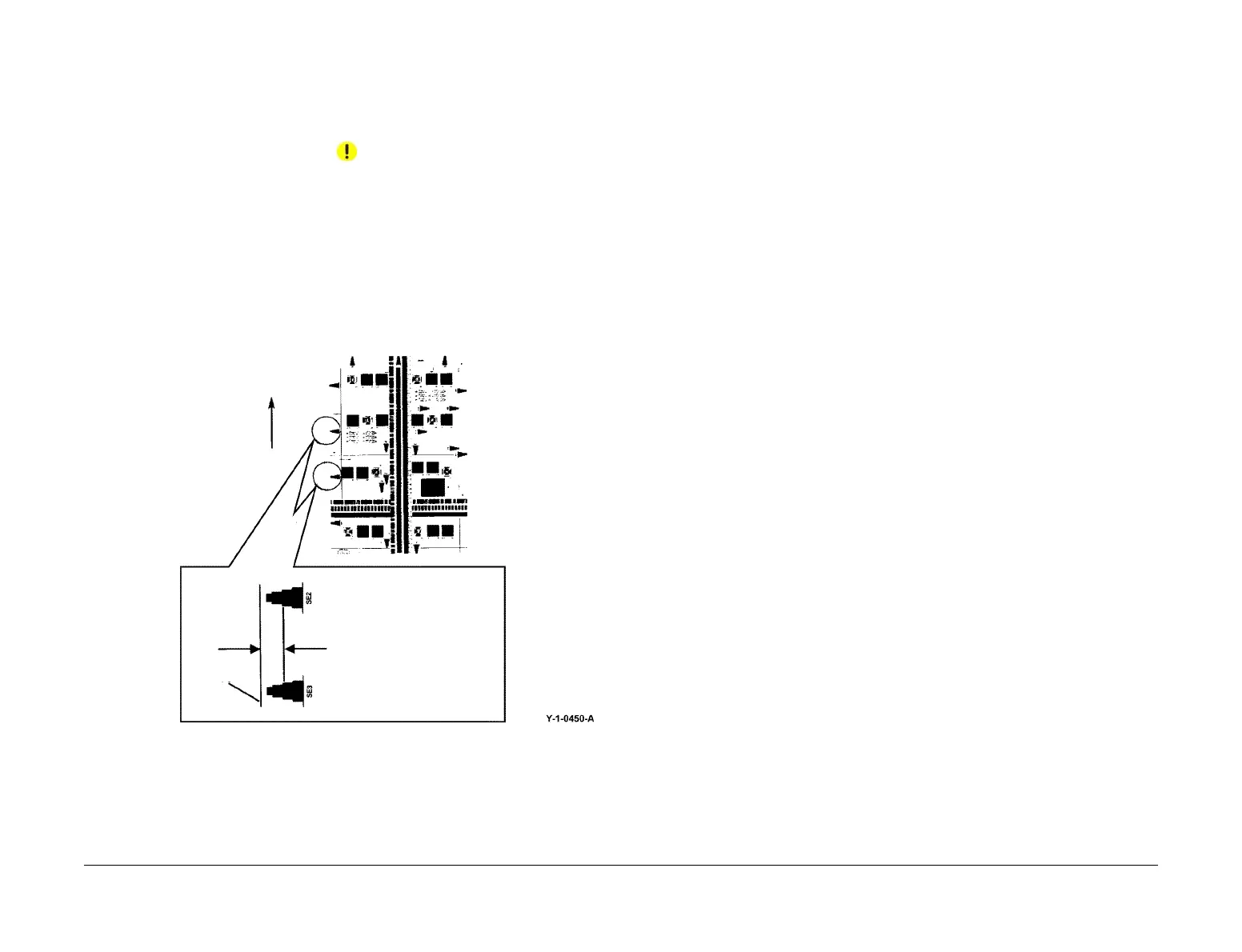

Figure 1 IIT side edge registration
4. If the value is not within the specified range, perform the Adjustment.
Adjustment
1. Enter dC131. Change the value of NVM location 715-053 to correct side edge registra-
tion:
• Increase the value to move the image towards the inboard edge of the copy.
• Decrease the value to move the image towards the outboard edge of the copy.
NOTE: An increment of 1 in NVM = 0.85mm (0.033 inch).
2. Repeat the Check.
Lead edge
10mm +/- 1.6mm
(0.4 inch +/- 0.06 inch)
