Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 12.11
Launch Issue
Parts Lists

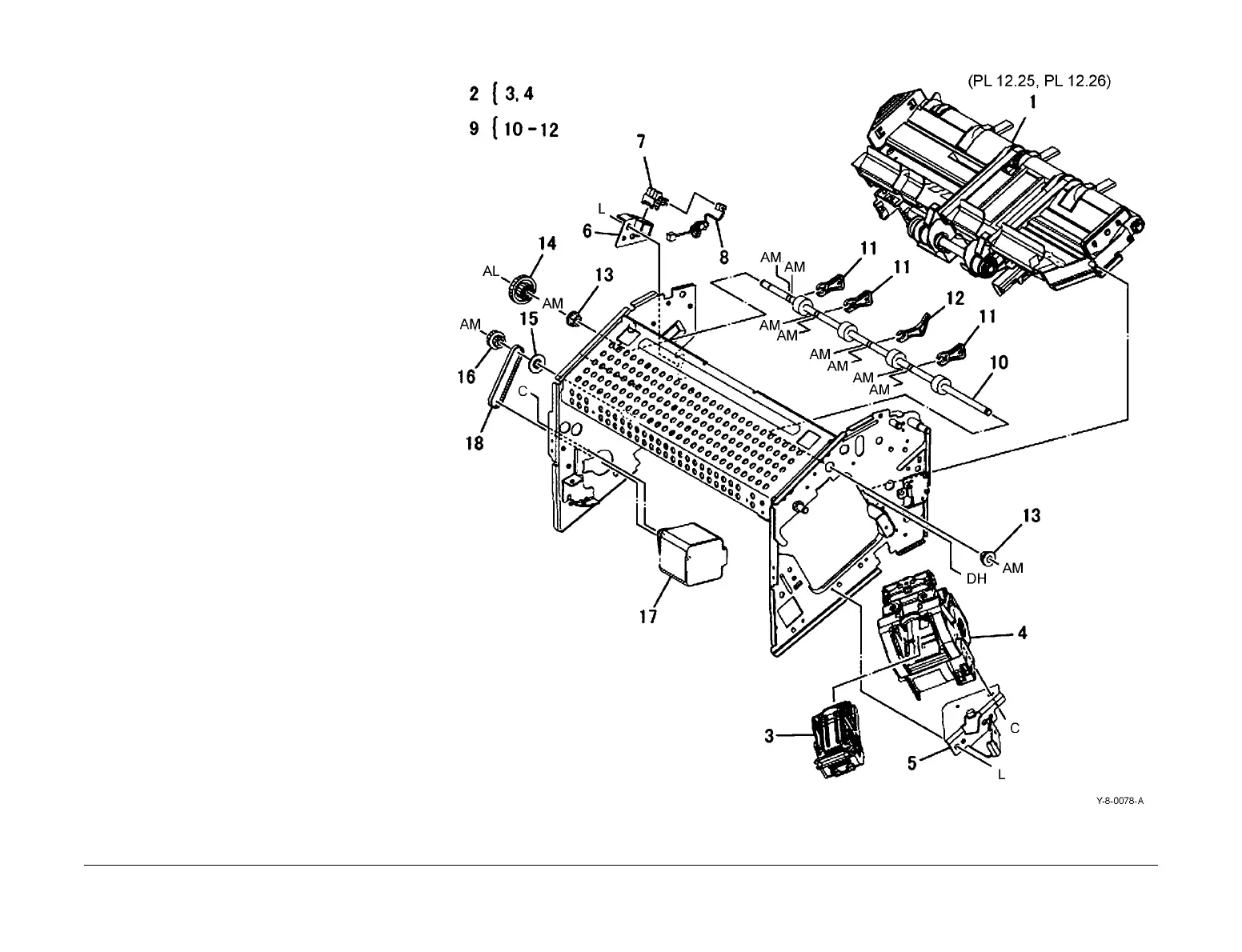

PL 12.11 Integrated Office Finisher
Base Assembly (2 of 5)
Item Part Description
1 050K75630 Compile assembly (REP 12.19)
2 029K93260 Stapler assembly (REP 12.4)
3 – Cartridge (P/O PL 12.11 Item 2)
(See NOTE)
4 – Stapler (P/O PL 12.11 Item 2)
5 – Bracket (Not Spared)
6 – Support (Not Spared)
7 930W00111 Set clamp home sensor (Q12-251)
8 – Wire harness (Not Spared)
9 022K72790 Exit roll assembly (REP 12.6)
10 – Exit roll (P/O PL 12.11 Item 9)
11 – Damper (P/O PL 12.11 Item 9)
12 – Center damper (P/O PL 12.11 Item
9)
13 – Bearing (Not Spared)
14 007K94220 One way gear
15 – Collar (Not Spared)
16 – Gear pulley (16T/18T) (Not Spared)
17 127K49800 Transport motor (MOT12-095)
18 – Belt (Not Spared)
NOTE: Refer to PL 26.05 for the staple refills and cartridge.
