Xerox VersaLink B7030 Service Manual

April 2017
5-46
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.20
Launch Issue
Parts Lists

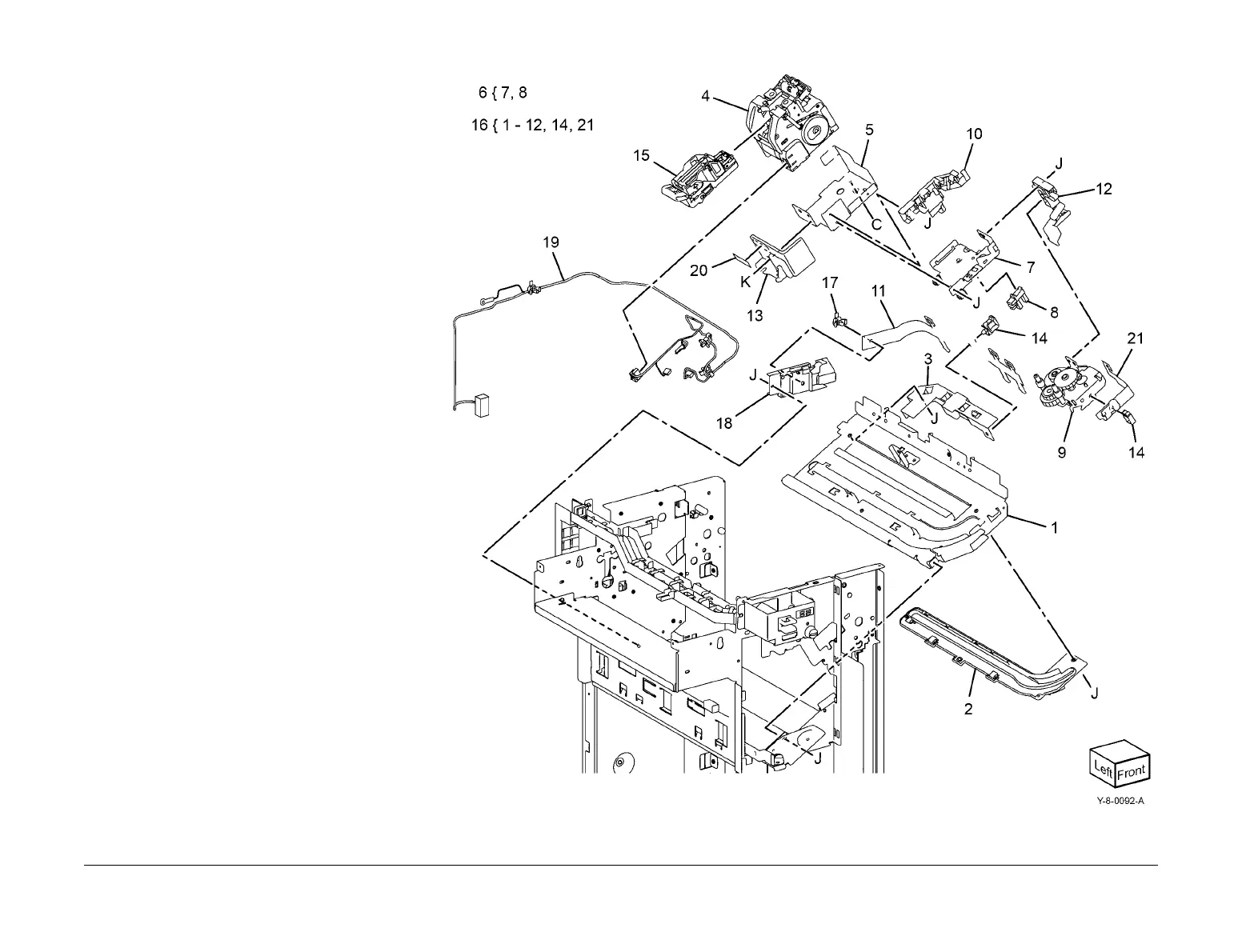

PL 13.20 Office Finisher LX Stapler
Item Part Description
1 – Base frame (P/O PL 13.20 Item 16)
2 – Rail (P/O PL 13.20 Item 16)
3 – Harness guide (P/O PL 13.20 Item
16) (FX)
4 029K93260 Stapler assembly (REP 13.16)
5 – Holder (P/O PL 13.20 Item 16)
6 – Stapler move position sensor
assembly (Not Spared)
7 – Bracket (P/O PL 13.20 Item 6)
8 130E94940 Stapler move position sensor (Q12-
241)
9 068K58811 Stapler move motor assembly
(MOT12-046) (REP 13.15)
10 – Harness guide (P/O PL 13.20 Item
16)
11 – Harness support guide (P/O PL
13.20 Item 16)
12 – Harness guide (P/O PL 13.20 Item
16)
13 – Stapler cover (Not Spared)
14 – Clamp (P/O PL 13.20 Item 16)
15 – Stapler cartridge (See NOTE)
16 801K64900 Stapler unit
17 – Cable band (Not Spared)
18 – Harness guide (Not Spared)
19 952K35890 Wire harness
20 – Label (Not Spared)
21 – Stapler move motor bracket (P/O
PL 13.20 Item 9)
NOTE: Refer to PL 26.05 for the staple refills and cartridge.

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
