Xerox VersaLink B7030 Service Manual

April 2017
4-214
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.38, REP 80.39
Launch Issue
Repairs and Adjustments
REP 80.38 Tray 2 and 3 Feed/Retard/Nudger Roll (TTM)
Parts List on PL 80.25
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: New feed, retard and nudger rolls must be installed at the same time.
1. Pull out trays 2, 3 and 4. Remove the paper.
2. Remove trays 2, 3 and 4.
3. Open the left cover assembly, PL 70.70 Item 7.
4. Remove the tray 2 or 3 feed, retard and nudger rolls, Figure 1:
a. Slide the chute (1) forwards.
b. Release the clip, then remove the tray 2 or 3 feed, retard and nudger rolls (2).

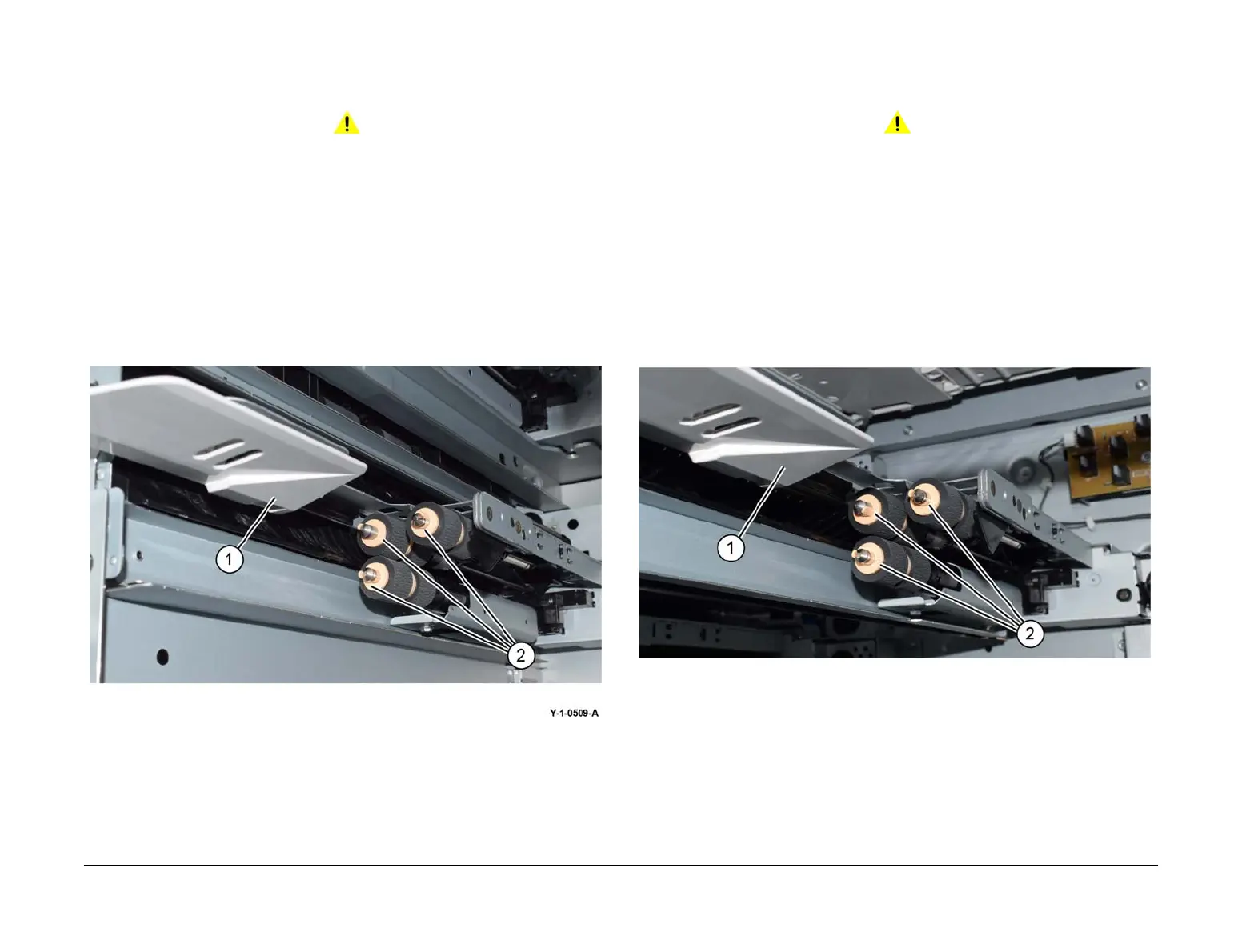

Figure 1 Roll removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If new rolls are installed, enter dC135 HFSI Counter. Reset the HFSI counters that follow:
• Tray 2 Chain-Link: 954-801
• Tray 3 Chain-Link: 954-802
REP 80.39 Tray 4 Feed/Retard/Nudger Roll (TTM)
Parts List on PL 80.25
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: New feed, retard and nudger rolls must be installed at the same time.
1. Pull out trays 2, 3 and 4. Remove the paper.
2. Remove trays 2, 3 and 4.
3. Open the left cover assembly, PL 70.70 Item 7.
4. Remove the tray 4 feed, retard and nudger rolls, Figure 1:
a. Slide the chute (1) forwards.
b. Release the clip, then remove the tray 4 feed, retard and nudger rolls (2).
Figure 1 Roll removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If new rolls are installed, enter dC135 HFSI Counter. Reset the HFSI counter that follows:
• Tray 4 Chain-Link: 954-803

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
