Xerox VersaLink B7030

April 2017
5-49
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.27
Parts Lists
Launch Issue

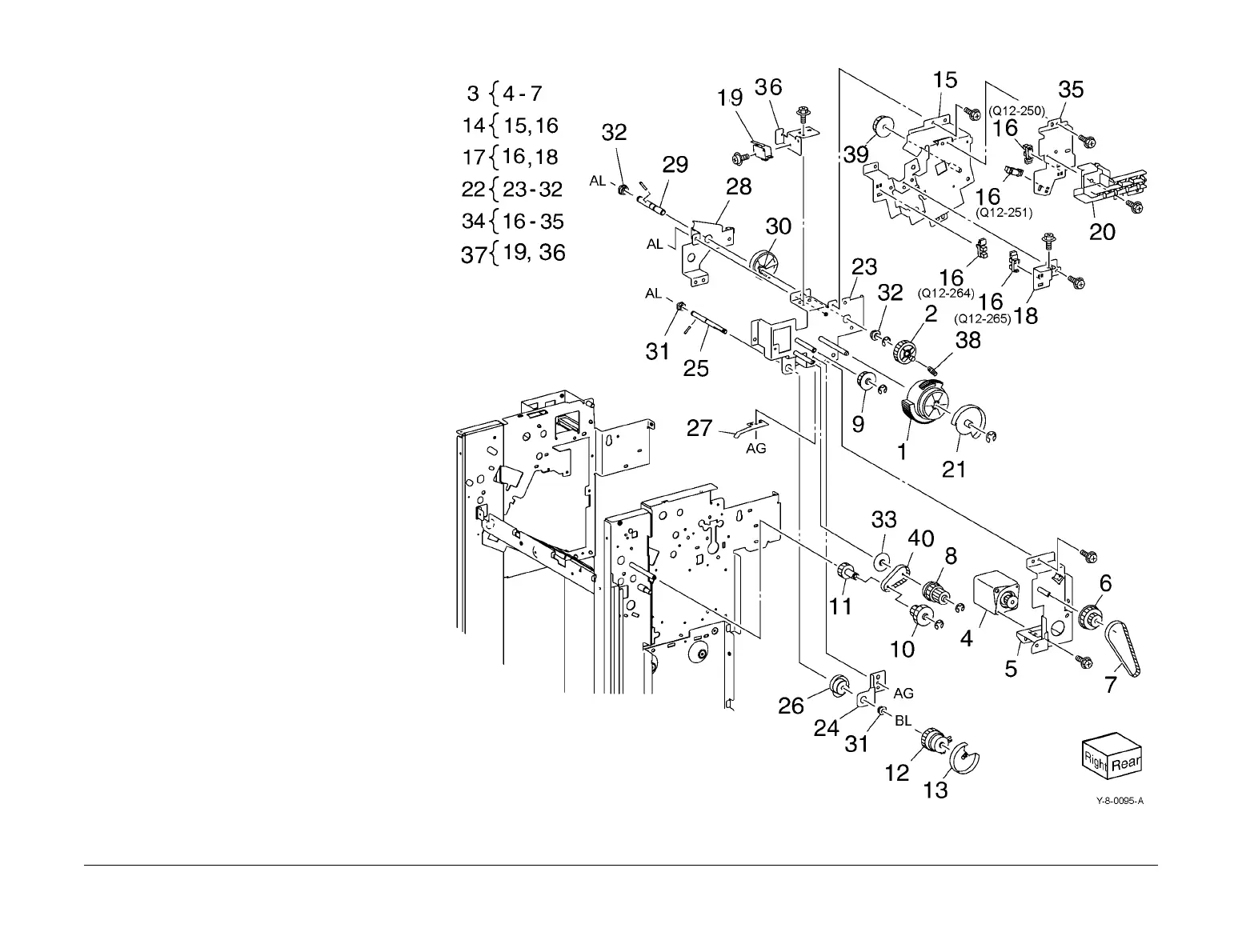

PL 13.27 Office Finisher LX Ejector (3
of 5)
Item Part Description
1. 007K15451 Gear (82T/77T/51T)
2. – Gear (38T) (Not Spared)
3. 127K57196 Eject motor assembly (REP 13.22)
4. – Eject motor (MOT12-054) (P/O PL
13.27 Item 3) (REP 13.25)
5. – Bracket (P/O PL 13.27 Item 3)
6. – Gear/Pulley (20T/49T) (P/O PL
13.27 Item 3)
7. – Belt (P/O PL 13.27 Item 7)
8. – Gear (28T/22T/38T) (Not Spared)
9. – Gear (25T) (Not Spared)
10. – Gear/Pulley (32T/25T) (Not
Spared)
11. – Gear (23T) (Not Spared)
12. 121K34631 Set clamp clutch (34T) (CL12-050)
13. 120E29593 Set clamp cam actuator
14. 130K72171 Stacker height sensor 1 assembly
15. – Bracket (P/O PL 13.27 Item 14)
16. 930W00111 Stack height sensor 1 (Q12-264)/
stack height sensor 2 (Q12-265)/
eject clamp home sensor (Q12-
250)/set clamp home sensor (Q12-
251)
17. – Stacker height sensor 2 assembly
(P/O PL 13.27 Item 34)
18. – Bracket (P/O PL 13.27 Item 17)
19. – Eject cover switch (S12-300) (P/O
PL 13.27 Item 37)
20. – Harness guide (P/O PL 13.27 Item
34)
21. 120E29852 Gear select actuator
22. 068K58732 Eject drive bracket assembly
23. – Bracket (P/O PL 13.27 Item 22)
24. – Bracket (P/O PL 13.27 Item 22)
25. – Shaft (P/O PL 13.27 Item 22)
26. – Clamp set cam (P/O PL 13.27 Item
22)
27. 809E79070 Spring
28. – Bracket (P/O PL 13.27 Item 22)
29. – Shaft (P/O PL 13.27 Item 22)
30. – Eject clamp cam (P/O PL 13.27
Item 22)
31. – Sleeve bearing (P/O PL 13.27 Item
22)
32. – Sleeve bearing (P/O PL 13.27 Item
22)
33. – Drive eject flange (Not Spared)
34. – Eject clamp home sensor assembly
(Not Spared)
35. – Bracket (P/O PL 13.27 Item 34)
36. – Bracket (P/O PL 13.27 Item 37)
37. 068K58742 Eject cover switch assembly
38. 809E79820 Spring
39. 807E22040 Gear (30T)
40. – Belt (Not Spared)
