Xerox VersaLink B7030 Service Manual

April 2017
5-35
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 12.14
Parts Lists
Launch Issue

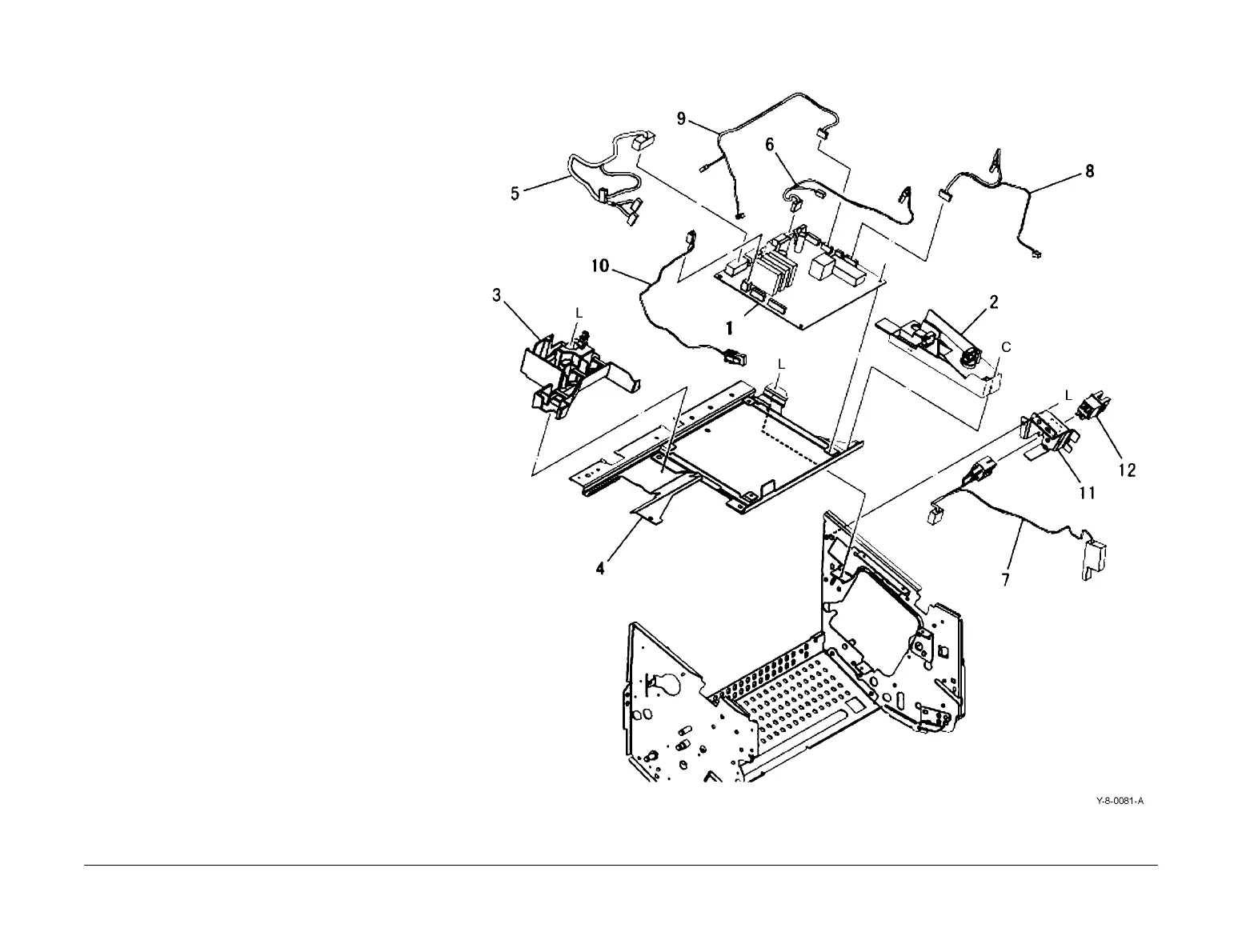

PL 12.14 Integrated Office Finisher
Base Assembly (5 of 5)
Item Part Description
1 960K85702 Finisher PWB (REP 12.14)
2 – Connector bracket (Not Spared)
3 – Harness guide (Not Spared)
4 – PWB bracket (Not Spared)
5 – Wire harness (drive) (Not Spared)
6 – Wire harness (stapler) (Not Spared)
7 – Wire harness (interlock) (Not
Spared)
8 – Wire harness (front sensor) (Not
Spared)
9 – Wire harness (compile) (Not
Spared)
10 – Wire harness (stacker) (Not
Spared)
11 – Bracket (Not Spared)
12 110E97990 Front door interlock switch (S12-
302)
