Xerox VersaLink B7030 Service Manual

April 2017
5-80
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.15
Launch Issue
Parts Lists

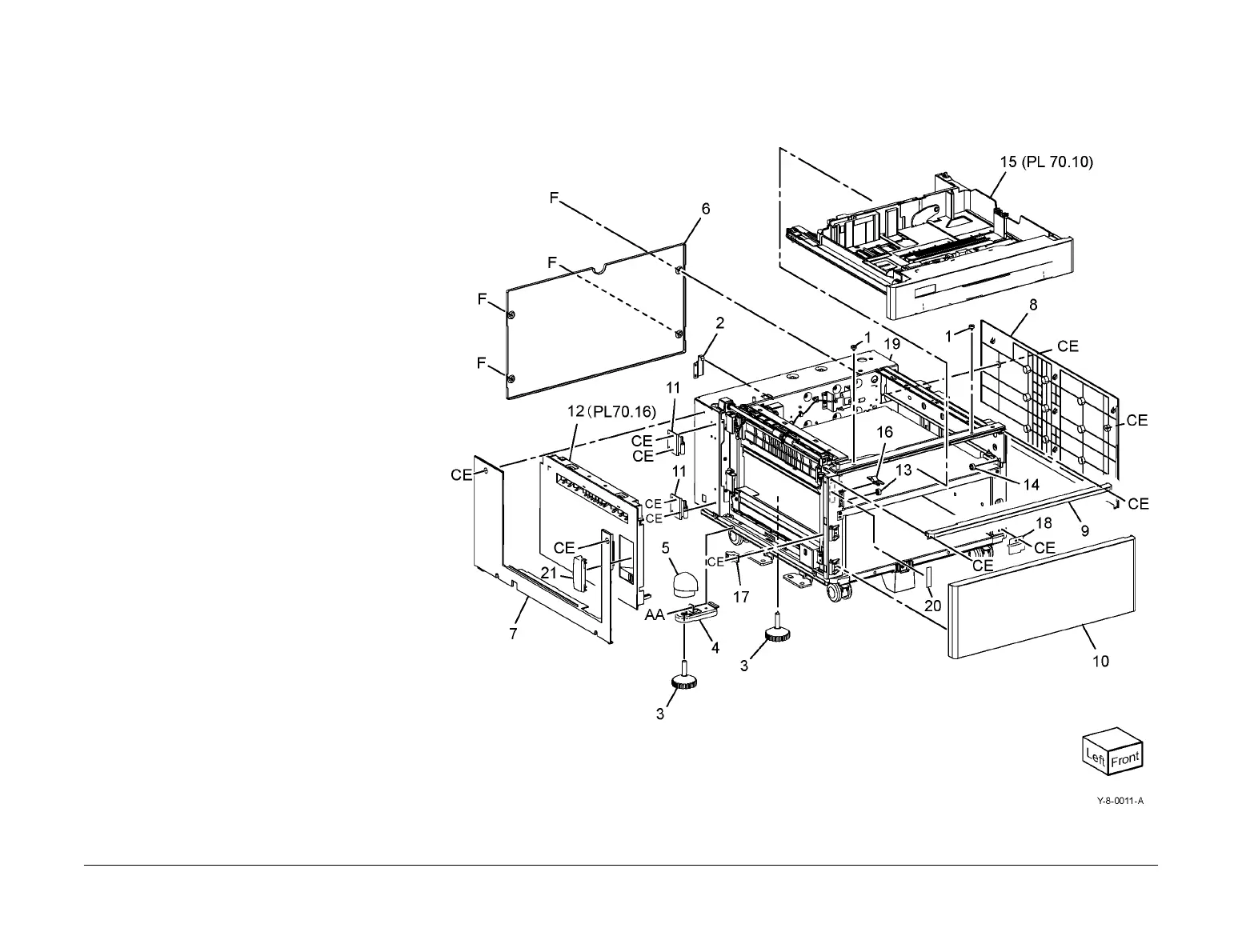

PL 70.15 1TM (1 of 3)
Item Part Description
1 – Docking screw (Not Spared)
2 – Joint bracket (Not Spared)
3 – Foot adjuster assembly (Not
Spared)
4 – Left bracket (Not Spared)
5 – Left cover (Not Spared)
6 – Bracket cover (Not Spared)
7 – Left cover (Not Spared)
8 – Right cover (Not Spared)
9 – MA Top cover (Not Spared)
10 848K94153 Front cover assembly
11 – Hinge frame bracket (Not Spared)
12 – Left cover assembly (P/O PL 70.16)
13 059E03500 Front left roller
14 059E08410 Front right roller
15 – A3 tray assembly (P/O PL 70.10)
16 003E75431 Front TM stopper
17 – LTH holder (Not Spared)
18 – Foot right cover (Not Spared)
19 – Frame assembly (Not Spared)
20 – Label (Not Spared)
21 – Handle (Not Spared)
