Xerox VersaLink B7030 Service Manual

April 2017
3-23
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
IQS 1
Imaqe Quality
Launch Issue
IQS 1 Solid Area Density and Tone Reproduction
Documents
Test patterns: 82E2000 (A3 and 11x17) 82E2010 (A4) 82E2020 (8.5x11) and the solid area
density scale, 82E8230 (SIR 542.00) for reference.
Specification
Copy
Compare the copies of one of the above 82E series test patterns, Figure 1, made from the doc-
ument glass, with the solid area density scale, 82E8230 (SIR 542.00):
• The density of the 2.1; 2.3; and 2.5 areas must be as dark or darker than the 1.3 refer-
ence, but less than 1.5.
• The 3.0, 3.3 and 3.4 text areas should all be visible.
• The 4.1 line pair should be visible.
• The 2.0, 2.2 and 2.4 squares should be darker than the original document.
• The bullseye targets should be clearly reproduced.
Print
Compare a print of the internal test pattern 53 with the solid area density scale, 82E8230 (SIR
542.00). The density of the solid areas must be as dark or darker than the 1.3 reference, but
less than 1.5.
Corrective action
If the solid area density specification is not met, perform the IQ2 IOT IQ Defects RAP.

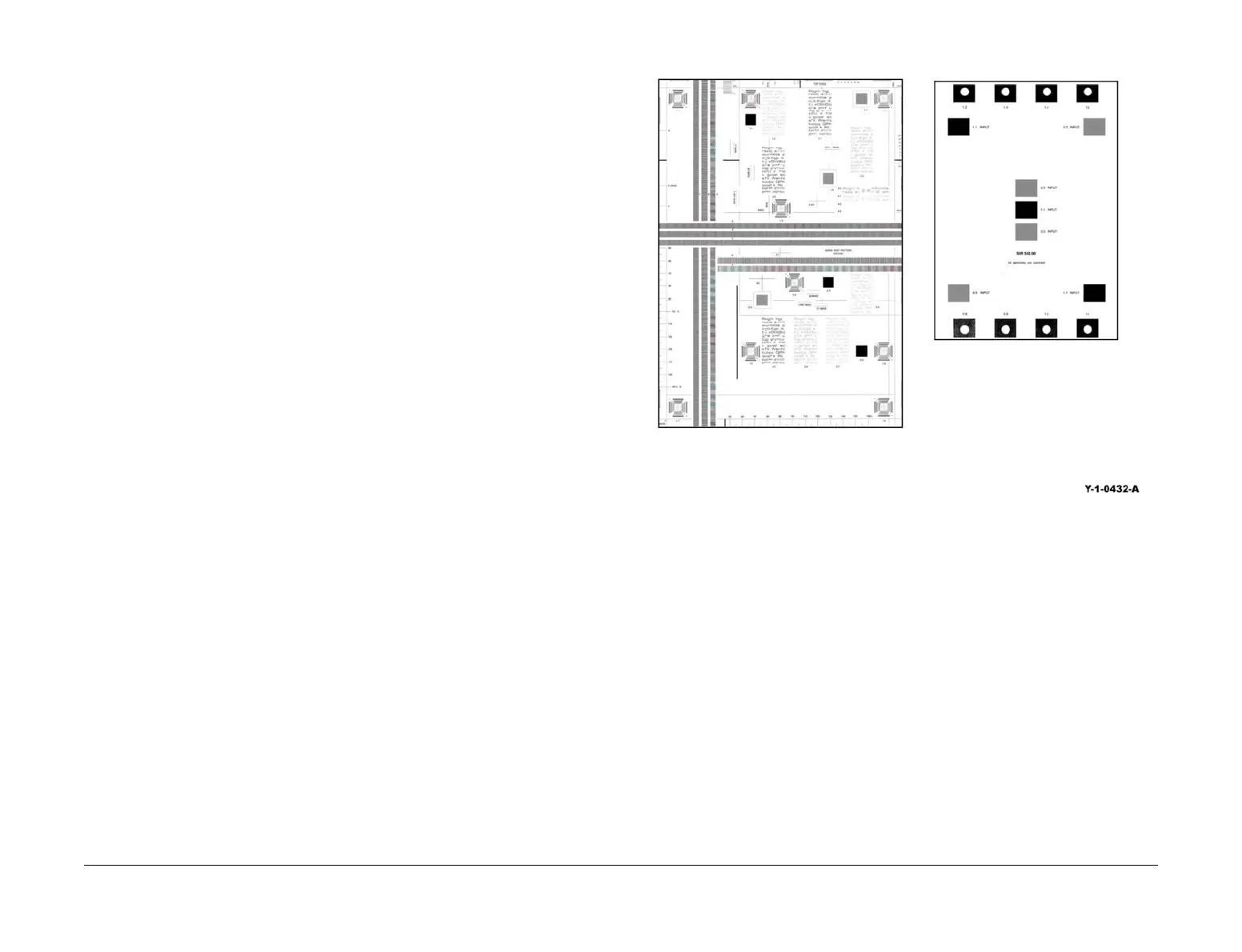

Figure 1 Test patterns
82E2000
SIR 542.00

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
