Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.23, REP 13.24
Launch Issue
Repairs and Adjustments
3. Remove the finisher PWB, Figure 1:
a. Disconnect the all connectors from the finisher PWB.
b. Remove the five screws (1).
c. Remove the finisher PWB (2).

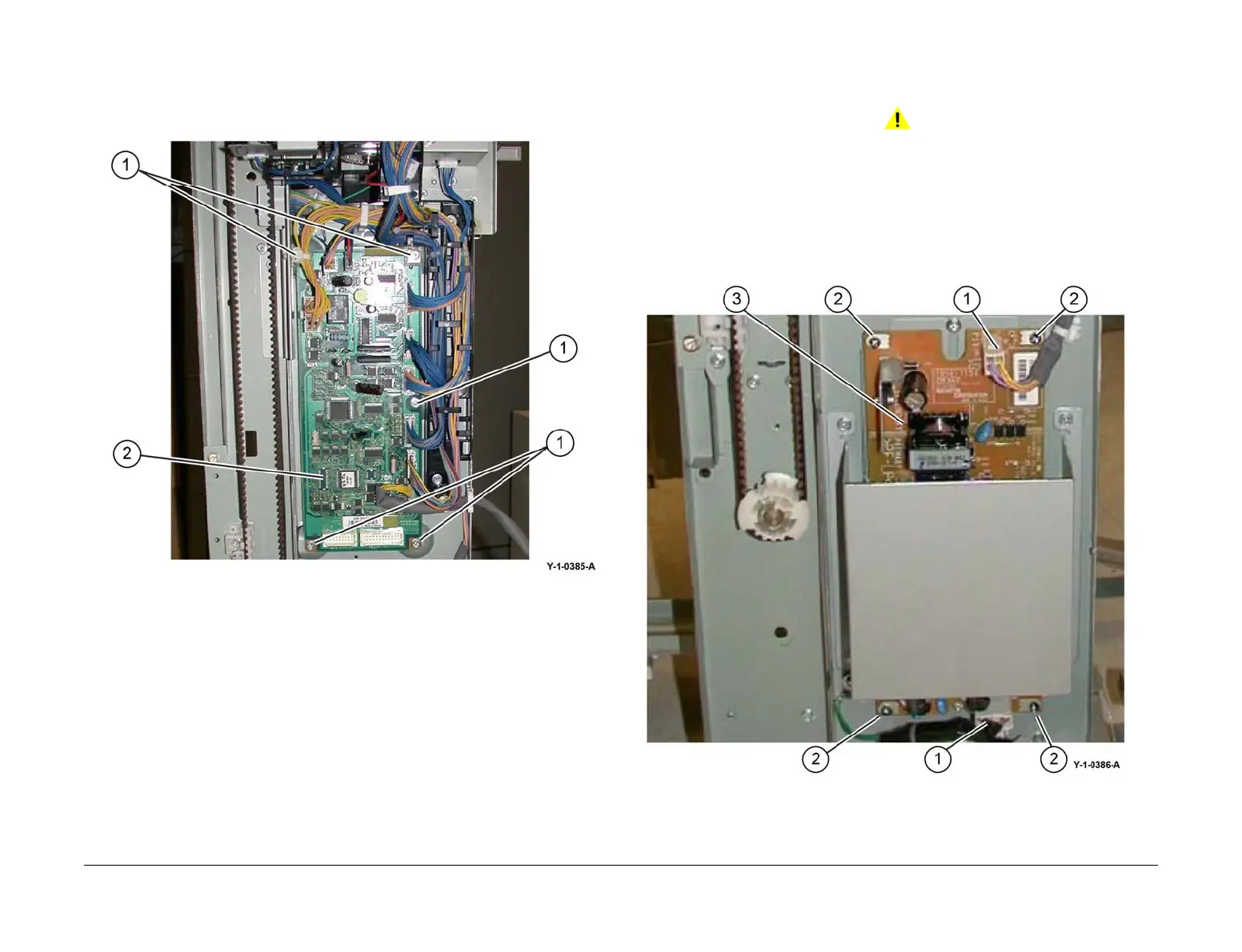

Figure 1 Finisher PWB removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Check the machines current software level against the software level recorded prior to
installation of the new finisher PWB. If necessary, reload the software, GP 4.
REP 13.24 Finisher LVPS
Parts List on PL PL 13.45
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the rear lower cover, REP 13.8.
2. Remove the finisher LVPS, Figure 1:
a. Disconnect both Connectors (1).
b. Remove four screws (2).
c. Remove the finisher LVPS (3).
Figure 1 Finisher LVPS removal
Replacement
The replacement is the reverse of the removal procedure.
