Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.17
Launch Issue
Parts Lists

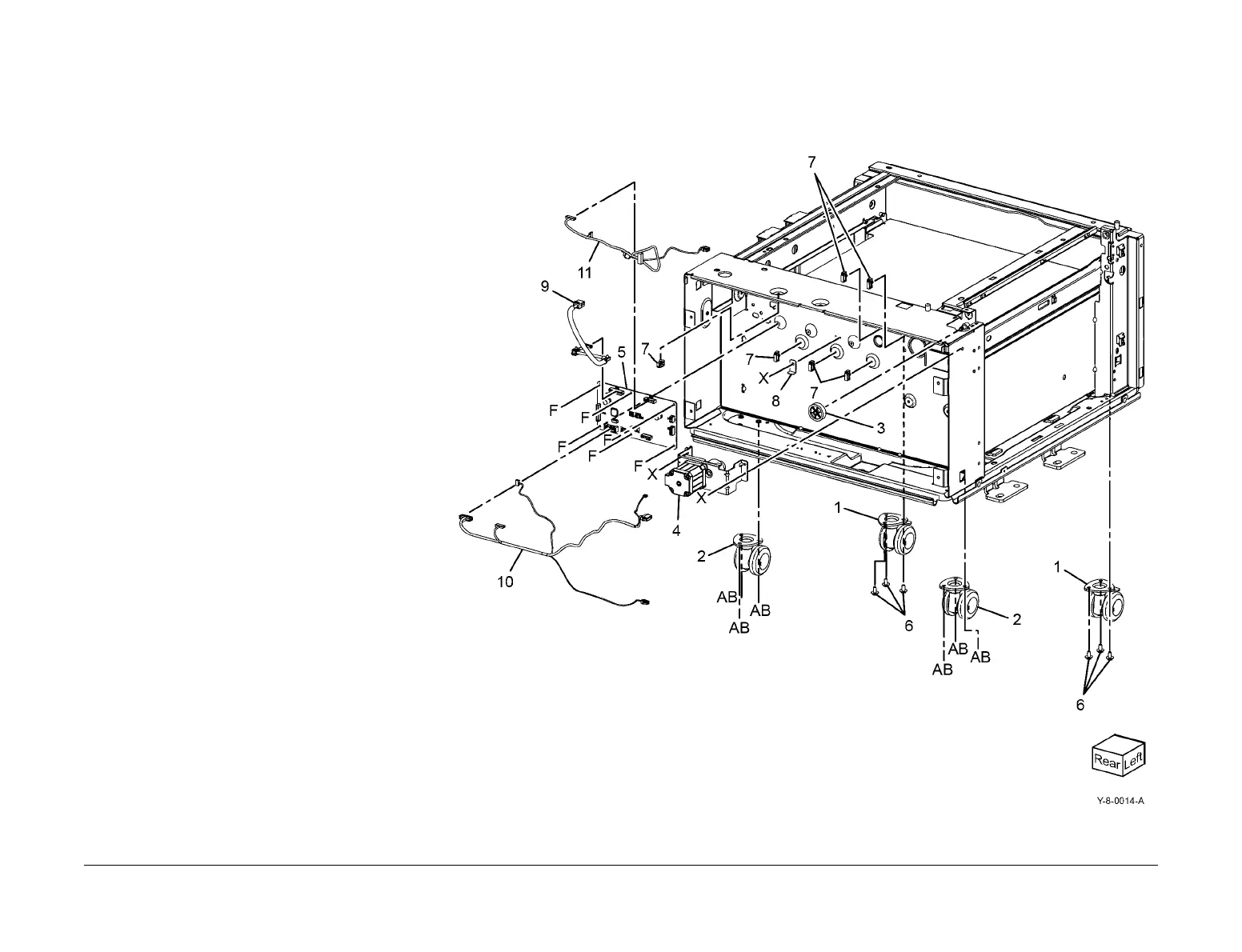

PL 70.17 1TM (3 of 3)
Item Part Description
1 417W41349 Front caster
2 417W41449 Rear caster
3 – Gear 34T (Not Spared)
4 127K75990 Takeaway motor (MOT77-033)
(REP 80.5)
5 960K85452 1TM PWB (REP 80.4)
6 – Screw (Not Spared)
7 920W01210 Locking clamp
8 – Bracket (Not Spared)
9 952K20150 Harness
10 952K20181 Harness
11 952K20191 Harness
