Xerox VersaLink B7030 Service Manual

April 2017
4-71
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.12
Repairs and Adjustments
Launch Issue
REP 12.12 Entry Roll
Parts List on PL 12.13
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the upper chute assembly, REP 12.13.
2. Remove the entry roll, Figure 1:
a. Disconnect the spring (1).
b. Remove two E-clips (2).
c. Remove the arm (3).
d. Slide the shaft (4) out of the bearing in the arm.
NOTE: Capture the bearing.

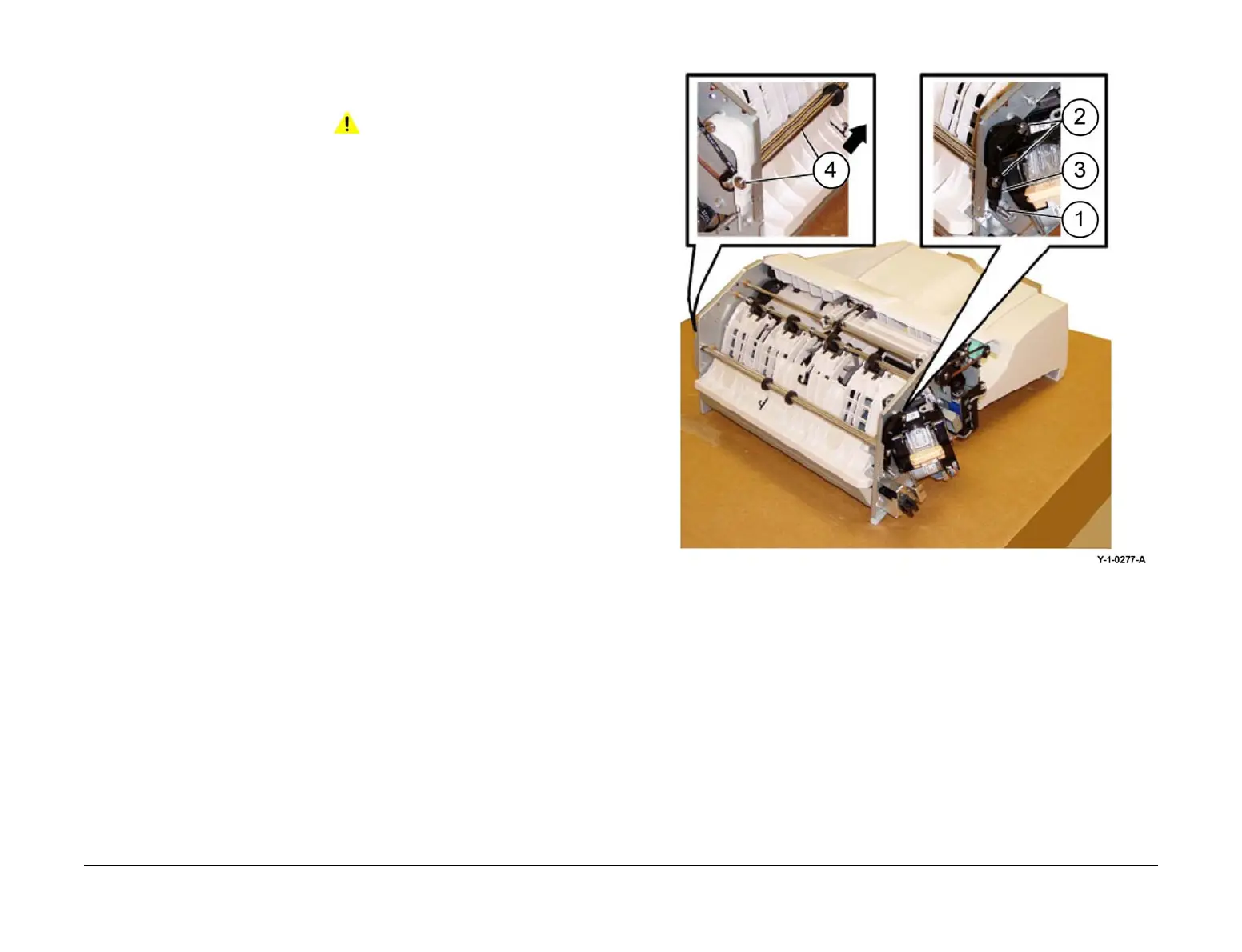

Figure 1 Roll removal
Replacement
The replacement is the reverse of the removal procedure.
NOTE: Ensure that the paper guides on the upper chute, PL 12.13 Item 4 are not folded back
on top of the exit roll assembly.
