Xerox VersaLink B7030 Service Manual

April 2017
4-70
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.11
Launch Issue
Repairs and Adjustments

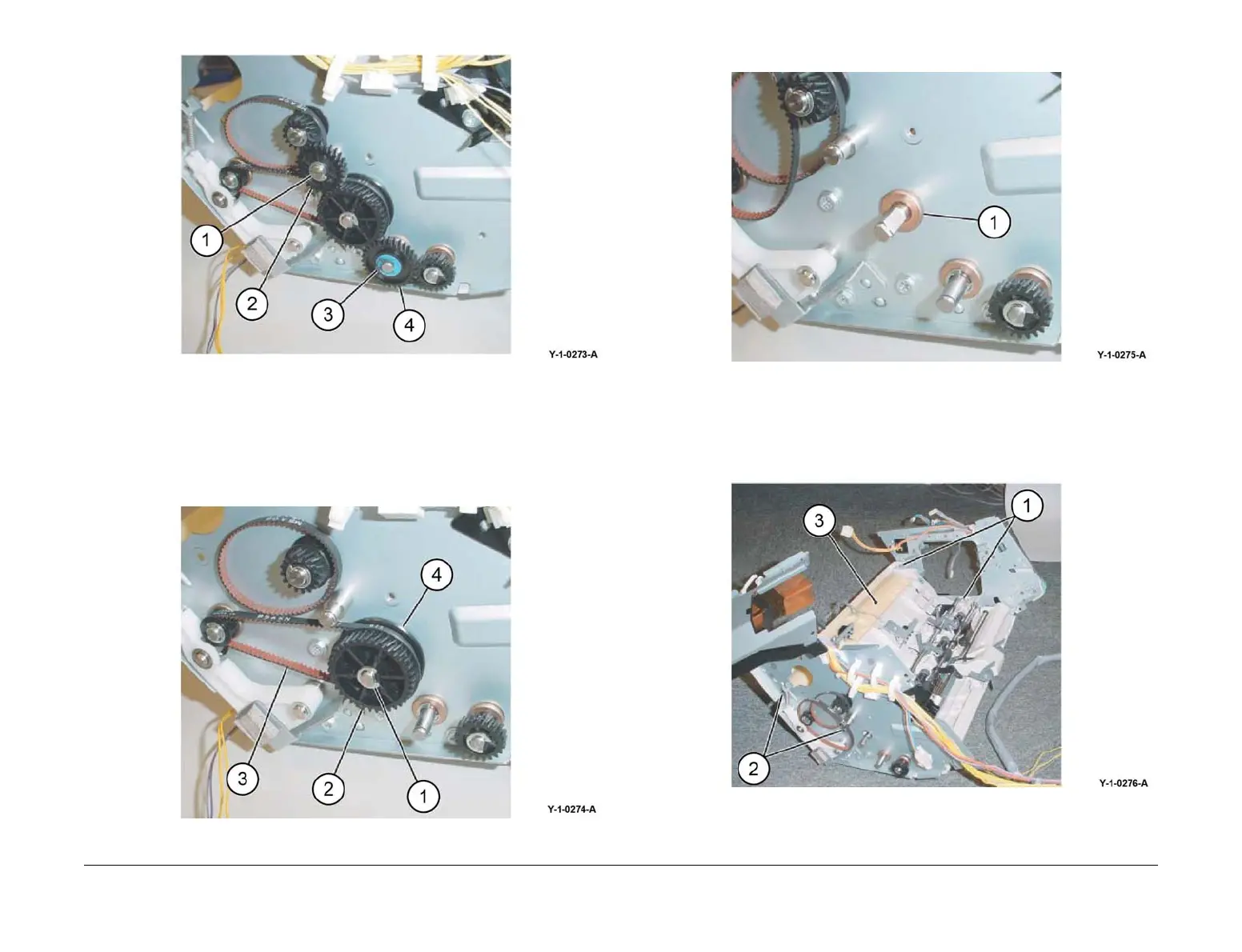

Figure 2 Gear removal
5. Remove the gear pulley, Figure 3:
a. Remove the E-clip (1).
b. Remove the gear (2).
c. Remove the belt (3) from the pulley.
d. Remove the flange (4).
Figure 3 Gear pulley removal
6. Remove the bearing, Figure 4.
Figure 4 Bearing removal
7. Remove the entrance lower chute assembly, Figure 5:
a. Remove two screws (1).
b. Loosen two screws (2).
c. Remove the entrance lower chute assembly (3).
Figure 5 Entrance lower chute assembly removal
Replacement
The replacement is the reverse of the removal procedure.
