Xerox VersaLink B7030

April 2017
4-103
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.12, REP 13.13
Repairs and Adjustments
Launch Issue
REP 13.12 Stacker Upper Cover
Parts List on PL 13.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the stacker tray, REP 13.20.
2. Remove the stacker lower cover, REP 13.11.
3. Remove six screws (1), then the stacker upper cover (2), Figure 1.

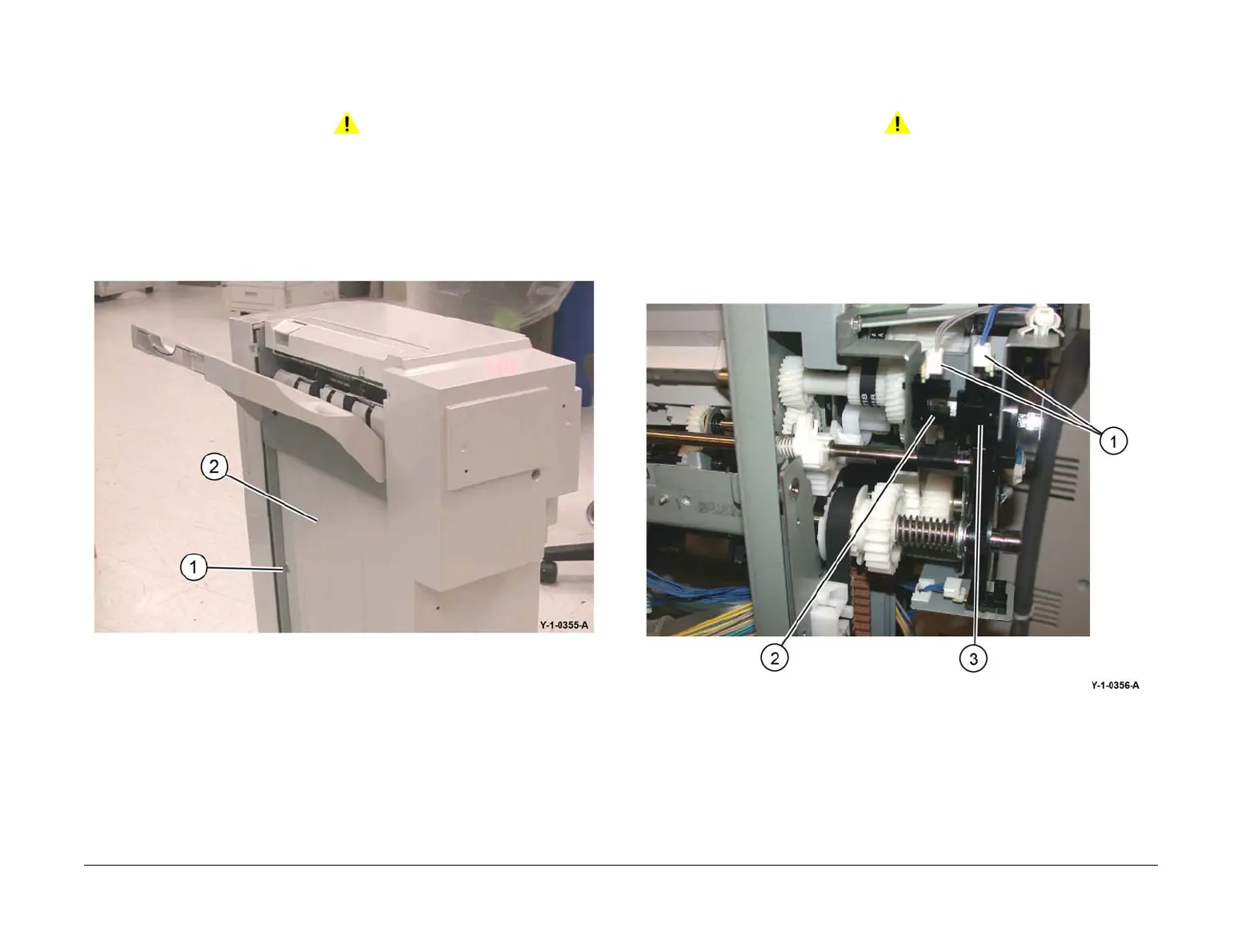

Figure 1 Stacker upper cover removal
Replacement
The replacement is the reverse of the removal procedure.
REP 13.13 Stack Height Sensors 1 and 2
Parts List on PL 13.27
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the rear upper cover, REP 13.7.
2. Remove the relevant stack height sensor, Figure 1:
a. Disconnect the relevant connector (1).
b. Remove either stack height sensor 1 (2) or stack height sensor 2 (3).
Figure 1 Sensor removal
Replacement
The replacement is the reverse of the removal procedure.
