Xerox VersaLink B7030 Service Manual

April 2017
5-72
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 60.10
Launch Issue
Parts Lists

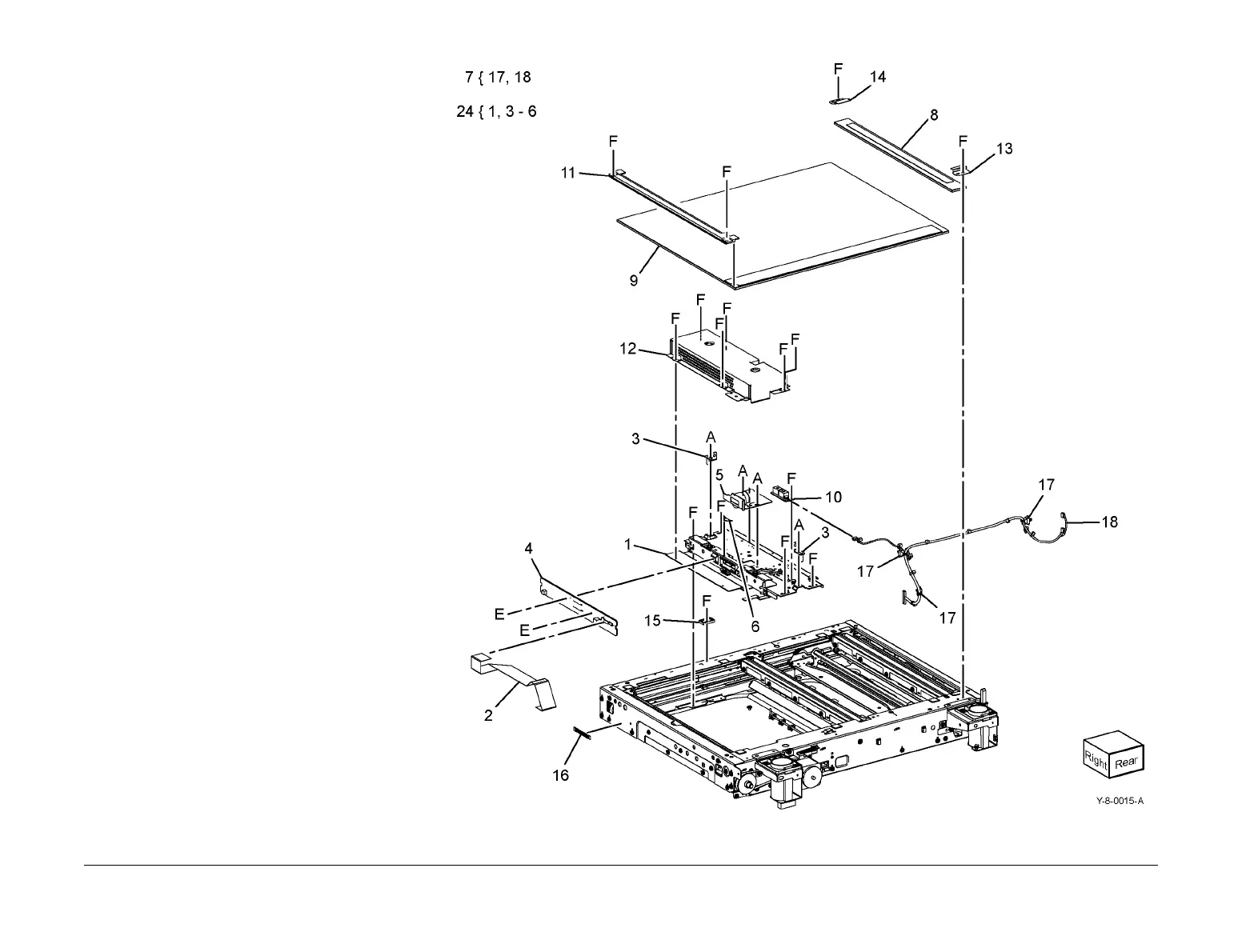

PL 60.10 CCD Lens Assembly/
Document Glass
Item Part Description
1 – Base plate assembly (P/O PL 60.10
Item 24)
2 952K20511 CCD FFC contact cable assembly
3 – Pin assembly (P/O PL 60.10 Item
24)
4 – CCD assembly (P/O PL 60.10 Item
24)
5 – CCD lens assembly (P/O PL 60.10
Item 24) (REP 60.2, ADJ 60.6)
6 – Conductor (P/O PL 60.10 Item 24)
7 952K33890 Sensor harness assembly
8 090K93320 CVT glass
9 090K93580 Document glass
10 130K64150 APS sensor 1 (Q62-251)/APS
sensor 3 (Q62-253)
11 815E58942 Right plate
12 – Lens cover assembly (Not Spared)
13 – Rear glass support (Not Spared)
14 – Front glass support (Not Spared)
15 – Glass support (Not Spared)
16 – Data plate (Not Spared)
17 – Cable tie (P/O PL 60.10 Item 7)
18 – Wire harness assembly (P/O PL
60.10 Item 7)
19 – Not used
20 – Not used
21 – Not used
22 – Not used
23 – Not used
24 604K97090 Lens kit

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
