Xerox VersaLink B7030 Service Manual

April 2017
6-21
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
GP 16, GP 17
General Procedures and Information
Launch Issue

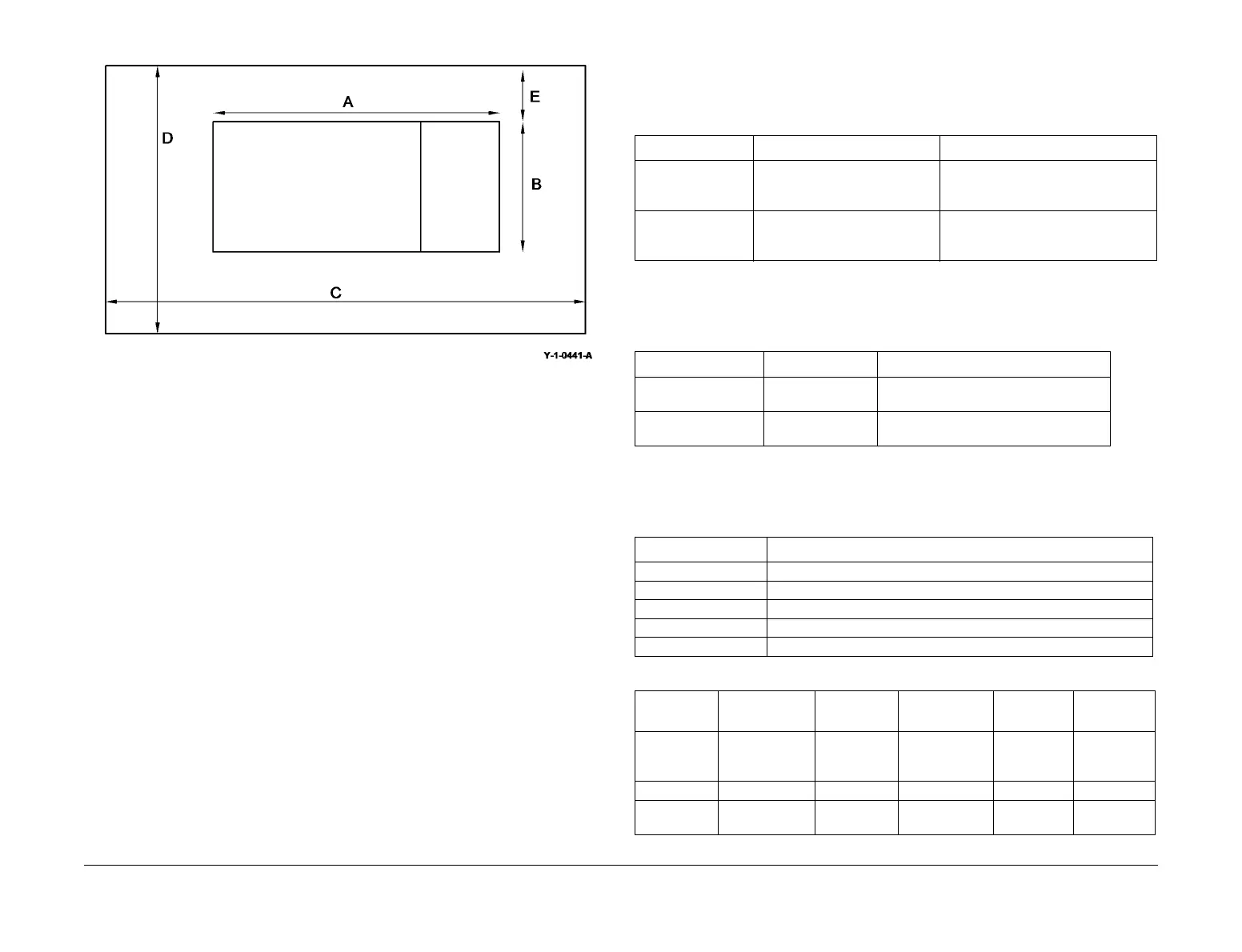

Figure 1 Installation plan
GP 17 Electrical Power Requirements
Power Requirements
Refer to Table 1.
Power Consumption
Refer to Table 2.
Operation Modes
Refer to Table 3 and Table 4.
Front
Table 1 Electrical power requirements
Nominal Voltage Average Current Comments
110-120VAC
(60Hz) Plus 6%
minus 10%
Less than or equal to 12A RMS. 50/60Hz plus 3% minus 3%
220-240VAC
(50Hz) Plus 10%
minus 10%
Less than or equal to 8A RMS. 50Hz plus 3% minus 3%
Table 2 Power consumption
Region Voltage Power Consumption Value (kW)
XC 110-127VAC 110VAC - 1.45 or less
127VAC - 1.67 or less
XE 220-240VAC 220VAC - 1.76 or less
240VAC - 1.92 or less
Table 3 Operation modes
Mode State
Run Normal operation mode
Ready The state prior to entering run mode.
Low power A lower power consumption mode than ready mode
Sleep A lower power consumption mode than low power mode.
Sub power off The controller is maintained with the programs running.
Table 4 IOT states
Sub-System Run Mode Ready Mode
Low Power
Mode
Sleep Mode
Sub Power
Off Mode
Fuser Maintaining
operating tem
-
perature
Maintaining
standby tem
-
perature
Maintaining low
temperature
Off Off
Xerographics Operating state Off Off Off Off
Print Head
Assembly
Operating state Off Off Off Off

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
