Xerox VersaLink B7030

April 2017
5-104
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.80
Launch Issue
Parts Lists

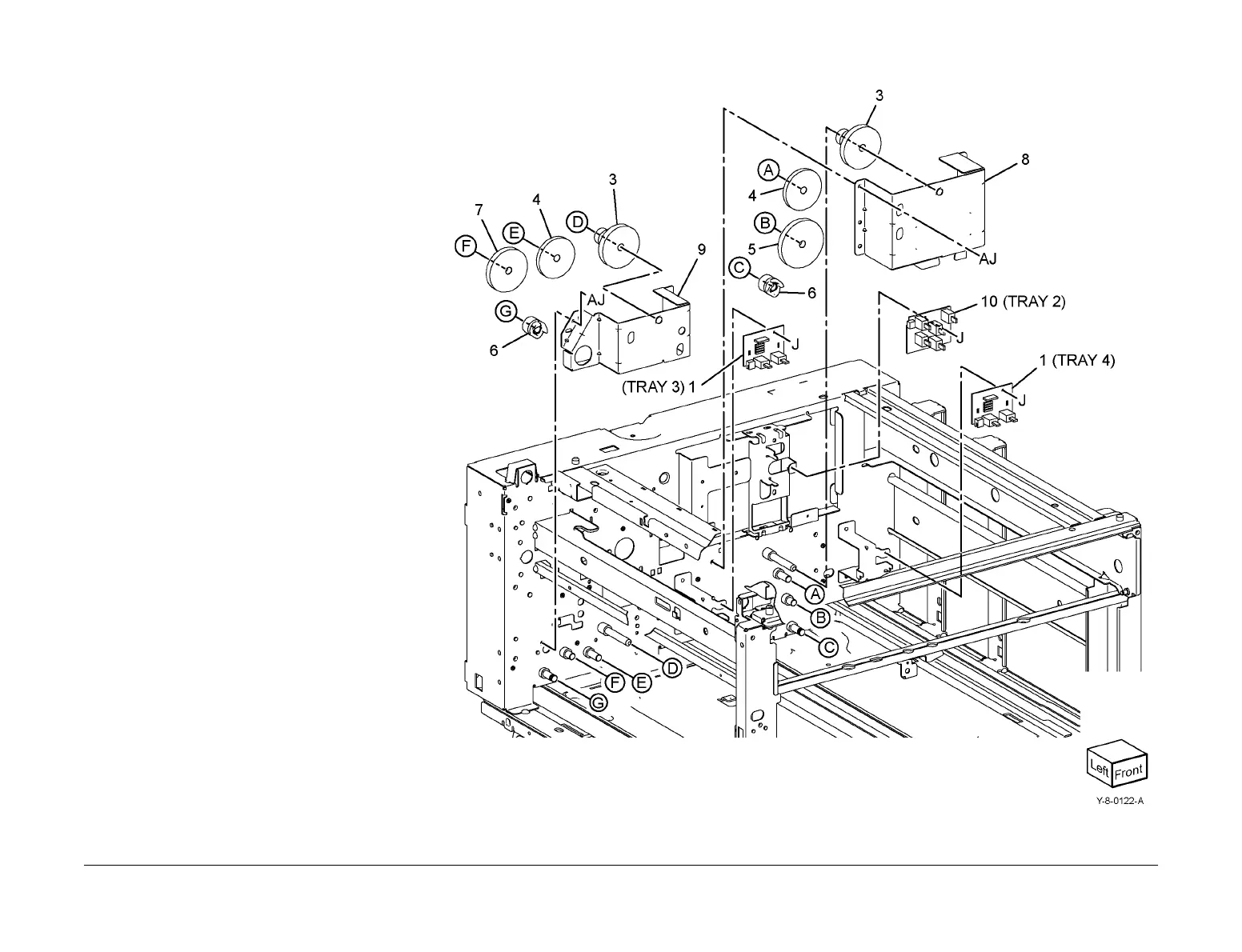

PL 70.80 TTM Size Sensing
Item Part Description
1 110K15040 Paper size sensor
2 – Not used
3 – Gear 17/50T (Not Spared)
4 – Gear 16/48T (Not Spared)
5 – Gear 57T (Not Spared)
6 – Gear 18T (Not Spared)
7 – Gear 51T (Not Spared)
8 – Bracket (Not Spared)
9 – Bracket (Not Spared)
10 110K11680 Tray 2 paper size sensor
