April 2017
5-16
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.40
Launch Issue
Parts Lists

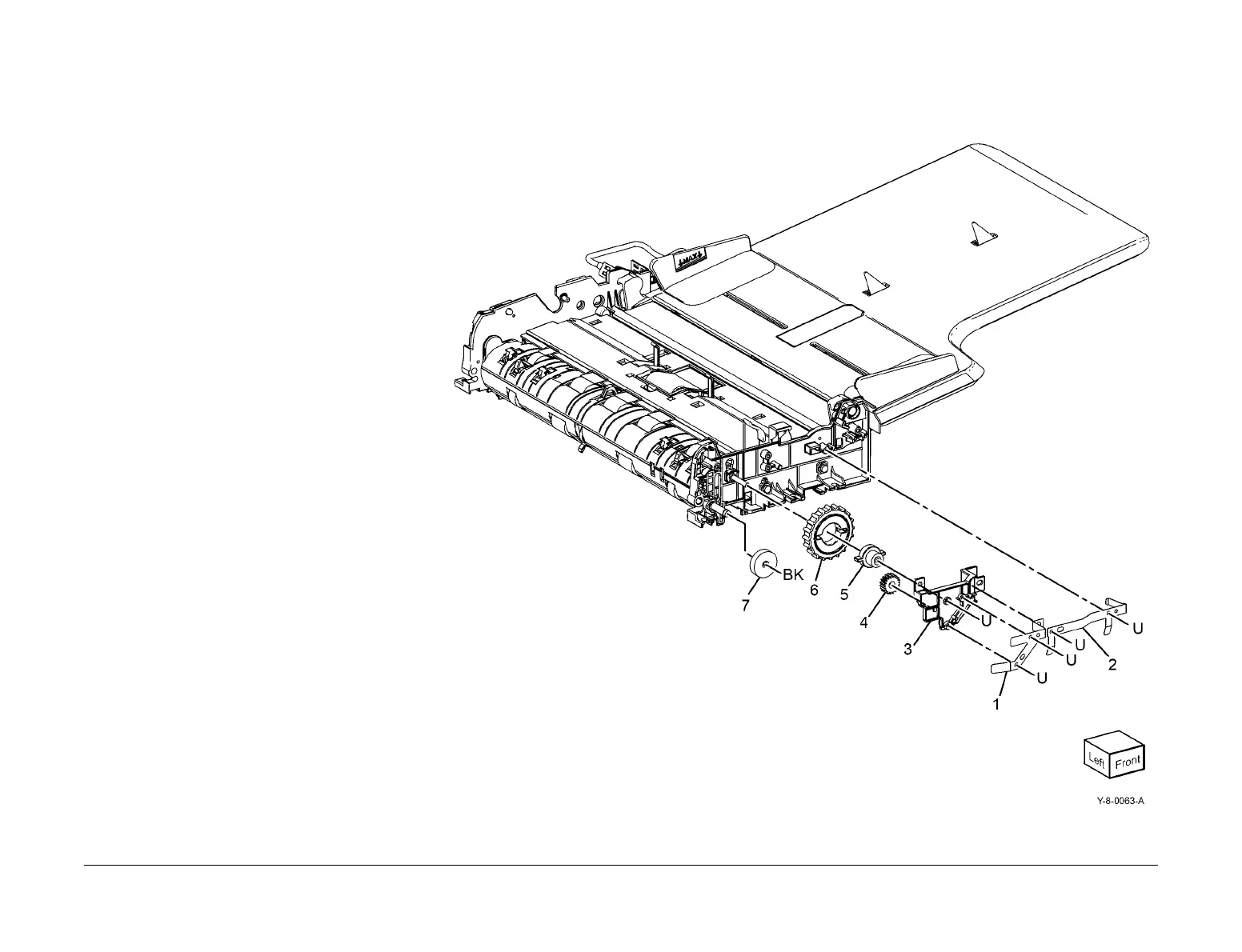

PL 5.40 DADF Feeder Front Frame
Item Part Description
1 – Earth roller plate (Not Spared)
2 – Earth roller 2 plate (Not Spared)
3 – Handle knob bracket (Not Spared)
4 – Gear idler (Not Spared)
5 – Gear handle (Not Spared)
6 – Handle knob (Not Spared)
7 – Registration knob gear (Not
Spared)
