Xerox VersaLink B7030

April 2017
4-92
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.27
Launch Issue
Repairs and Adjustments

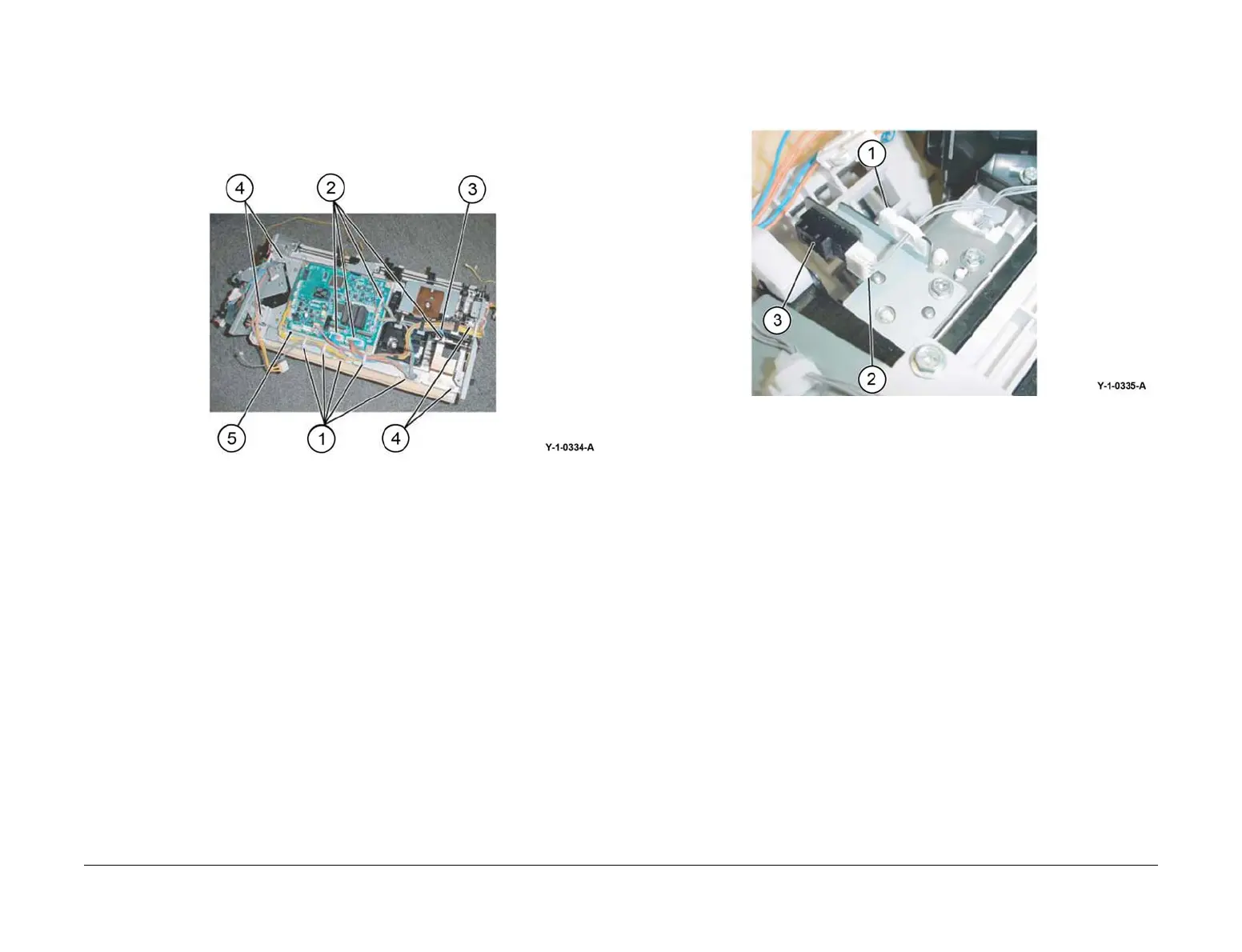

7. Remove the bottom plate, Figure 2:
a. Release the harness from the 5 clamps (1).
b. Disconnect eight connectors (2).
c. Remove the harness from the retainers (3).
d. Remove four screws (4).
e. Remove the bottom plate (5).
Figure 2 Bottom plate removal
8. Remove the eject home sensor, Figure 3:
a. Release the harness from the clamp (1).
b. Disconnect the connector (2).
c. Remove the eject home sensor (3) from the bracket.
Figure 3 Eject home sensor removal
Replacement
The replacement is the reverse of the removal procedure.
