Xerox VersaLink B7030 Service Manual

April 2017
4-94
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.28
Launch Issue
Repairs and Adjustments

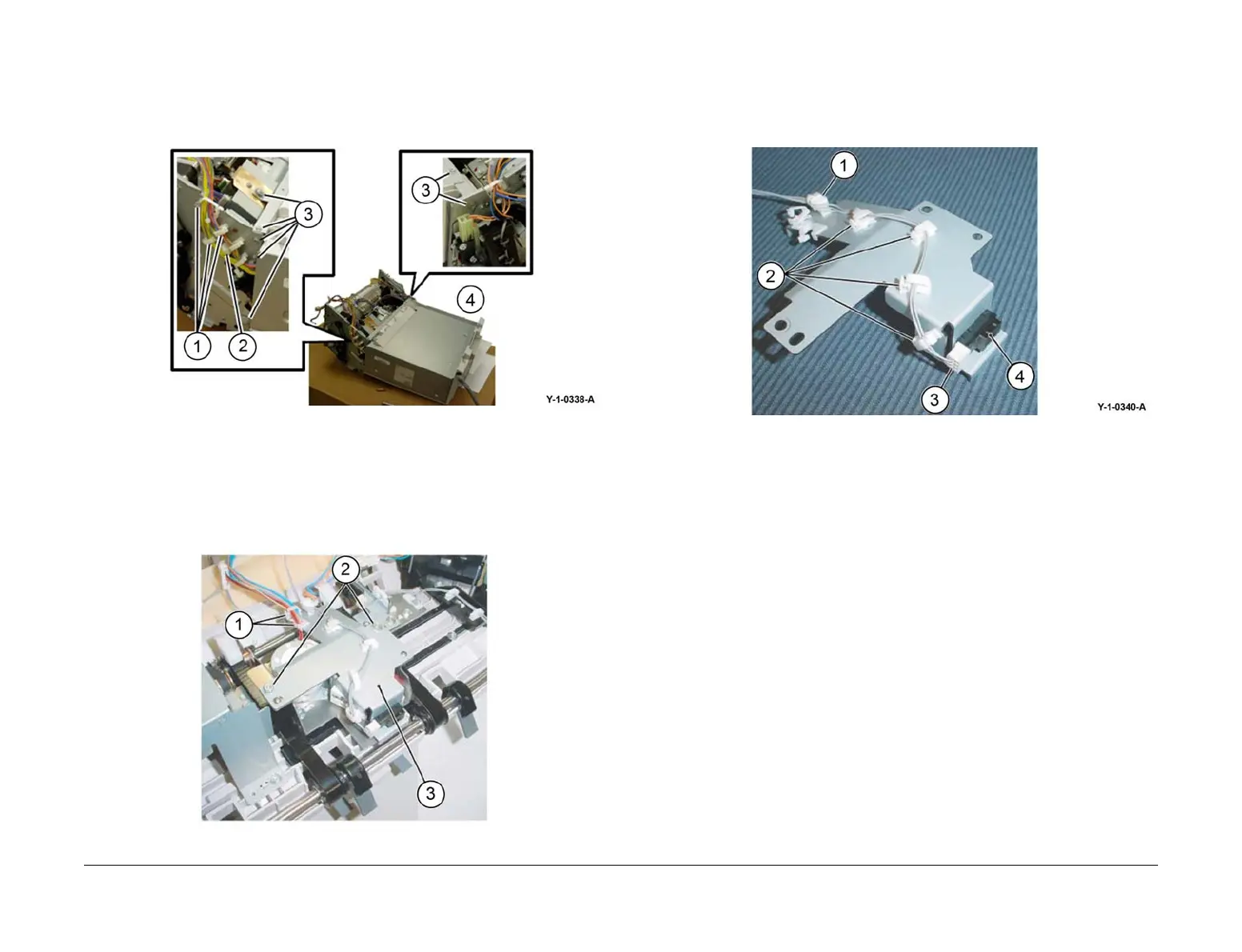

8. Remove the stacker tray, Figure 3:
a. Release the harness from the five clamps (1).
b. Disconnect the connector (2).
c. Remove seven screws (3).
d. Remove the stacker tray (4).
Figure 3 Stacker tray removal
9. Remove the bracket assembly, Figure 4:
a. Release the harness from both clamps (1).
b. Remove two screws (2).
c. Remove the bracket assembly (3).
Figure 4 Bracket assembly removal
10. Remove the stack height sensor, Figure 5:
a. Remove the clamp (1).
b. Release the harness from the clamps (2).
c. Disconnect the connector (3).
d. Remove the stack height sensor (4) from the bracket.
Figure 5 Stack height sensor removal
Replacement
The replacement is the reverse of the removal procedure.
