Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Wiring Diagrams
Launch Issue
Wiring Data
Wiring Diagram 1 IOT/IIT ACH

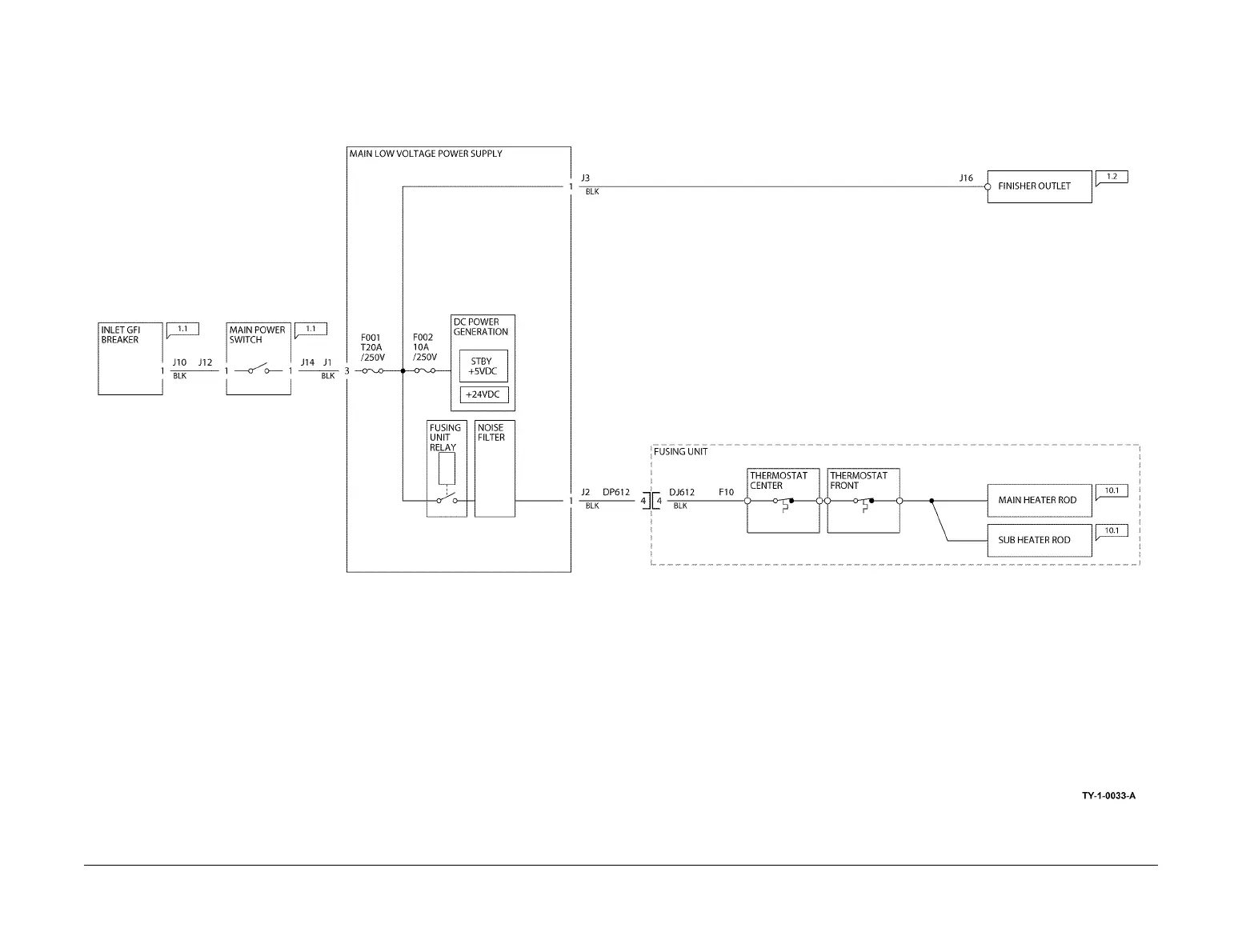

Figure 1 Wiring diagram 1
