April 2017
7-49
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Wiring Diagrams
Wiring Data
Launch Issue

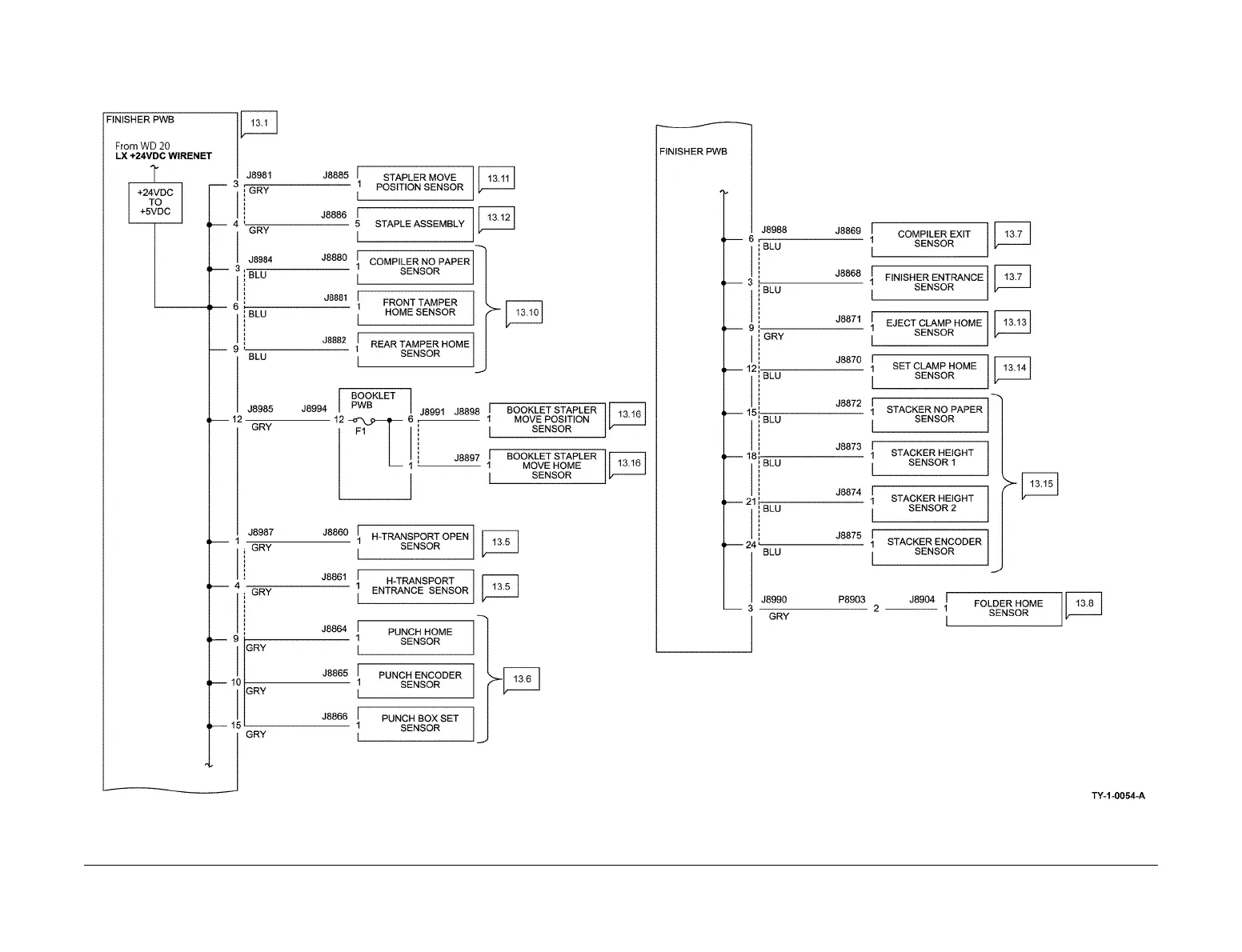

Wiring Diagram 22 Office Finisher LX +5VDC
Figure 22 Wiring diagram 22
