Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Wiring Diagrams
Wiring Data
Launch Issue
Wiring Diagram 24 Office Finisher LX DC RTN

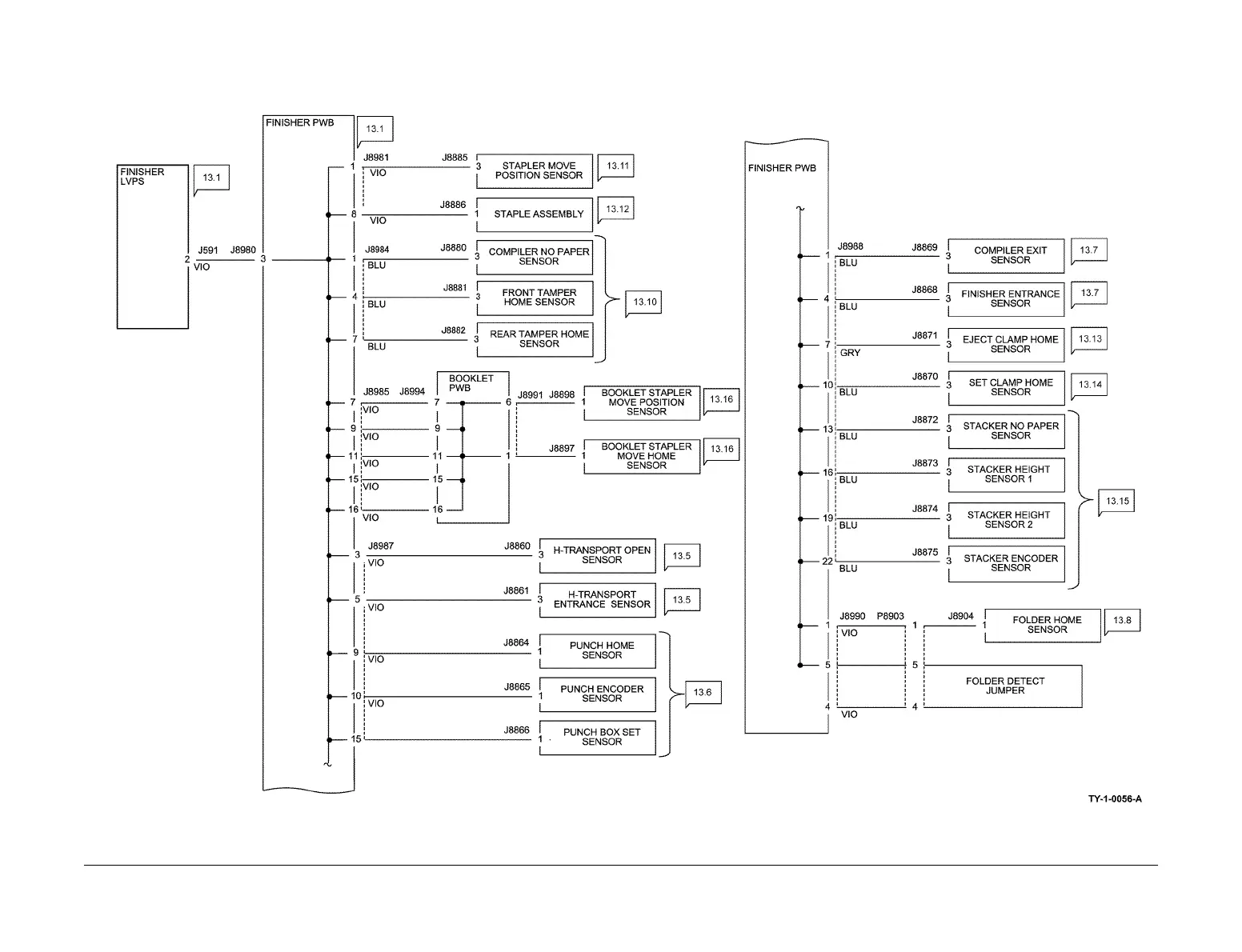

Figure 24 Wiring diagram 24
