Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Wiring Data
Launch Issue

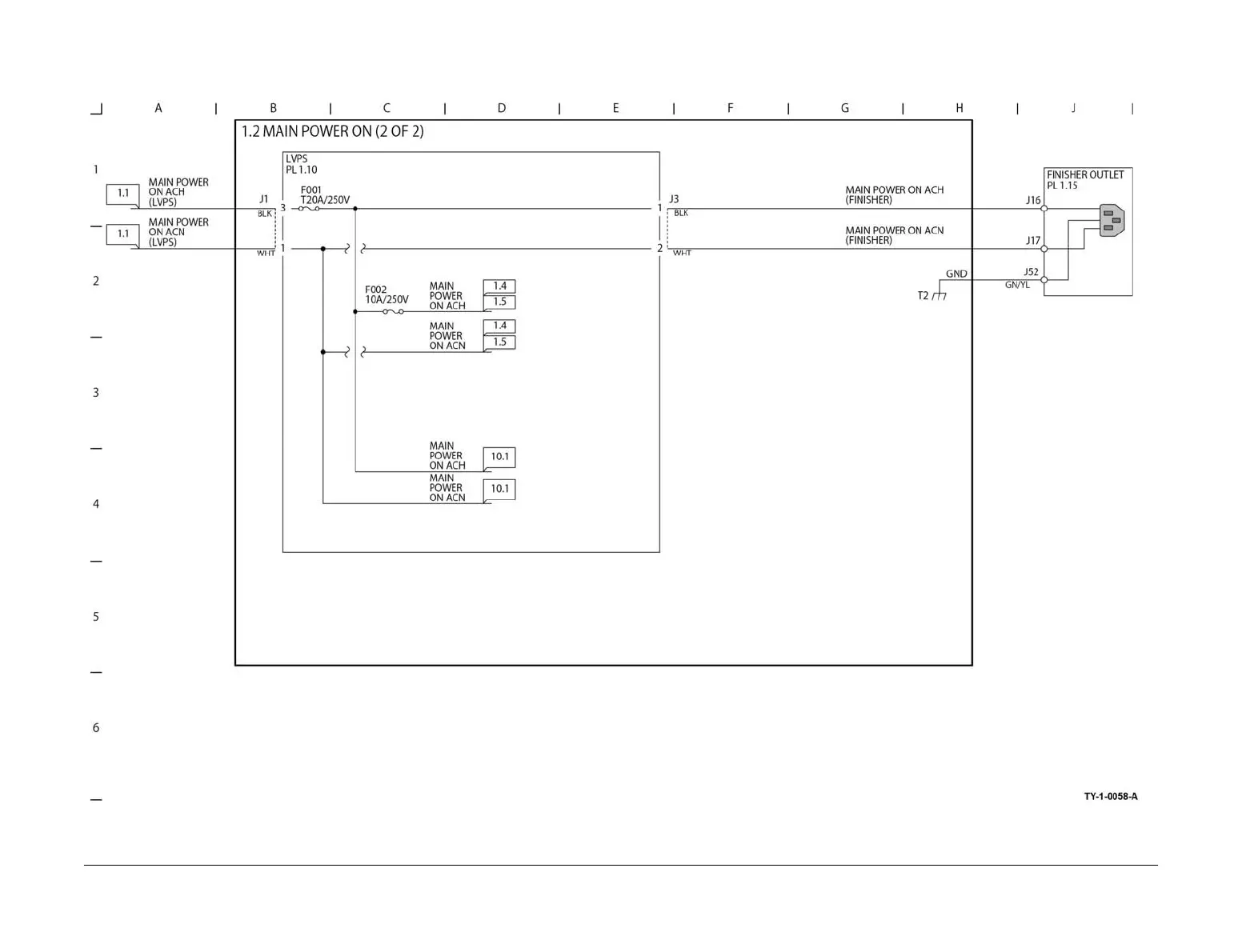

BSD 1.2 Main Power On (2 of 2)
Figure 3 BSD 1.2
