April 2017
7-123
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Block Schematic Diagrams (BSDs)
Wiring Data
Launch Issue

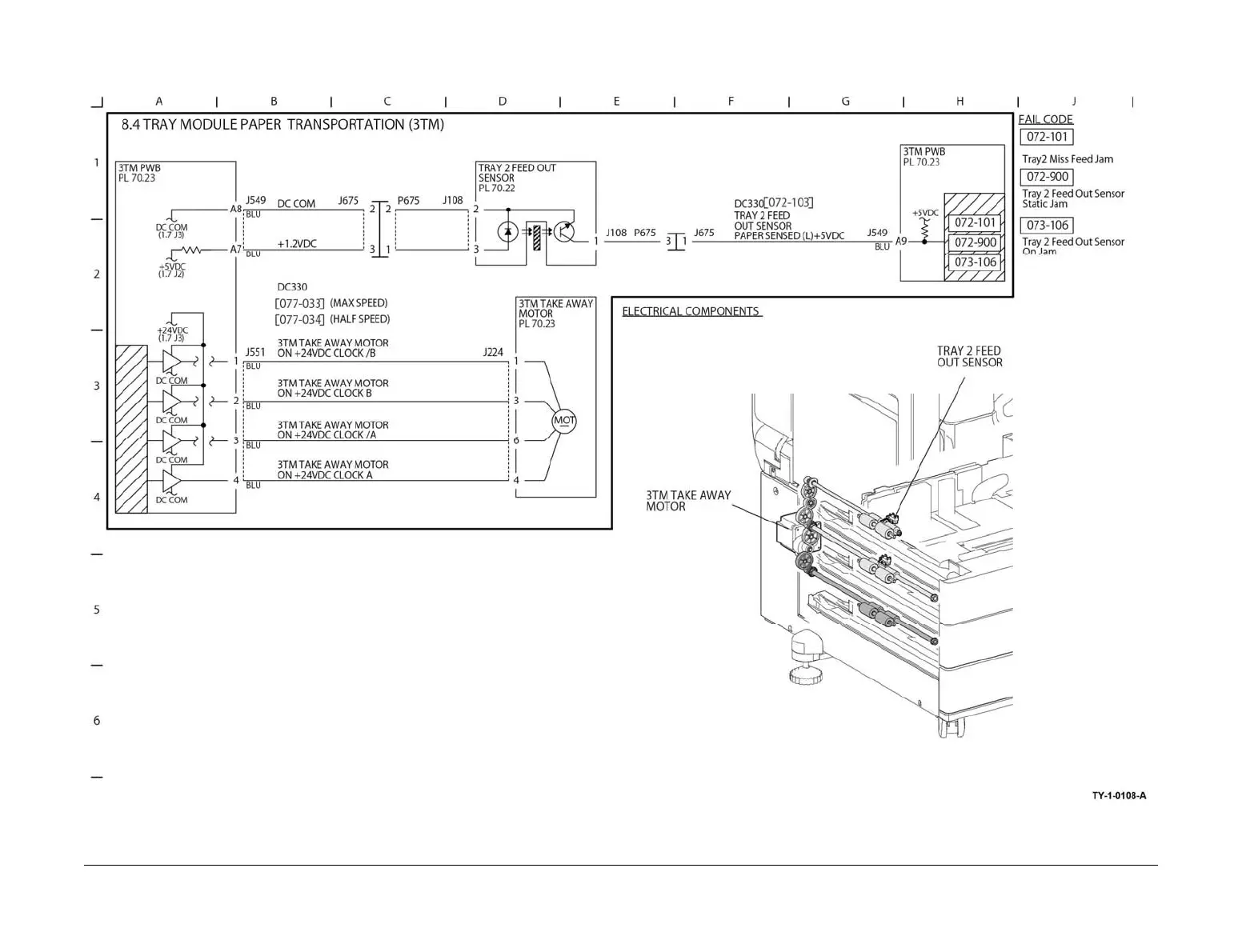

BSD 8.4 Tray Module Paper Transportation (3TM)
Figure 67 BSD 8.4
