Xerox VersaLink B7030 Service Manual

April 2017
8-8
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Left Lower Cover Interlock
The left lower cover switch is supplied with +5VDC power from the drive PWB via the tray mod-
ule PWB, which also monitors its status.
When the left lower cover switch opens the machine declares a fault tray module cover open,
inhibits printing, and displays a message to close the cover.
The interlock is in a similar position in the optional paper input modules listed here. Figure 6.
shows the TTM as an example. Refer to the parts list for more information.
• TTM PL 70.95 Item 18.
•1TM PL 80.15 Item 3.
•3TM PL 80.30 Item 8.
Refer to BSD 1.9 Power Interlock Switching (2 of 3)

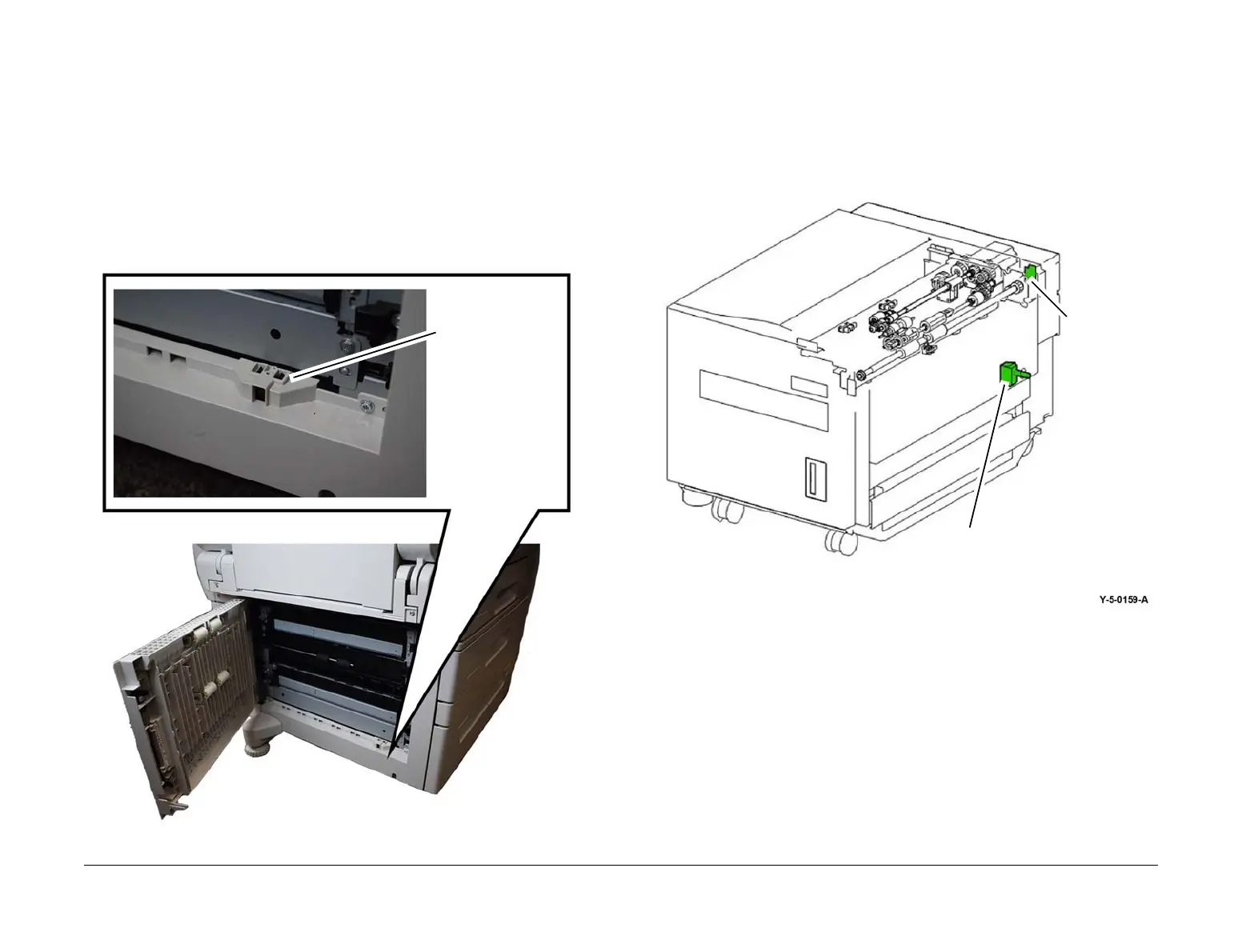

Figure 6 Left lower cover interlock
HCF Interlocks
The high capacity feeder is fitted with 2 interlocks:
• Top cover interlock, PL 70.55 Item 26.
• HCF slide out switch, PL 70.60 Item 8.
Refer to BSD 1.11 DC Power Distribution - HCF and Figure 7.
Figure 7 HCF interlocks
Left lower cover
interlock recess
HCF slide out switch
Top cover
interlock

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
