Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
The ESS PWB is contained in a chassis. The chassis contains the ESS PWB and HDD, along
with mechanical parts and harnesses. Refer to Figure 1.
Refer to:
• BSD 3.1 PWB Communications (ESS PWB to Drive PWB)
• BSD 3.2 PWB Communications (ESS PWB/Drive PWB to STM)
• BSD 3.3 PWB Communications (ESS PWB/Drive PWB to 1TM/3TM)TTM
• BSD 3.4 PWB Communications (ESS PWB to UI)
• BSD 3.5 PWB Communications (ESS PWB to DADF)
• BSD 3.6 PWB Communications (ESS PWB/Drive PWB to Finisher)
• BSD 3.7 Accessory
• BSD 3.8 Electric Billing
• BSD 3.9 ESS

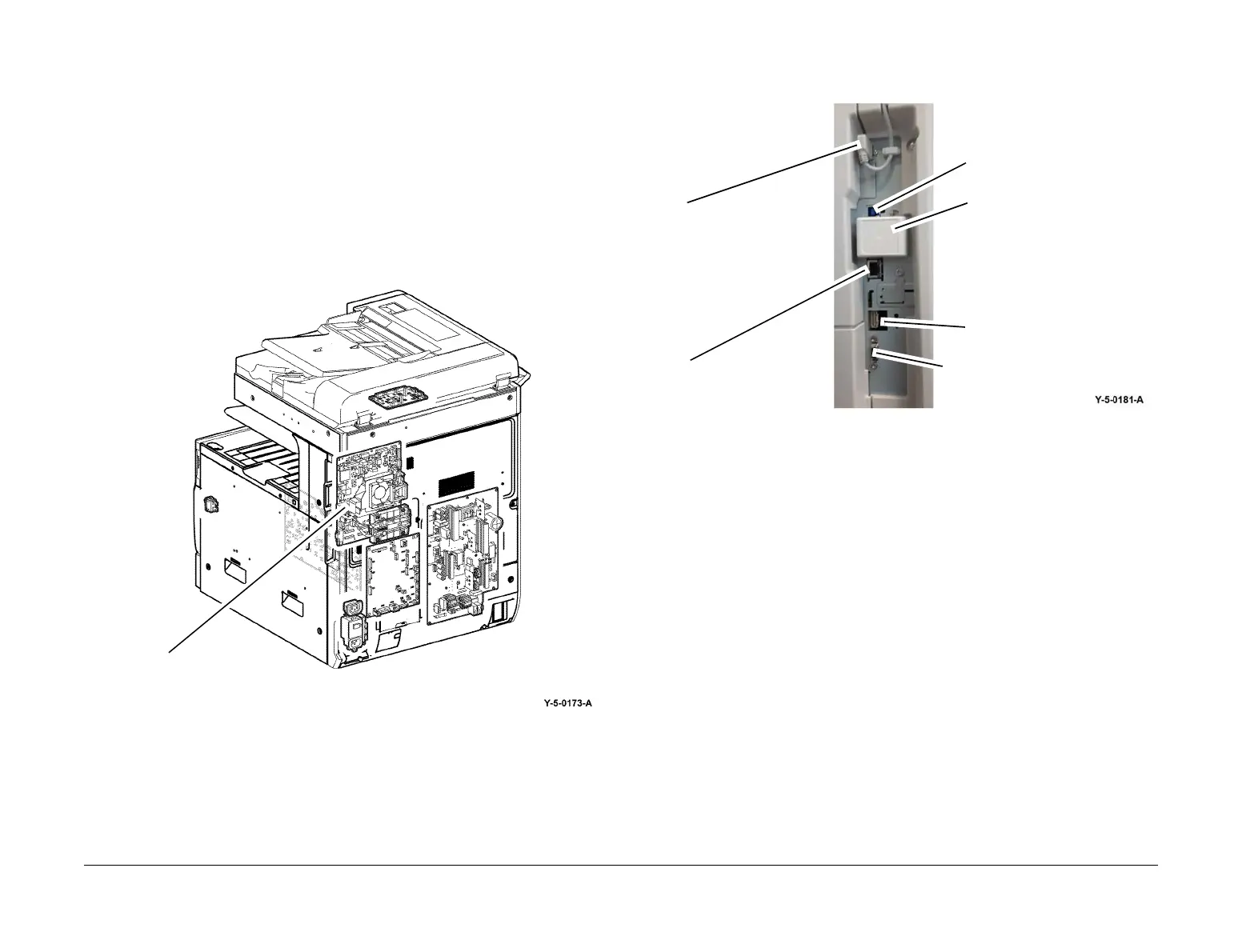

Figure 1 ESS PWB
Controller Interface
The functions of the connectors along the side of the ESS PWB are shown in Figure 2.
Figure 2 Controller interface
ESS PWB
HDMI
Accessory
WiFi dongle
USB
Network
A/B type USB port
