As drive is provided to the nudger roll lowers just enough to contact and pick up the media. The
paper stopper is unlocked and media feed enabled, Figure 19.
Figure 19 Bypass feed components
High Capacity Feeder (HCF) (Tray 6)
The HCF feature (optional) is used as a high capacity media supply and is primarily loaded
with 8.5x11 or A4 paper. The capacity of the HCF is 2000 sheets of 80gsm (20lb) paper, Figure
4.
For detailed media information refer to GP 15 Paper and Media Size Specifications.
High Capacity Feeder: Sensors and Interlocks
The HCF side out switch detects if the HCF is in the home position (against the left side of the
device) following jam clearance. During jam clearance, the operator may need to slide the HCF
to the left, away from the machine, Figure 20.
Refer to Figure 20. The HCF top cover interlock switch cuts +24VDC power to the K1 relay on
the HCF PWB, PL 70.60 Item 9, when opened, turning off the HCF feed/lift motor, PL 80.60
Item 23, and the takeaway motor, PL 70.60 Item 7.
Refer to Figure 21. The HCF tray in sensor detects that the HCF drawer is in the operating
position. This prevents the HCF feed/lift motor, PL 80.60 Item 23, from operating with the
drawer open.

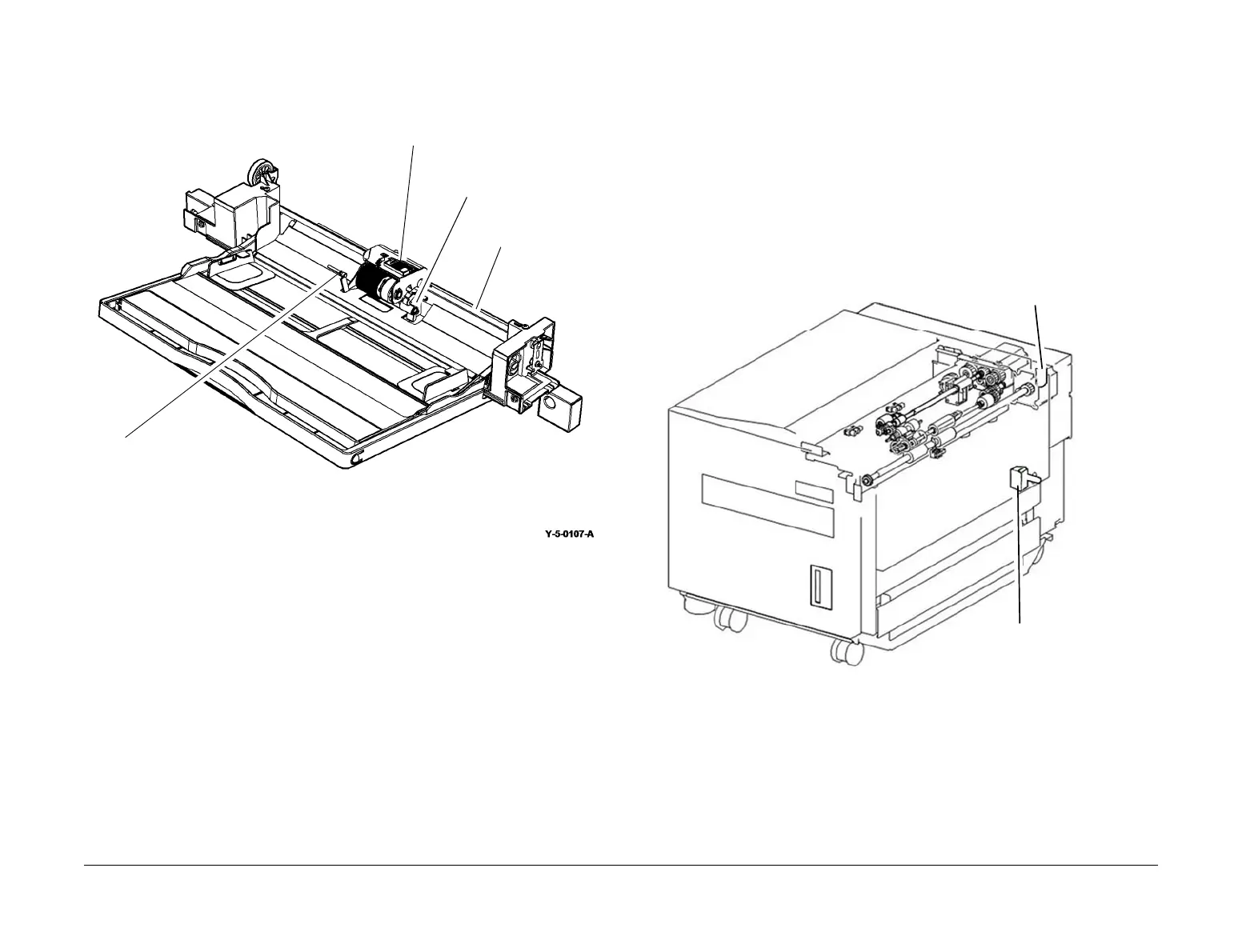

Figure 20 HCF Interlocks
Feed roll shaft
Feed Roll
Paper stopper
No paper sensor actuator
HCF top cover interlock switch
HCF side out switch
