Xerox VersaLink B7030 Service Manual

April 2017
8-60
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview

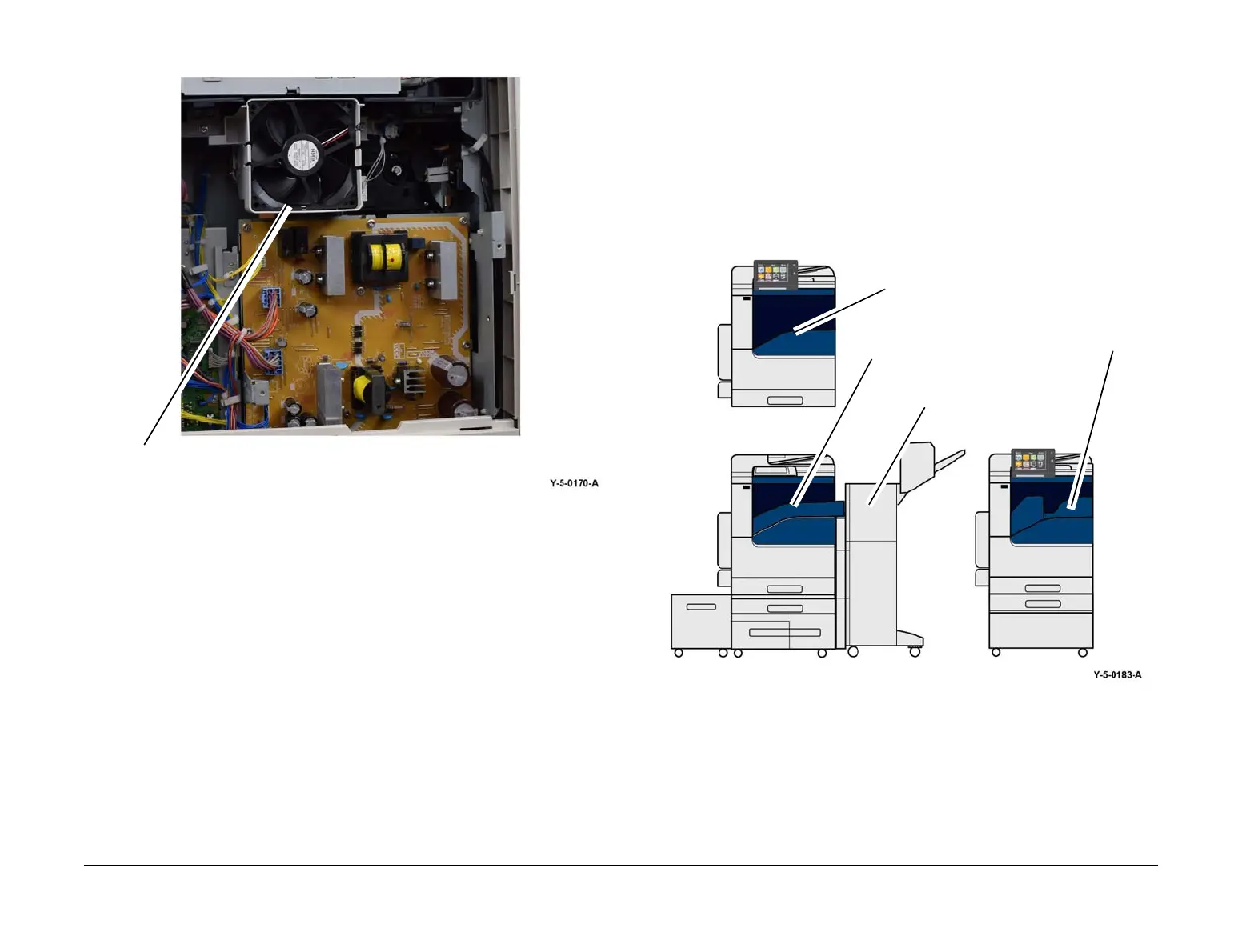

Figure 9 Fuser cooling fan
Print Transportation Overview
Overview
Prints exiting the fuser may go to any one of the following:
• To the output catch tray (exit 1) as single sheets or offset stacks.
• The integrated office finisher (exit 1).
• The horizontal transport (exit 1) to the office finisher LX.
• To the centre catch tray (exit 2) as single sheets or offset stacks.
• To the inverter (exit 2) for side two registration and printing.
Refer to Figure 10.
Figure 10 Finisher configurations
Fuser fan
Offset catch tray
Horizontal transport
Office finisher LX
Integrated finishe
r

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
