Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Refer to Figure 2 for paper sizes for the integrated office finisher.

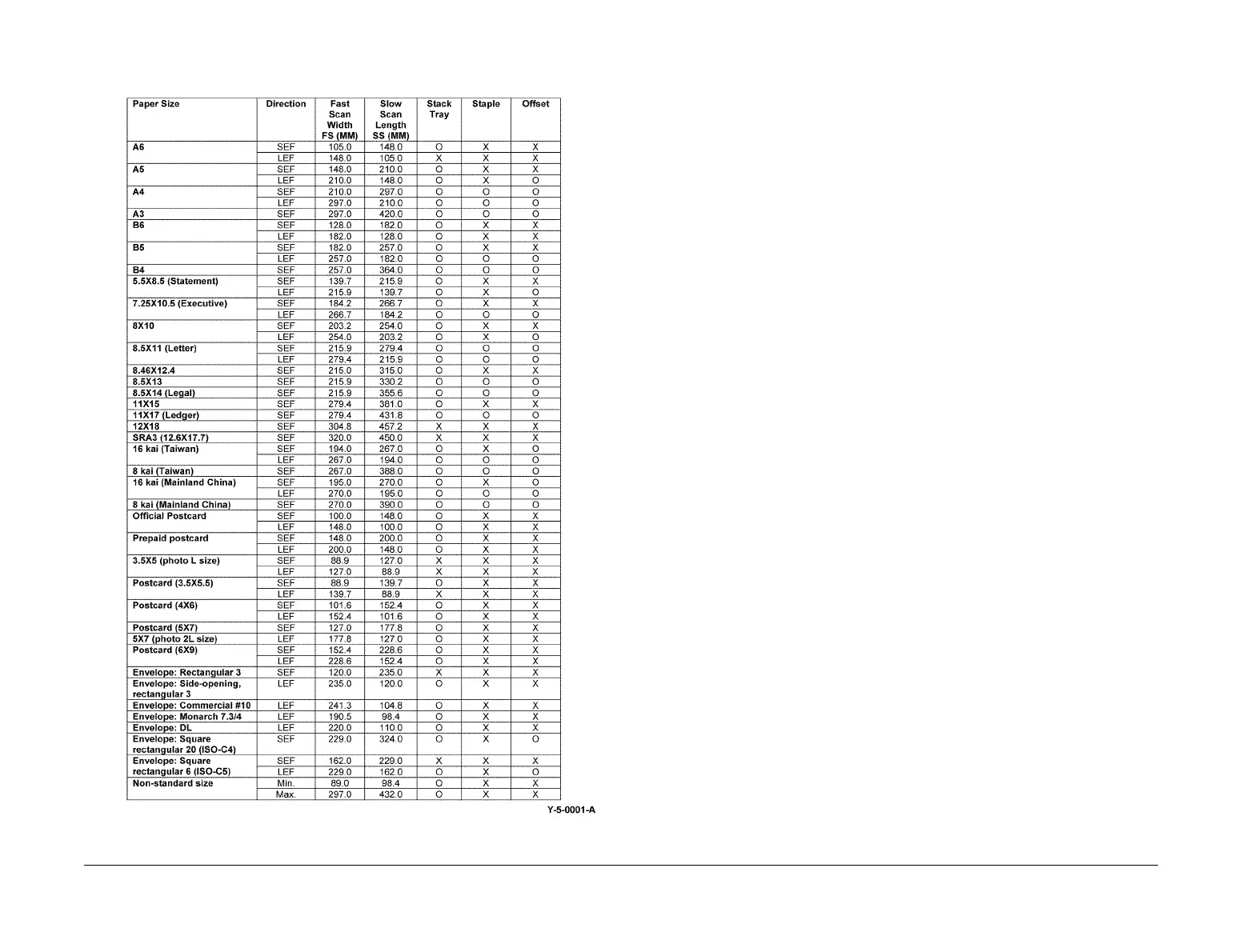

Figure 2 Paper sizes for the integrated office finisher
Stack Tray Capacity
Quantity of sheets of paper to be held:
• Paper with a lead edge length of 216mm or less: 500
• Paper with a lead edge length of more than 216mm: 250
• Mix stack: 250
Mix stack refers to the following cases:
• A sheet of paper stacked is longer than its previous one both in lead edge length and in
width.
• The size of stacked paper is unknown.
• A stack of paper whose minimum width is less than 279.4mm is different from its previous
stack in staple mode.
NOTE: If 150 or more small-sized sheets of paper are stacked and then paper with a lead
edge length of 360mm or more is output, it may be stacked with its lead edge curled.
Quantity of sets of stapled sheets:
• The maximum quantity of stapled sheets of paper to be stacked can be changed in NVM.
(30 to 100 sets)
NOTE: In the case of a stack of ten or fewer sheets of paper, the stack tray may be judged as
having no paper.
Power and Control
The finisher does not have its own power supply. It receives +24VDC from the IOT and controls
power supply in the finisher as shown.
