Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Tamper Major Components
Front tamper home sensor - This sensor detects the front tamper position. High (blocked) =
at home
Rear tamper ho me sensor - This sensor detects the rear tamper position. High (blocked) = at
home
Front tamper motor - This stepper motor moves the front tamper. When the motor rotates for-
ward (CW), the front tamper moves toward the rear of the compile tray.
Rear tamper motor - This stepper motor moves the rear tamper. When the motor rotates for-
ward (CW), the rear tamper moves toward the rear of the compile tray.
Refer to Figure 5.

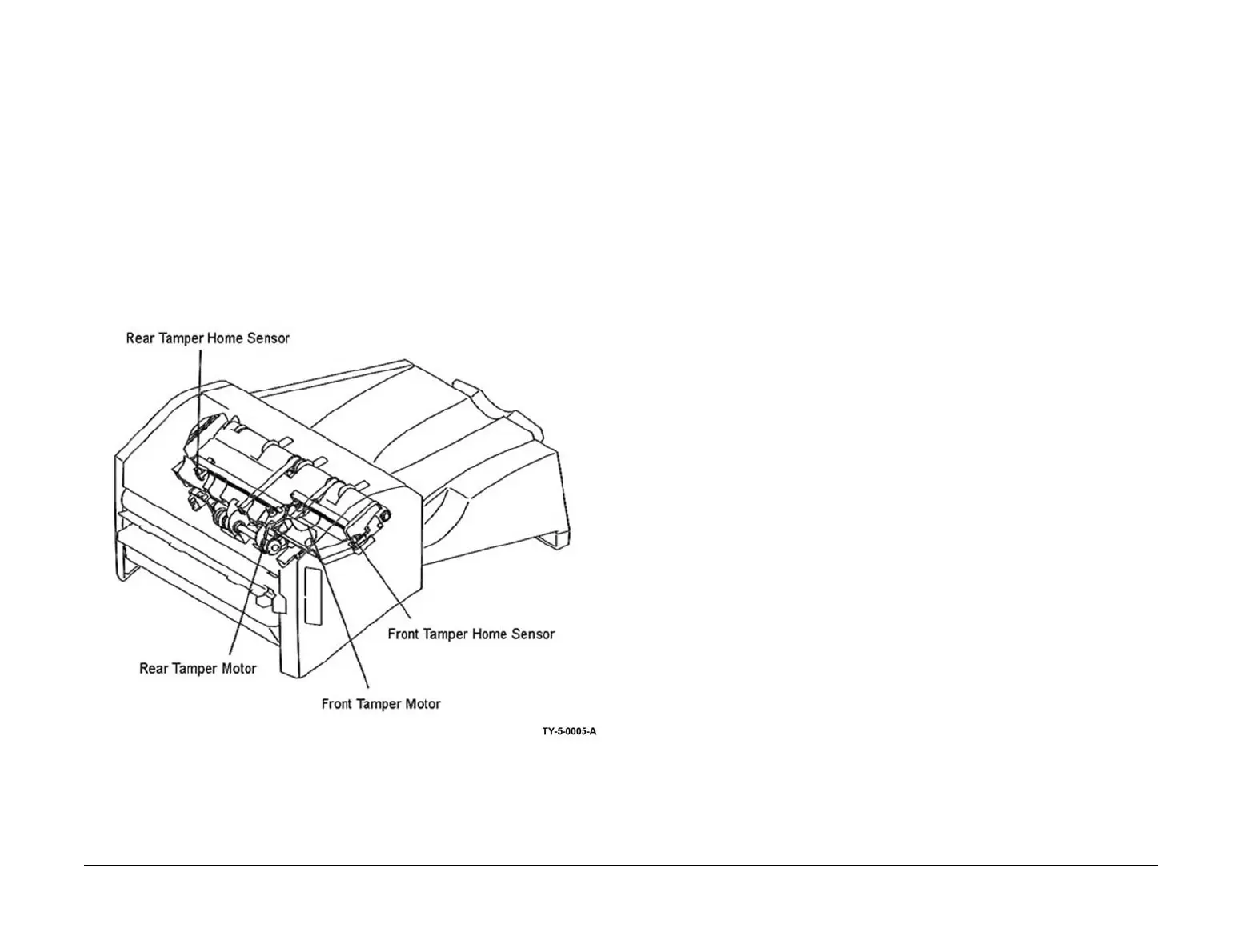

Figure 5 Tamper major components
