Xerox VersaLink B7030 Service Manual

April 2017
8-71
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Stapler Major Components

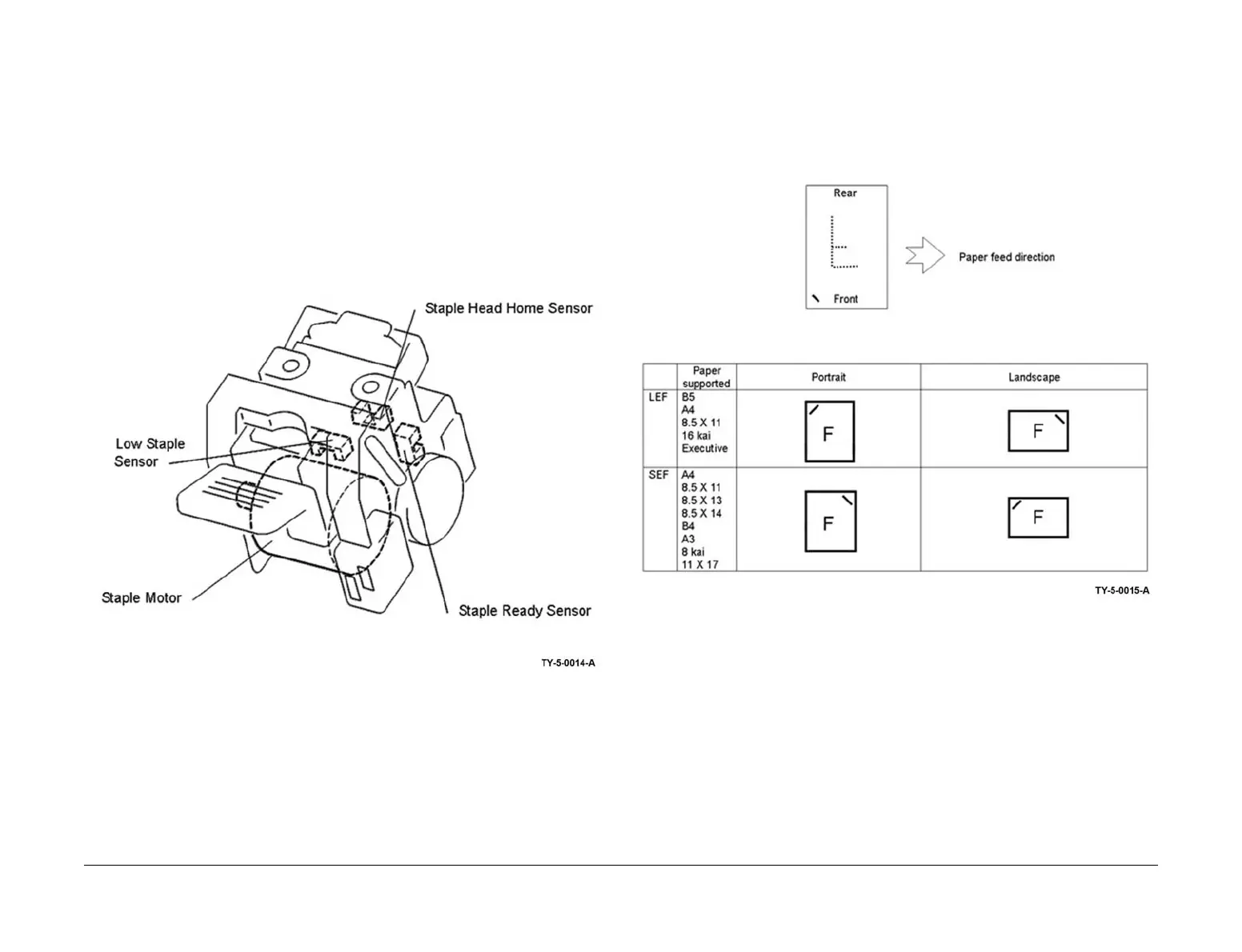

Refer to Figure 14. The major Stapler components are:
• Staple Head Home Sensor – The home sensor detects that the staple head is at the
home position.
• Staple Motor - This DC motor drives the staple head.
• Low Staple Sensor - This photo sensor detects the presence of the staple cartridge and
the quantity of staples that remain.
• Staple Ready Sensor - This photo sensor detects that a staple has reached the staple
head.
Figure 14 Stapler major components
Stapling Positions
Sheets of paper in the compile tray are stapled with only a single staple on the front corner.
Stapling positions relative to a page placed in the document handler or placed on the platen
glass are different for LEF paper and SEF paper, as shown. Refer to Figure 15.
Figure 15 Stapling positions

Xerox VersaLink B7030 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 kbps
Duplex Printing	Automatic
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
Control Panel	7-inch color touchscreen
Memory	2 GB
Print Speed	30 ppm
Supported Media Sizes	A4, A5, A6, B5, B6, Letter, Legal, Executive
Connectivity	USB, Ethernet, Wi-Fi
Processor	1 GHz
Scan Speed	Up to 55 ipm
