Interlocks
Finisher LX has two Interlocks which disconnect the + 24V supply when deactuated. These
are:
• Eject Cover Switch - triggered when the eject cover is raised. Refer to Figure 10.
• Front Door Interlock - triggered when the front cover is opened. Refer to Figure 11.

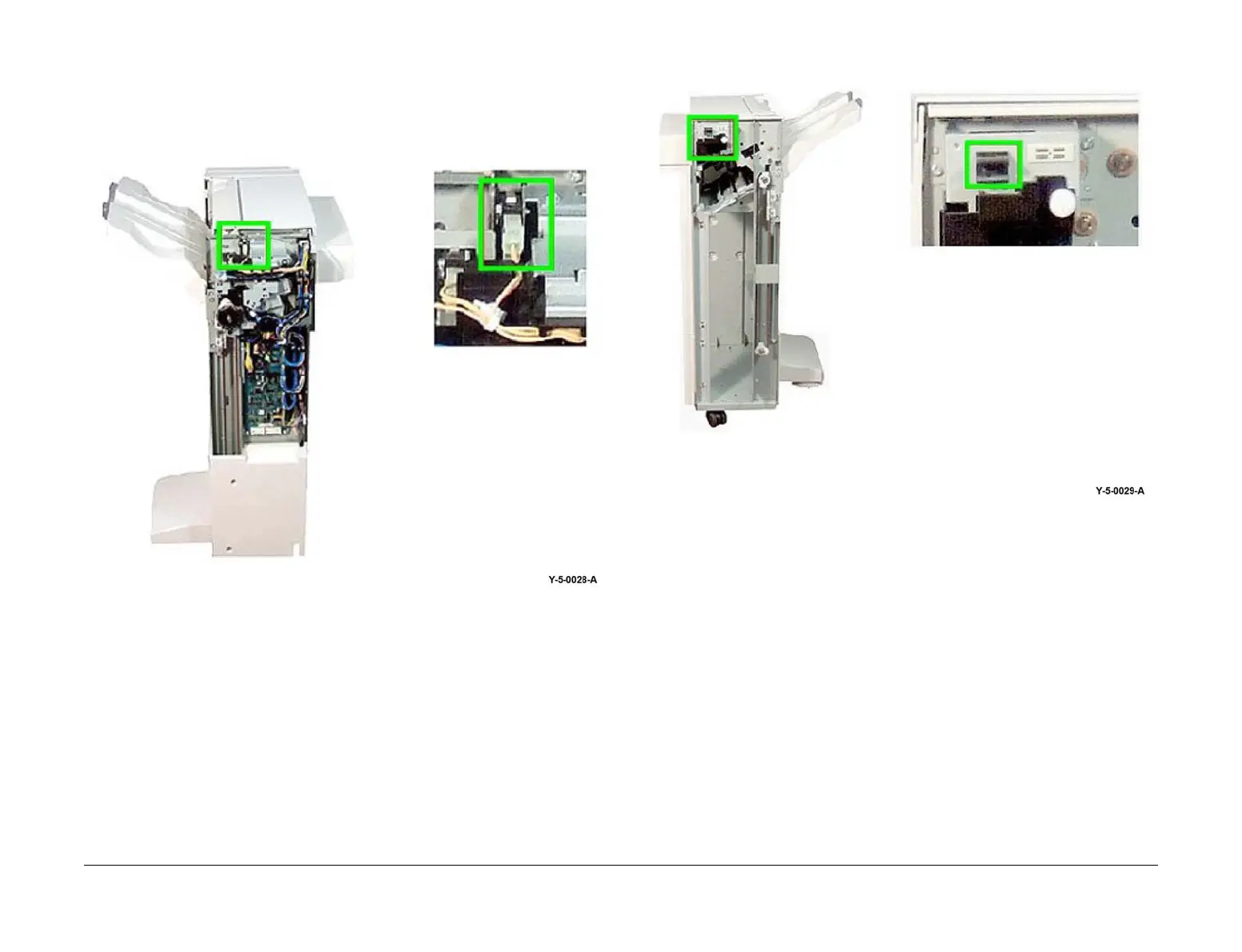

Figure 10 Eject cover switch
Figure 11 Front door interlock
