April 2017
4-7
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 1.2
Repairs and Adjustments
Launch Issue

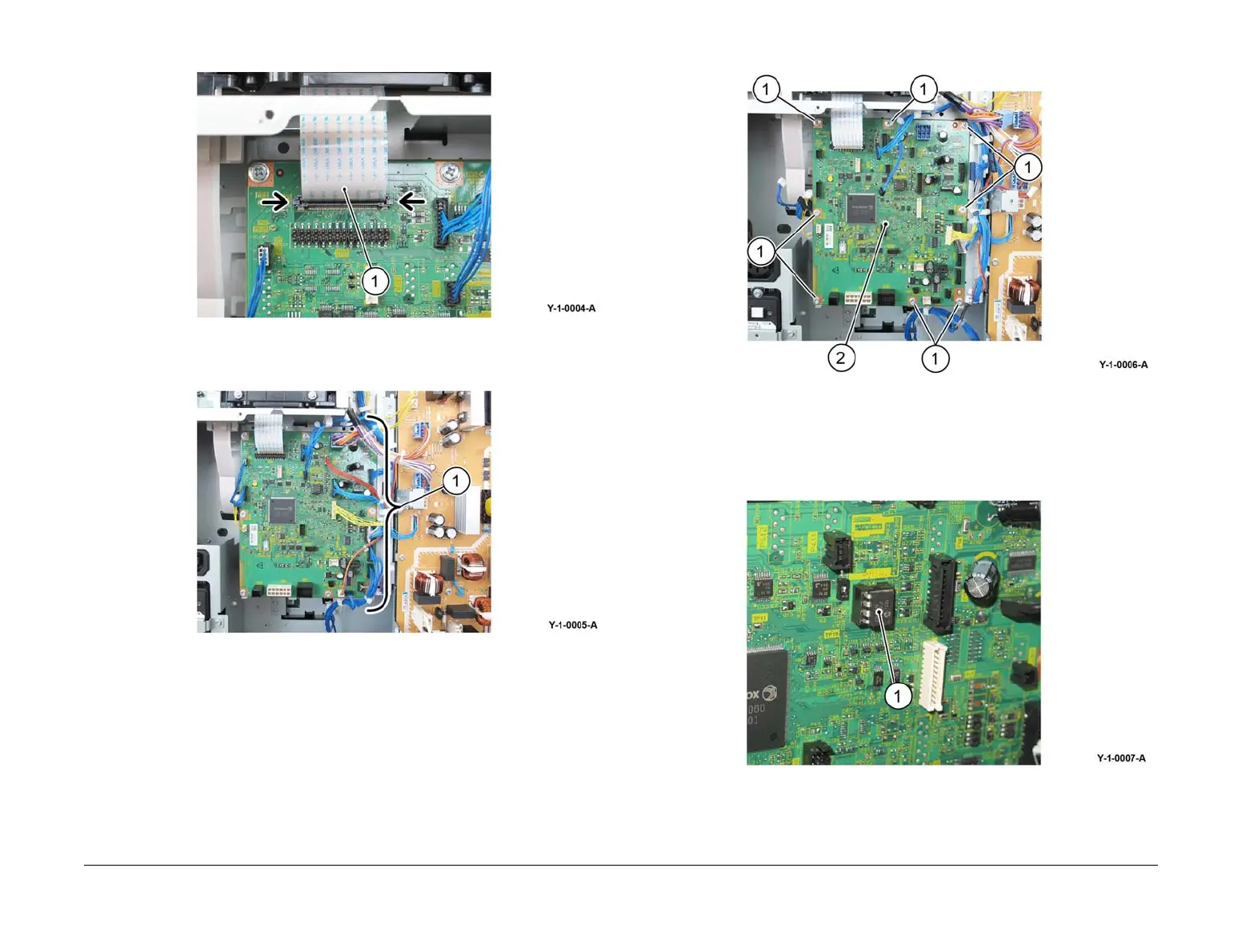

4. Carefully disconnect the ribbon cable (1) by releasing the side clips, Figure 2.
Figure 2 Ribbon cable
5. Disconnect all connectors from the drive PWB (1), Figure 3.
Figure 3 Connectors
6. Remove 8 screws (1), then the drive PWB (2), Figure 4.
Figure 4 Drive PWB removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If a new drive PWB is to be installed, remove the EEPROM (1) from the old drive PWB,
then install it onto the new drive PWB, Figure 5.
Figure 5 EEPROM
To Next Page
