Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 2.1
Launch Issue
Repairs and Adjustments
7. Remove the UI assembly, Figure 2:
a. Disconnect both connectors (1).
b. Remove 4 screws (2), then the UI assembly (3).

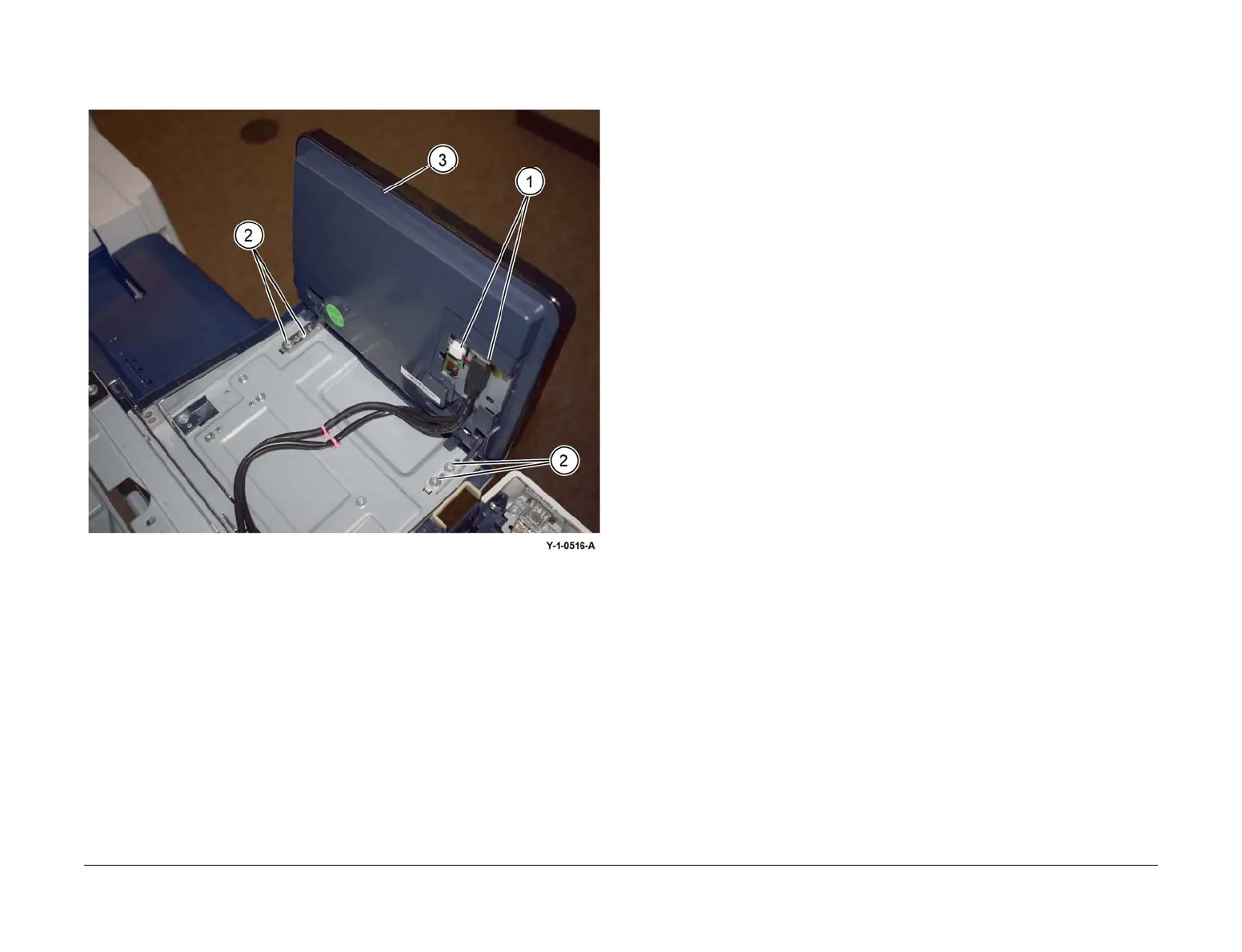

Figure 2 UI assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Check the machines current software level against the software level recorded prior to
installation of the new user interface assembly. If necessary, reload the software, GP 4.
