April 2017
4-14
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 3.1
Launch Issue
Repairs and Adjustments

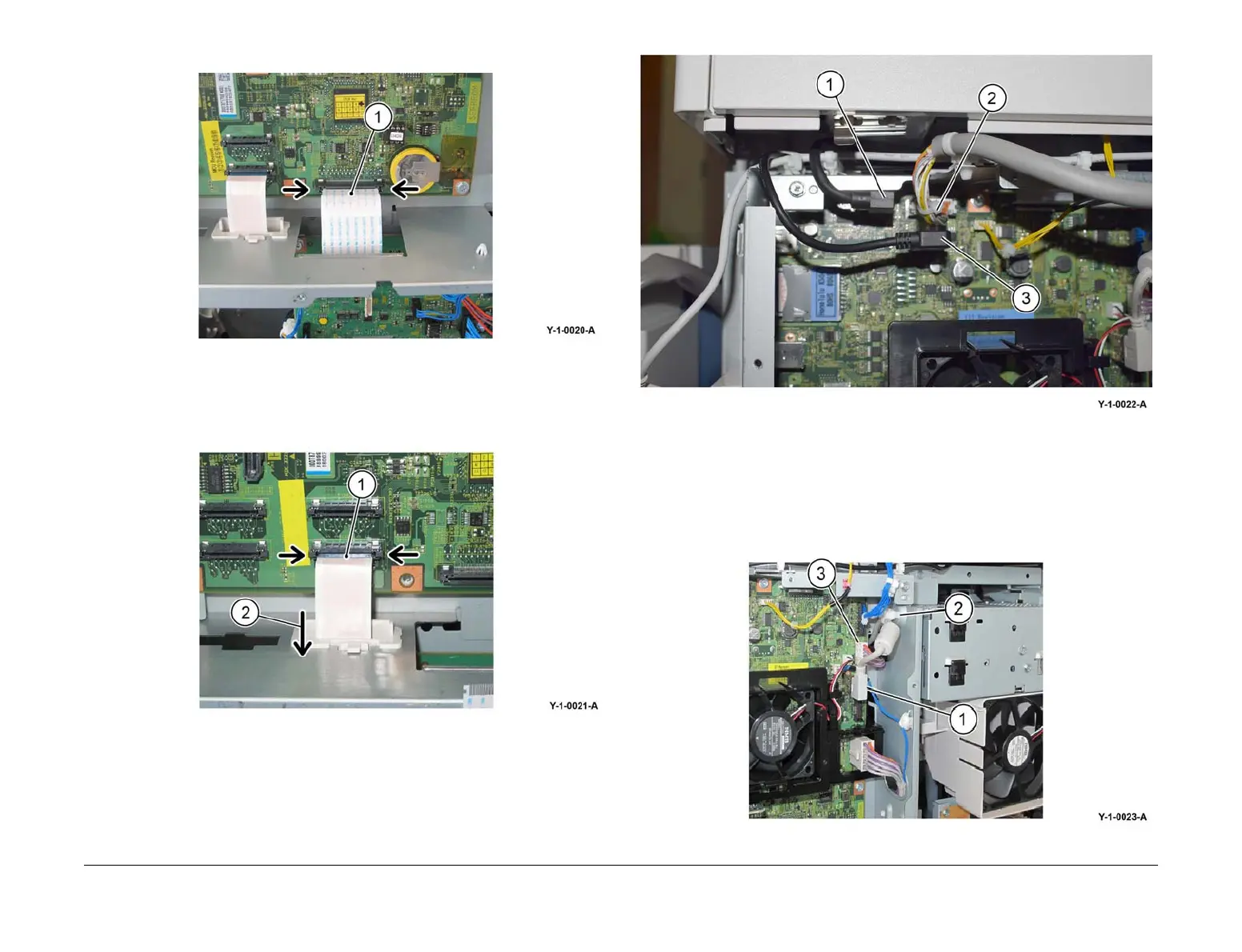

5. Carefully disconnect the ribbon cable (1) by releasing the side clips, Figure 4.
Figure 4 Ribbon cable
6. Disconnect the FFC cable, Figure 5:
a. Carefully disconnect the FFC cable (1) by releasing the side clips.
b. Pull down the FFC cable (2).
Figure 5 FFC cable
7. Disconnect the USB, DADF I/F and UI cables, Figure 6:
a. Disconnect the USB cable (1).
b. Disconnect the DADF I/F cable. (2).
c. Disconnect the UI cable (3).
Figure 6 Cables
8. If the machine has a fax installed, disconnect the connection between the connector and
the USB cable, Figure 7:
a. Disconnect the USB cable (1).
b. Release the USB cable clamp (2).
c. Disconnect the connector (3).
Figure 7 USB cable
To Next Page
