April 2017
4-29
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.4
Repairs and Adjustments
Launch Issue

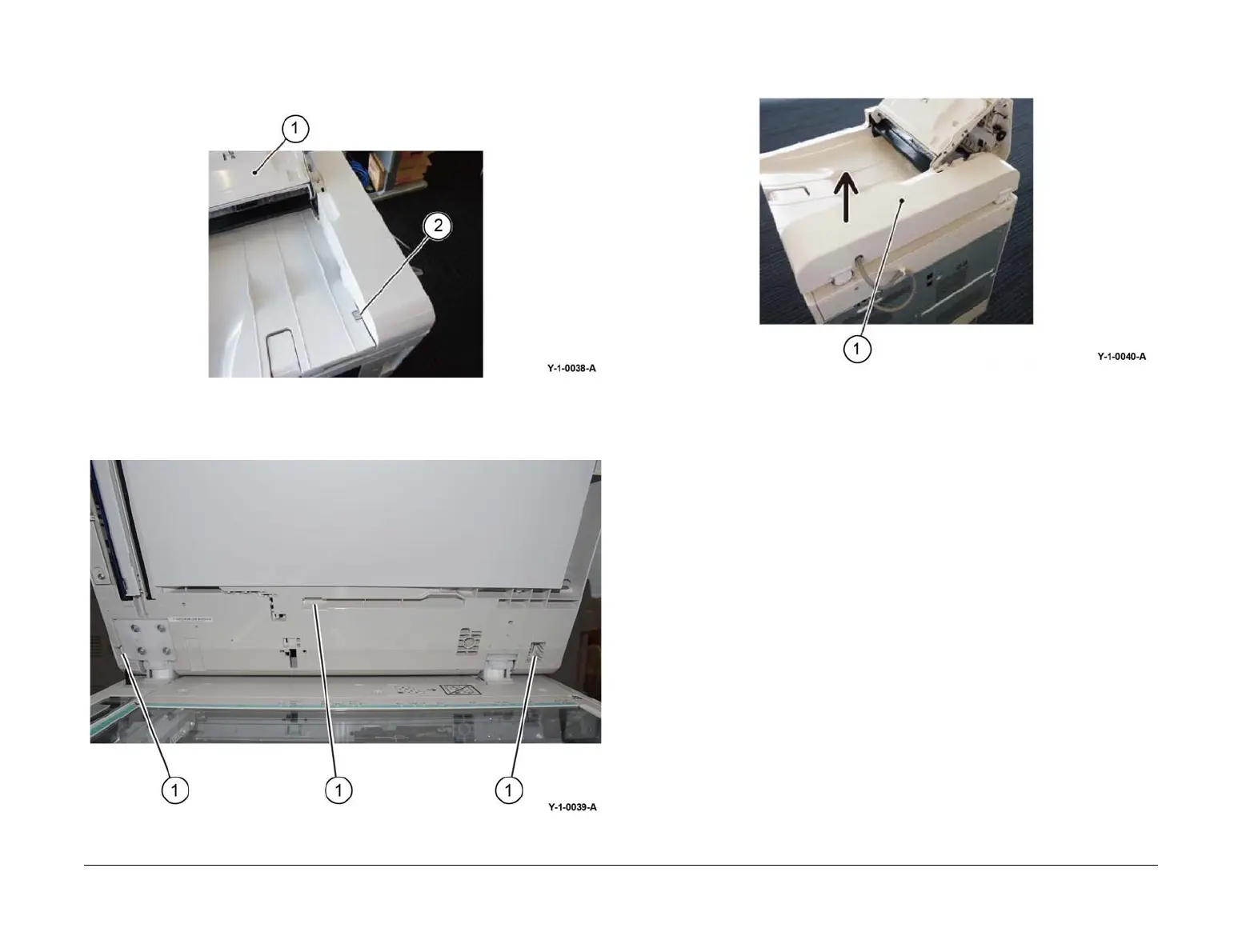

2. Remove the right screw that secures the DADF rear cover, Figure 2:
a. Raise the document tray (1).
b. Remove the right screw (2).
Figure 2 Right screw removal
3. Release the three hooks (1) that secure the DADF rear cover, Figure 3.
Figure 3 Hooks
4. Remove the DADF rear cover in the direction of the arrow, Figure 4.
Figure 4 Rear cover removal
Replacement
The replacement is the reverse of the removal procedure.
To Next Page
