Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.2
Repairs and Adjustments
Launch Issue

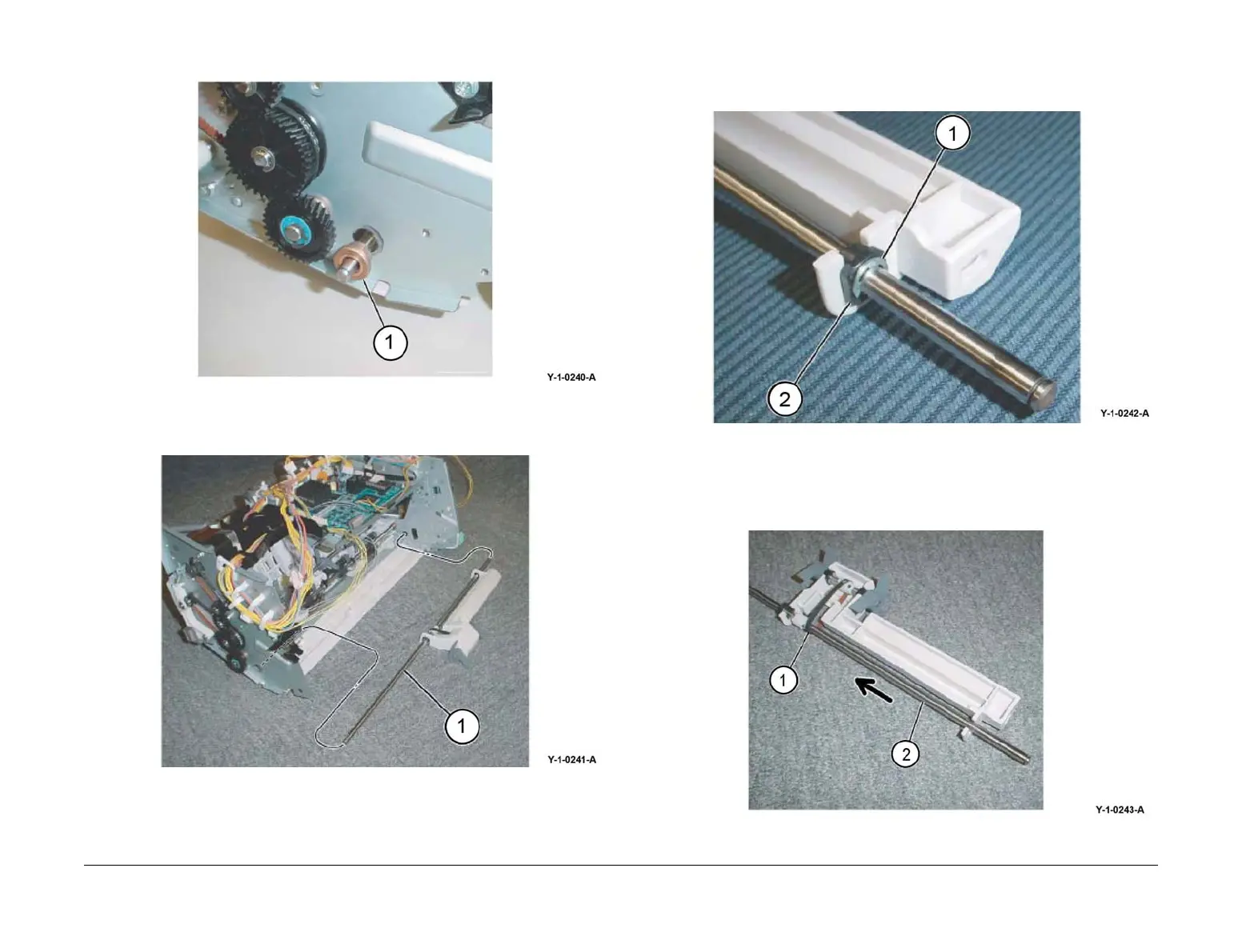

6. Remove the rear bearing (1), Figure 4.
Figure 4 Rear bearing removal
7. Remove the paddle link assembly (1), Figure 5.
Figure 5 Paddle link assembly removal
8. Remove the bearing, Figure 6:
a. Remove the E-clip (1).
b. Remove the bearing (2).
Figure 6 Bearing removal
9. Remove the shaft assembly, Figure 7:
a. Remove the paddle belt (1) from the pulley.
b. Remove the shaft assembly (2) in the direction of the arrow.
Figure 7 Shaft assembly removal
